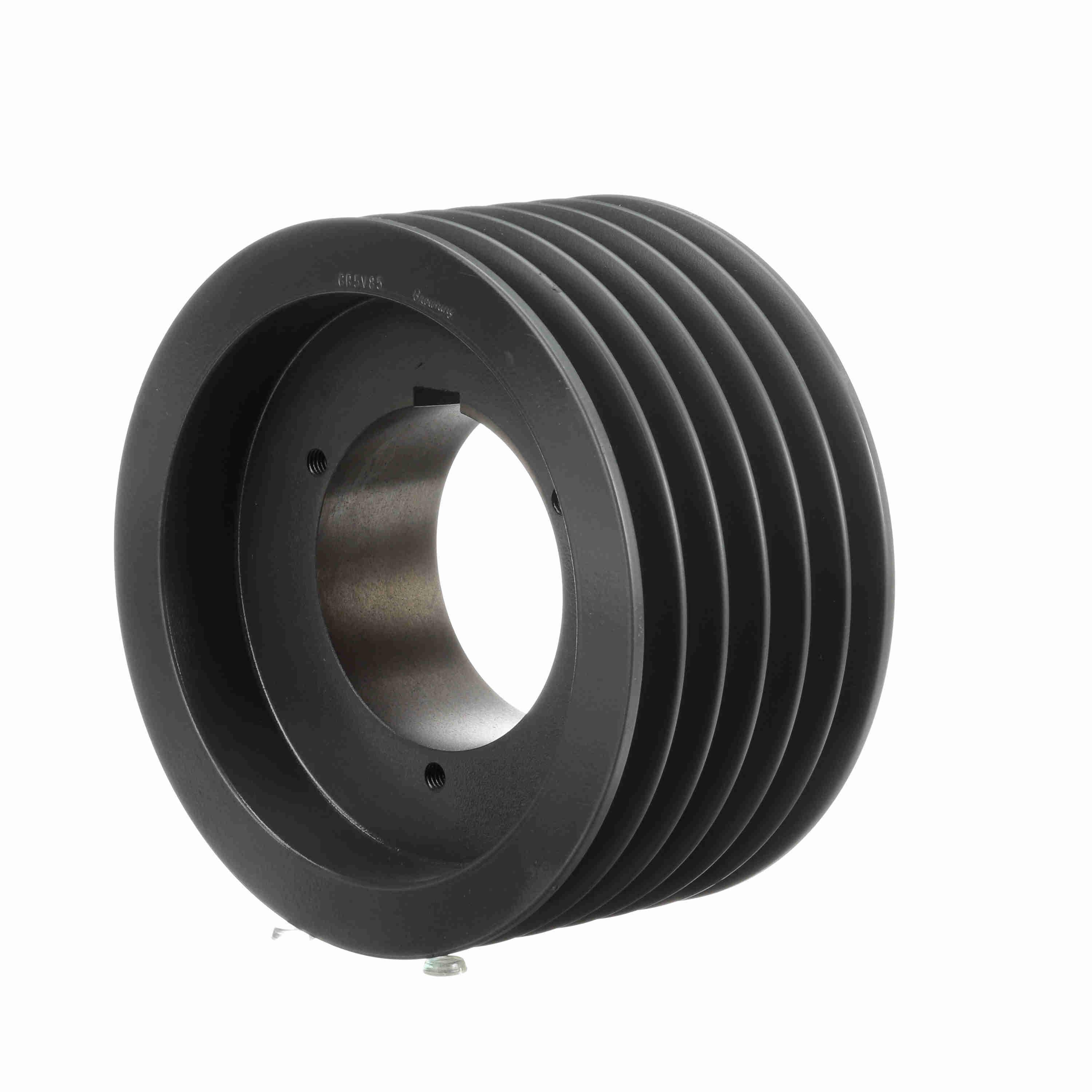

BROWNING 1061720 6R5V85 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron
Get it by Monday, Dec 22
€734.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 4 7/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8 2/5" |
| Min. Pitch Dia. | 8 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 8 1/2" |
| Overall Length | 4 7/16" |
| Pitch Dia. | 8 2/5" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
| Weight | 12.39 Kg |
Shipping Info:
| Ship weight (kg) | 12.4 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 11.28 |
| Ship width (cm) | 21.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1061936 | 9 3/4" | 1.13" to 3.75" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | 4 7/16" | €836.96 | |
 |
1061654 | 8" | 1.13" to 3.75" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | 4 7/16" | €693.41 | |
 |
1062611 | 25" | 1.69" to 4.25" | 5 5/16" | Type 13 Arm | Split Taper | Cast Iron | 4 7/16" | €2,244.50 | |
 |
1062298 | 13 1/5" | 1.69" to 4.25" | 5 5/16" | Type 13 Arm | Split Taper | Cast Iron | 4 7/16" | €1,157.94 | |
 |
1062009 | 10.3" | 1.13" to 3.75" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | 4 7/16" | €723.46 | |
 |
1061795 | 9" | 1.13" to 3.75" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | 4 7/16" | €809.66 | |
 |
1062074 | 10.9" | 1.13" to 3.75" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | - | €756.32 |
