Solid Spade Drill Bits

GRAINGER -

Solid Spade Drill Bits

A

B

Style	Model	Max. Drilling Depth	Flute Length	Decimal Equivalent	Shank Dia.	Size	Primary Material Application Iso Code	Depth X Dia. Ratio	Drill Bit Size	Price
A	400-888881	-	-	0.125	Set	-	P	-	-	€246.11
B	400-001002	0.188"	3/16"	0.0313	1/32"	0.031"	H, M, N	6xd	1/32"	€16.36
B	400-001005	0.219"	7/32"	0.0469	3/64"	0.047"	H, M, N	5xd	3/64"	€16.87
B	400-001007	0.312"	5/16"	0.0625	1/16"	0.062"	H, M, N	5xd	1/16"	€27.09
B	400-001011	0.438"	7/16"	0.1094	7/64"	0.109"	H, M, N	4xd	7/64"	€14.98
B	400-001010	0.438"	7/16"	0.0938	3/32"	0.094"	H, M, N	5xd	3/32"	€25.65
B	400-001030	0.562"	9/16"	0.1563	5/32"	0.156"	H, M, N	4xd	5/32"	€34.49
B	400-001031	0.562"	9/16"	0.1719	11/64"	0.172"	H, M, N	3xd	11/64"	€27.85
B	400-001050	0.594"	19/32"	0.2188	7/32"	0.219"	H, M, N	3xd	7/32"	€44.64
B	400-001060	0.688"	11/16"	0.25	1/4"	1/4"	H, M, N	3xd	1/4"	€51.11
B	400-001040	0.688"	11/16"	0.1875	3/16"	0.188"	H, M, N	4xd	3/16"	€40.18
B	400-001090	0.938"	15/16"	0.3438	11/32"	0.344"	H, M, N	3xd	11/32"	€60.29
B	400-001110	1 1/8"	1 1/8"	0.4063	13/32"	0.406"	H, M, N	3xd	13/32"	€75.00
B	400-001100	1 1/8"	1 1/8"	0.375	-	3/8"	H, M, N	3xd	3/8"	€79.54
B	400-001120	1.188"	1 3/16"	0.4375	7/16"	0.438"	H, M, N	3xd	7/16"	€75.01
B	400-001140	1.188"	1 3/16"	0.5	1/2"	1/2"	H, M, N	2xd	1/2"	€92.11
B	400-001130	1.188"	1 3/16"	0.4688	15/32"	0.469"	H, M, S	3xd	15/32"	€92.73
B	400-001020	1/2"	1/2"	0.125	1/8"	1/8"	H, M, N	4xd	1/8"	€28.27
B	400-001021	1/2"	1/2"	0.1406	9/64"	0.141"	H, M, N	4xd	9/64"	€23.86
B	400-001070	7/8"	7/8"	0.2813	0.281"	0.281"	-	3xd	-	€48.85
B	400-001080	7/8"	7/8"	0.3125	5/16"	0.312"	H, M, N	3xd	5/16"	€66.06

INTERNAL TOOL -

58 Series Spade Drills

A

Style	Model	MPN	Price
A	58-1108	58-1108	€25.88
A	58-1112	58-1112	€36.09
A	58-1116	58-1116	€46.84
A	58-1118	58-1118	€56.18
A	58-1120	58-1120	€64.20
A	58-1122	58-1122	€74.62
A	58-1124	58-1124	€84.61
A	58-1126	58-1126	€90.46
A	58-1128	58-1128	€94.96
A	58-1130	58-1130	€103.34
A	58-1132	58-1132	€116.90

CHICAGO-LATROBE -

Spade Drill

A

Style	Model	Max. Drilling Depth	Flute Length	Shank Dia.	Primary Material Application Iso Code	Size	Drill Dia. Tolerance	Drill Bit Size	Decimal Equivalent	Price
A	78492	1"	1"	3/8"	H, K, M, S	3/8"	-0.001" to 0"	3/8"	0.375	€128.24
A	78489	3/4"	3/4"	0.2813"	H, K, M, S	0.281"	-0.001" to 0"	9/32"	0.2812	€103.13
A	78483	3/8"	3/8"	0.0938"	H, K, M, S	0.094"	-0" to +0.0005"	3/32"	0.0938	€42.63
A	78481	3/16"	3/16"	0.0313"	H, K, M, S	-	-0" to +0.0005"	1/32"	0.0312	€43.56
A	78482	5/16"	5/16"	1/16"	H, K, M, S	0.062"	-0" to +0.0005"	1/16"	0.0625	€41.38
A	78490	7/8"	7/8"	5/16"	H, K, M, S	0.312"	-0.001" to 0"	5/16"	0.3125	€106.65
A	78484	7/16"	7/16"	1/8"	H, K, M, S	1/8"	-0" to +0.0005"	1/8"	0.125	€42.43
A	78486	9/16"	-	0.188"	H, K, M, S	0.188"	-	-	-	€55.77
A	78488	11/16"	11/16"	1/4"	H, K, M, S	1/4"	-0" to +0.0007"	1/4"	0.25	€76.99
A	78491	15/16"	15/16"	0.3438"	H, K, N, P, S	0.344"	-0.001" to 0"	11/32"	0.3438	€119.62
A	78485	15/32"	15/32"	5/32"	H, K, M, S	0.156"	-0" to +0.0007"	5/32"	0.1562	€52.73
A	78487	19/32"	19/32"	0.2188"	H, K, M, S	0.219"	-0" to +0.0007"	7/32"	0.2188	€70.70

MICRO 100 -

Spade Drill Bits, Quick Change

A

B

Style	Model	Finish	Shank Dia.	Web Thickness	Drill Dia.	Length From Holder	Point Angle	Price

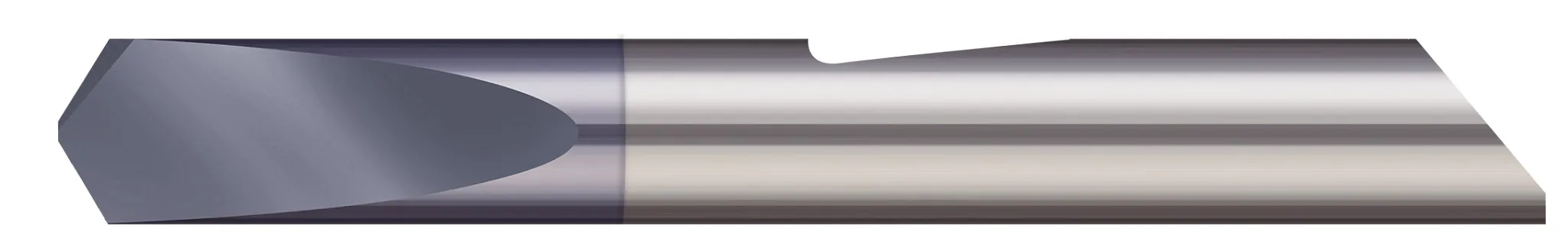

A	QSD-062X	AlTiN	3/16"	0.012"	1/16"	0.59"	118°	€30.17
A	QSD-312X	AlTiN	5/16"	1/25"	5/16"	1.353"	118°	€75.31
A	QSD-375X	AlTiN	3/8"	0.046"	3/8"	1.353"	118°	€90.36
A	QSD-125X	AlTiN	3/16"	0.02"	1/8"	0.59"	118°	€33.73
A	QSD-250X	AlTiN	1/4"	0.035"	1/4"	0.853"	118°	€55.51
A	QSD-093X	AlTiN	3/16"	0.016"	0.0938"	0.59"	118°	€31.09
A	QSD-031X	AlTiN	3/16"	0.01"	1/32"	0.34"	118°	€29.23
A	QSD-187X	AlTiN	3/16"	0.028"	3/16"	1.09"	118°	€42.05

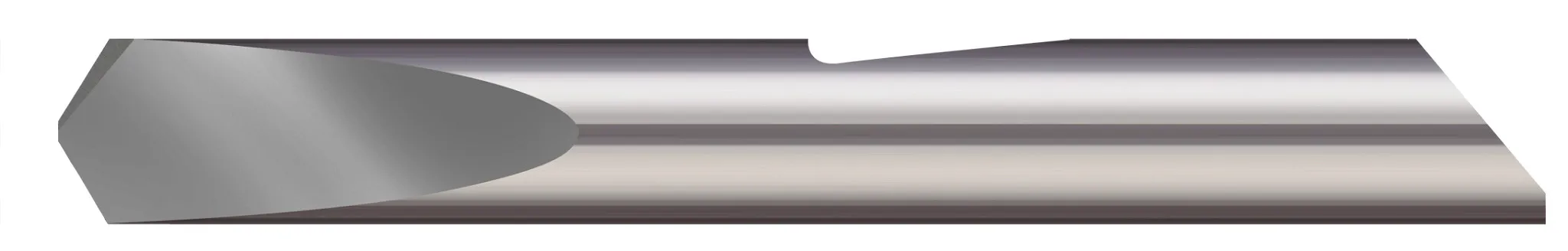

B	QSD-062	UN	3/16"	0.012"	1/16"	0.59"	118°	€26.14
B	QSD-093	UN	3/16"	0.016"	0.0938"	0.59"	118°	€26.80
B	QSD-250	UN	1/4"	0.035"	1/4"	0.853"	118°	€50.29
B	QSD-031	UN	3/16"	0.01"	1/32"	0.34"	118°	€25.08
B	QSD-187	UN	3/16"	0.028"	3/16"	1.09"	118°	€37.35
B	QSD-125	UN	3/16"	0.02"	1/8"	0.59"	118°	€29.43
B	QSD-156	UN	3/16"	0.025"	5/32"	1.09"	118°	€32.08
B	QSD-375	UN	3/8"	0.046"	3/8"	1.353"	118°	€83.82
B	QSD-312	UN	5/16"	1/25"	5/16"	1.353"	118°	€69.57

YG-1 TOOL COMPANY -

Exchangeable Tip Spade Drill Bits

A

B

C

D

E

F

G

Style	Model	Max. Drilling Depth	Flute Length	Flanged Shank	Seat Size	Toolholder Style	Max. Drill Dia.	Min. Drill Dia.	Ansi Code	Price
A	P13Z01	1 1/4"	2 1/32"	No	Z	P13	1/2"	7/16"	P13Z01	€249.91
B	P01Y02	1 1/4"	2 1/32"	No	Yes	P01	27/64"	3/8"	P01Y02	€264.57
B	P01Z02	1 1/4"	2 1/32"	No	Z	P01	1/2"	7/16"	P01Z02	€264.57
C	P25Z01	1 1/4"	2 13/32"	Yes	Yes	P25	1/2"	7/16"	P25Z01	€299.19

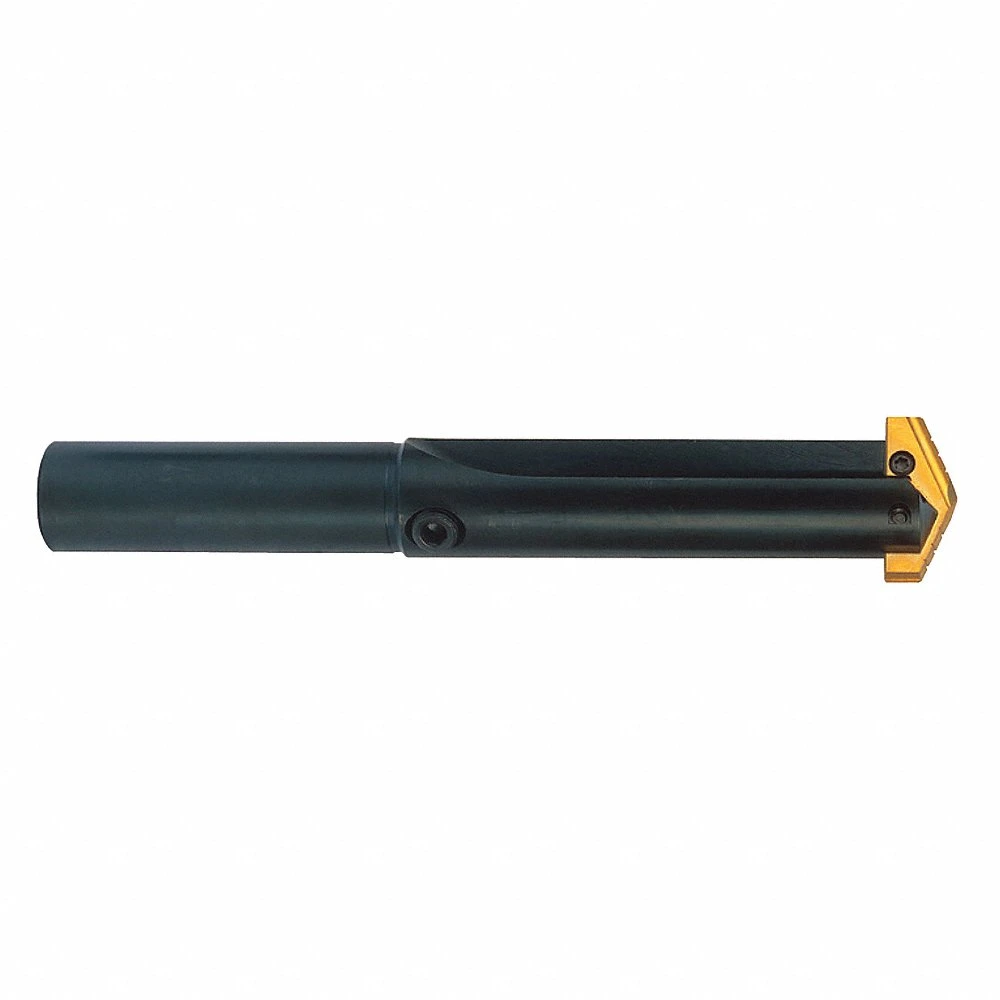

D	P13Y01	1 1/4"	2 1/32"	No	Yes	P13	27/64"	3/8"	P13Y01	€261.70
C	P25Y01	1 1/4"	2 13/32"	Yes	Yes	P25	27/64"	3/8"	P25Y01	€299.19
C	P25051	1 3/8"	2 1/2"	Yes	0.5	P25	-	39/64"	P25051	€299.19
E	P25001	1 3/8"	2 1/2"	Yes	0	P25	11/16"	33/64"	P25001	€299.19
D	P13051	1 3/8"	2 3/16"	No	0.5	P13	11/16"	39/64"	P13051	€245.00
D	P13001	1 3/8"	2 3/16"	No	0	P13	11/16"	33/64"	P13001	€249.91
F	P15001	2 1/2"	3 5/16"	No	0	P15	11/16"	33/64"	P15001	€284.78
C	P27051	2 1/2"	3 5/8"	Yes	0.5	P27	11/16"	39/64"	P27051	€316.80
G	P03052	2 1/2"	3 5/16"	No	0.5	P03	11/16"	39/64"	P03052	€265.28
C	P27001	2 1/2"	3 5/8"	Yes	0	P27	11/16"	33/64"	P27001	€323.15
G	P03002	2 1/2"	3 5/16"	No	0	P03	11/16"	33/64"	P03002	€265.28
B	P01103	2 3/4"	3 7/8"	No	1	P01	15/16"	45/64"	P01103	€288.84
B	P01153	2 3/4"	3 7/8"	No	1.5	P01	15/16"	55/64"	P01153	€311.02
B	P01154	2 3/4"	3 7/8"	No	1.5	P01	15/16"	55/64"	P01154	€321.15
B	P01104	2 3/4"	3 7/8"	No	1	P01	15/16"	45/64"	P01104	€296.89
E	P27Y01	2 3/8"	3 17/32"	Yes	Yes	P27	27/64"	3/8"	P27Y01	€316.80
F	P15Y01	2 3/8"	3 5/32"	No	Yes	P15	27/64"	3/8"	P15Y01	€267.73
G	P03Z02	2 3/8"	3 5/32"	No	Z	P03	1/2"	7/16"	P03Z02	€265.28
G	P03Y02	2 3/8"	3.156"	No	Yes	P03	0.422"	3/8"	P03Y02	€265.28
F	P15Z01	2 3/8"	3 5/32"	No	Z	P15	1/2"	7/16"	P15Z01	€255.56
C	P27Z01	2 3/8"	3 17/32"	Yes	Z	P27	1/2"	7/16"	P27Z01	€316.80

MICRO 100 -

Spade Drill Bits

A

Style	Model	Shank Dia.	Size	Web Thickness	Drill Dia.	Decimal Equivalent	Drill Bit Size	Finish	Finish-machining	Price
A	SD-093	0.0938"	0.094"	0.016"	3/32"	0.0938	-	Uncoated	Bright (Uncoated)	€37.38
A	SD-500	1/2"	1/2"	0.06"	1/2"	0.5	1/2"	Uncoated	Bright (Uncoated)	€152.36
A	SD-250	1/4"	1/4"	0.035"	1/4"	0.25	1/4"	Uncoated	Bright (Uncoated)	€66.42
A	SD-125	1/8"	1/8"	0.02"	1/8"	0.125	1/8"	Uncoated	Bright (Uncoated)	€40.85
A	SD-062	1/16"	0.062"	0.012"	1/16"	0.0625	1/16"	Uncoated	Bright (Uncoated)	€36.43
A	SD-031	1/32"	0.031"	0.01"	1/32"	0.0313	1/32"	Uncoated	Bright (Uncoated)	€35.90
A	SD-375	3/8"	3/8"	0.046"	3/8"	0.375	3/8"	Uncoated	Bright (Uncoated)	€100.12
A	SD-187	3/16"	0.188"	0.028"	3/16"	0.1875	3/16"	Uncoated	Bright (Uncoated)	€52.14
A	SD-312	5/16"	0.312"	1/25"	5/16"	0.3125	-	Uncoated	Bright (Uncoated)	€83.13
A	SD-156	5/32"	0.156"	0.025"	5/32"	0.1563	5/32"	Uncoated	Bright (Uncoated)	€44.78
A	SD-218	7/32"	0.219"	0.03"	7/32"	0.2188	7/32"	Uncoated	Bright (Uncoated)	€57.97

INTERNAL TOOL -

60 Series Die Sinkers

A

Style	Model	MPN	Price
A	60-1400	60-1400	€34.25
A	60-1425	60-1425	€84.00

MICRO 100 -

Quick Change, Holemaking Tools, Spade Drill, 0.1562 Inch (5/32) Drill dia, Finish AlTiN

Model	Item	Price (ex. VAT)
QSD-156X	DE7FQK	€47.50
