Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 1" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 3" |
| Min. Pitch Dia. | 2 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 3.35" |
| Overall Length | 2 7/32" |
| Pitch Dia. (a) | 2 4/5" |
| Pitch Dia. (b) | 3.3" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 1 |
| Weight | 1.261 Kg |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 5.64 |
| Ship width (cm) | 8.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Bore Type | Outside Dia. | Type | Overall Length | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1042977 | 3/8" to 1 1/2" | Split Taper | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €151.98 | |
![]() |
1043017 | 3/8" to 1 1/2" | Split Taper | 4 3/4" | Type 2 | 2 5/32" | Cast Iron | - | €145.60 | |
![]() |
1043116 | 3/8" to 1 1/2" | Split Taper | 8 3/4" | Type 3 | 1 29/32" | Cast Iron | 1 3/4" | €226.94 | |
![]() |
1033018 | 1/2" | Finished | 2 1/2" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €241.18 | |
![]() |
1033372 | 1 3/8" | Finished | 3 3/4" | Type 1 | 2 7/32" | Cast Iron | 1 3/4" | €218.36 | |
![]() |
1034172 | 1" | Finished | 15 3/4" | Type 3 | 2 3/32" | Cast Iron | 1 3/4" | €775.83 | |
![]() |
2739019 | 3/8" to 1 1/2" | Split Taper | 3.95" | Type 2 | 2 7/32" | Cast Iron | 1 3/4" | €165.49 |
Explore Products
- MARTIN SPROCKET 80BS33 1 15/16 Roller Chain Sprocket, Bore To Size, 1.938 Inch Bore, 11.072 Inch Outside Dia. Steel
- EATON CC3200SR2D Molded Case Circuit Breaker, Type Cc, 10 Kaic, 3-Pole, 200A, 240V, 24 Vdc Shunt Trip
- APPLETON ELECTRIC AJBEW101406HZG2
- PARKER P3NCB96SGMNNLNB
- B & P MANUFACTURING -24SL
- GATES TP1180H100 Dual Timing Belt, .5 Inch Pitch
- APPROVED VENDOR 1.7UT BLUE Tilt Truck Light-duty 1-3/4 Cubic Yard Blue
Explore More
- KEYSHAFT
- RULAND MANUFACTURING
- TENNSCO
- TRACEABLE
- CONEX BANNINGER
- Safety Interlock Switch Accessories
- Concrete Preparation Tools
- Key Accessories
- Manual Chain Hoists
- Gearmotor Accessories
- CONDOR Left Hand Only Welding Glove, Stick
- RUD CHAIN VRS Starpoint Eye Bolts, Metric Thread With Maximum Length
- CHICAGO PNEUMATIC Vibration-Damped Needle Scalers, Metric
- JOHN GUEST Check Valves
- BRADY Safety Banner, 3 Ft. H, 5 Ft. W
- THOMAS & BETTS THS14 Series Shrink Tubings
- TEST PRODUCTS INTL. Wide Application Thermocouple Handheld Meters
- SPEC Metric Compression Springs, Music Wire, 9/16 Inch Outside Dia.
- NIBCO 606-2 Series 45 Deg Fitting Elbows, Ftg x C, Wrot
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

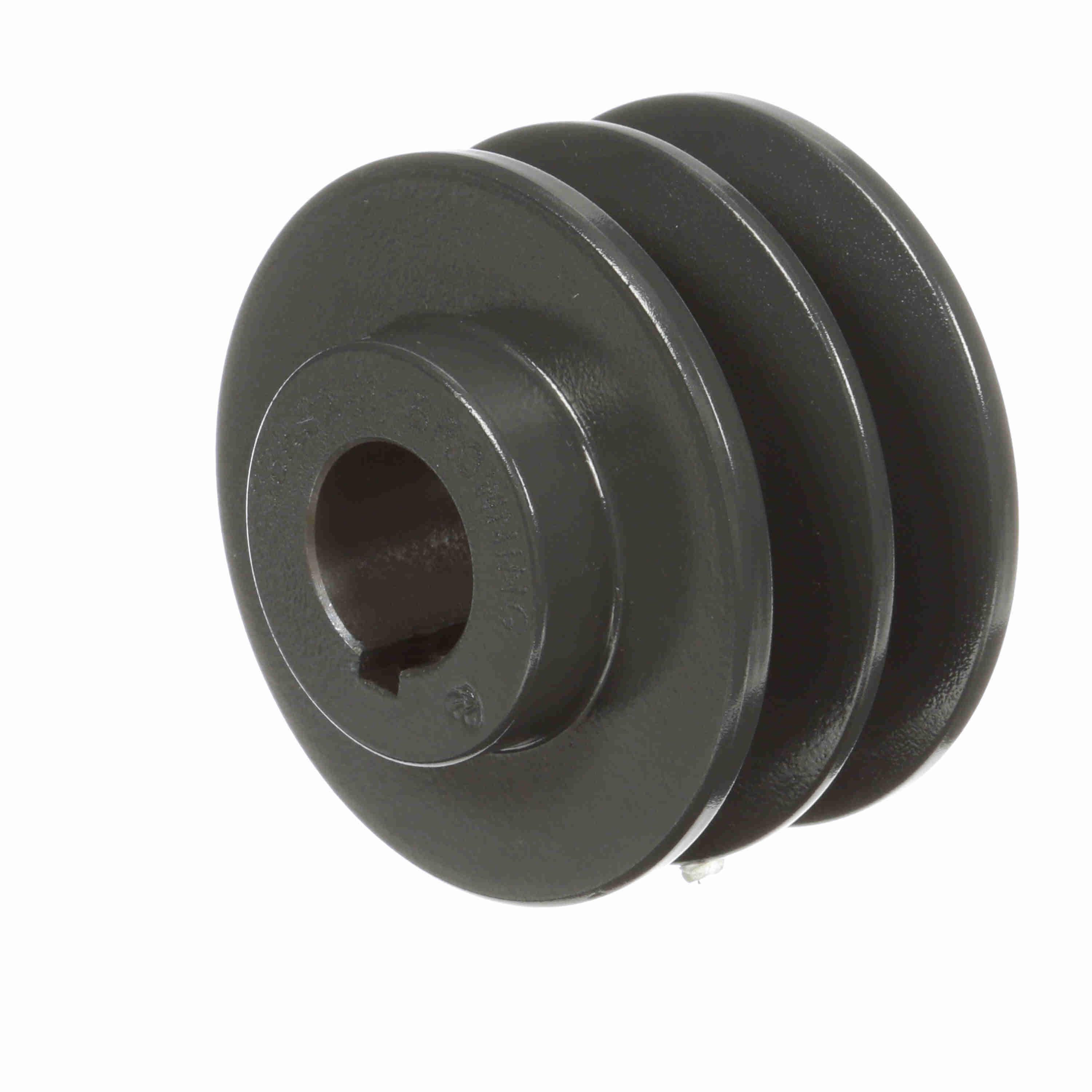

BROWNING 1033265 2BK32X1 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron
