SPEC Metric Compression Springs, Music Wire, 9/16 Inch Outside Dia.
Filter
A
B| Style | Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Wire Dia. | Spring Rate (stiffness) | Load Capacity | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

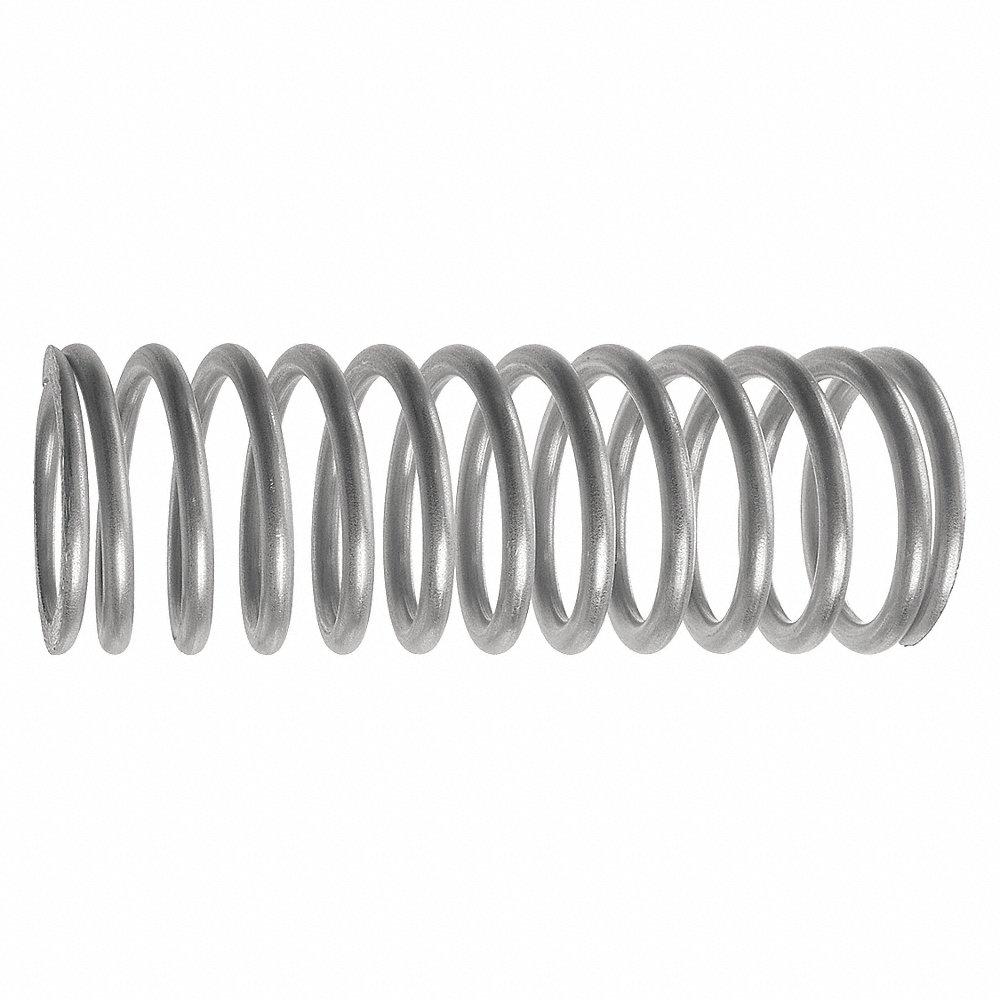

| A | D12670 | Spring Wire | 49.5 mm | 0.925" | 0.571" | 0.413" | 0.079" | 56 lbs./in. | 57.1 lbs. | 10 | €45.20 | |
| B | D12270 | Spring Wire | 62.5 mm | 0.65" | 0.541" | 0.443" | 0.049" | 8.5 lbs./in. | 15.52 lbs. | 10 | €35.93 | |
| B | D12280 | Spring Wire | 90.5 mm | 0.909" | 0.541" | 0.443" | 0.049" | 5.8 lbs./in. | 15.52 lbs. | 10 | €36.86 |
