BROWNING 1033372 2BK36X 1 3/8 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 3-3/4 in OD, 1-3/8 in Bore Dia, 3.2 in A/3.7 in B Pitch Dia
Item: AK6QWAModel: 1033372Cross Ref: 2BK36X 1 3/8
7 In Stock
3 3/4"
1 3/8"
Ships within 2 days via
€218.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 3 2/5" |
| Min. Pitch Dia. | 3" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 3 3/4" |
| Overall Length | 2 7/32" |
| Pitch Dia. | 3 1/5" |
| Pitch Dia. (b) | 3.7" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 1 |
Shipping Info:
| Ship weight (kg) | 1.28 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 5.64 |
| Ship width (cm) | 9.53 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Hub Projection | Pitch Dia. (b) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1042977 | 3/8" to 1 1/2" | 3 1/5" | Type 1 | - | - | Split Taper | 15/32" | 3.7" | €151.98 | |
 |
1043017 | 3/8" to 1 1/2" | 4 1/5" | Type 2 | - | - | Split Taper | 13/32" | 4.7" | €145.60 | |
 |
1043116 | 3/8" to 1 1/2" | 8 1/5" | Type 3 | 8 2/5" | 8" | Split Taper | 5/32" | 8.7" | €226.94 | |
 |
1033018 | 1/2" | 2" | Type 1 | 2.3" | 1.9" | Finished | 15/32" | 2 1/2" | €241.18 | |
 |

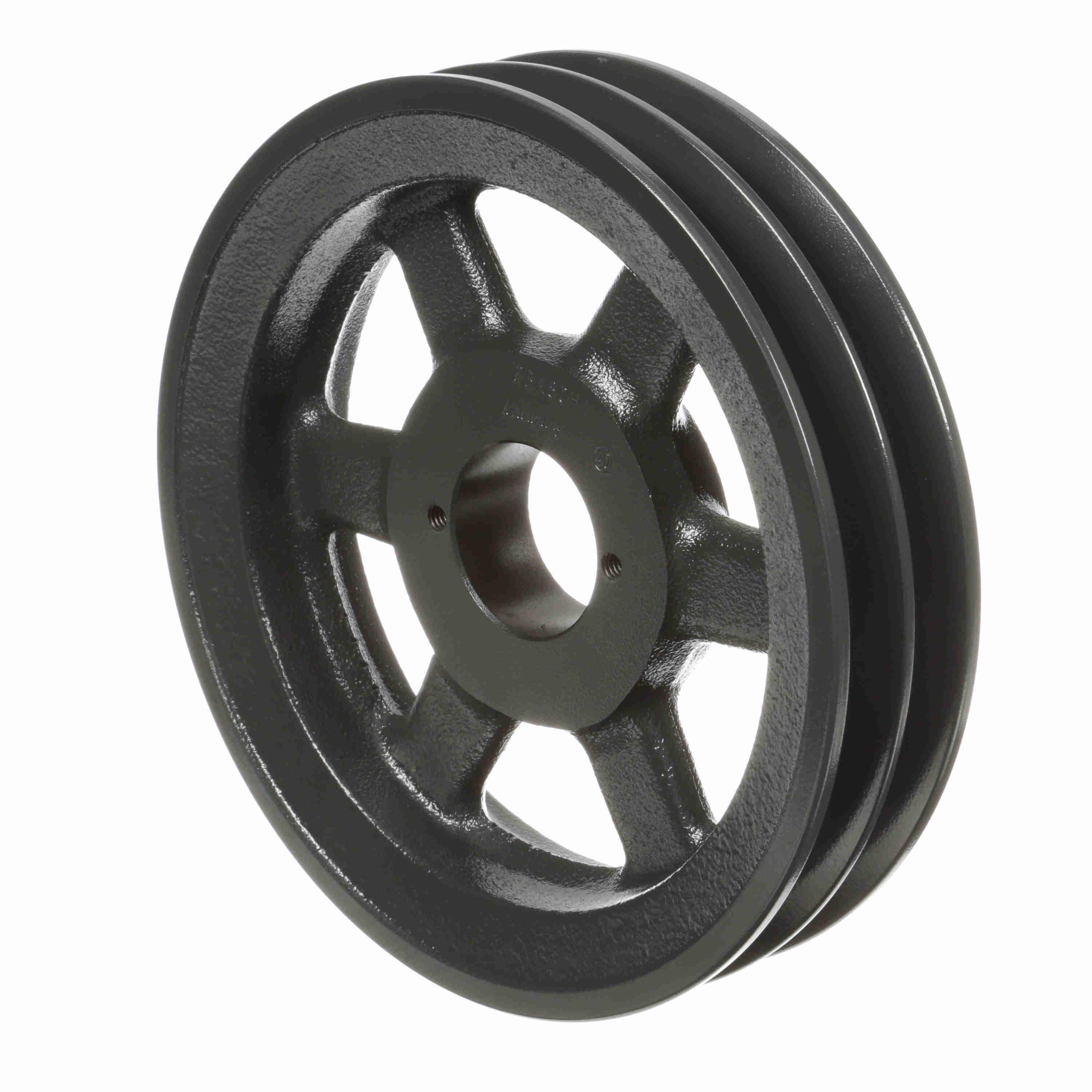

1043108 | 3/8" to 1 1/2" | 7 1/5" | Type 3 | 7 2/5" | 7" | Split Taper | 5/32" | 7.7" | €222.77 | |
 |
1043090 | 3/8" to 1 1/2" | 6 1/5" | Type 3 | 6 2/5" | 6" | Split Taper | 5/32" | 6.7" | €191.83 | |
 |
1033547 | 1 3/8" | 3.9" | Type 2 | 4.1" | 3.7" | Finished | 15/32" | 4 2/5" | €356.60 |
