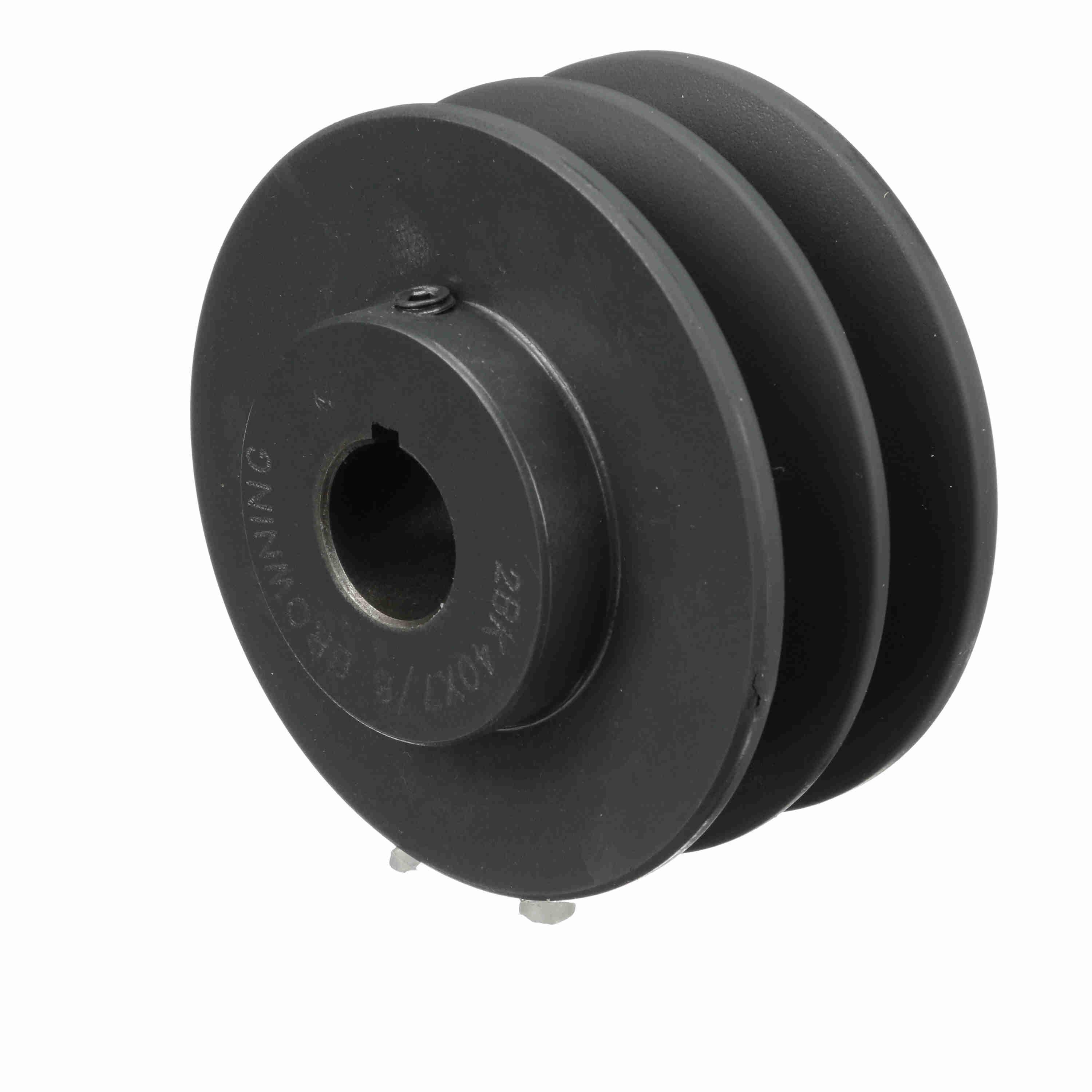

BROWNING 1033406 2BK40X7/8 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 3.95 in OD, 7/8 in Bore Dia, 3.4 in A/3.9 in B Pitch Dia
Item: BA2BCLModel: 1033406Cross Ref: 2BK40X7/8
7 In Stock
3.95"
7/8"
Ships within 2 days via
€328.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 7/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/4" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 3 3/5" |
| Min. Pitch Dia. | 3 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 3.95" |
| Overall Length | 2 7/32" |
| Pitch Dia. | 3 2/5" |
| Pitch Dia. (b) | 3.9" |
| Series | BK Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 10.03 |
| Ship length (cm) | 5.64 |
| Ship width (cm) | 10.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Hub Projection | Pitch Dia. (b) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1042977 | 3/8" to 1 1/2" | 3 1/5" | Type 1 | - | - | Split Taper | 15/32" | 3.7" | €151.98 | |
 |
1043017 | 3/8" to 1 1/2" | 4 1/5" | Type 2 | - | - | Split Taper | 13/32" | 4.7" | €145.60 | |
 |
1043116 | 3/8" to 1 1/2" | 8 1/5" | Type 3 | 8 2/5" | 8" | Split Taper | 5/32" | 8.7" | €226.94 | |
 |
1033018 | 1/2" | 2" | Type 1 | 2.3" | 1.9" | Finished | 15/32" | 2 1/2" | €241.18 | |
 |
1033372 | 1 3/8" | 3 1/5" | Type 1 | 3 2/5" | 3" | Finished | 15/32" | 3.7" | €218.36 | |
 |
1043108 | 3/8" to 1 1/2" | 7 1/5" | Type 3 | 7 2/5" | 7" | Split Taper | 5/32" | 7.7" | €222.77 | |
 |
1043090 | 3/8" to 1 1/2" | 6 1/5" | Type 3 | 6 2/5" | 6" | Split Taper | 5/32" | 6.7" | €191.83 |
