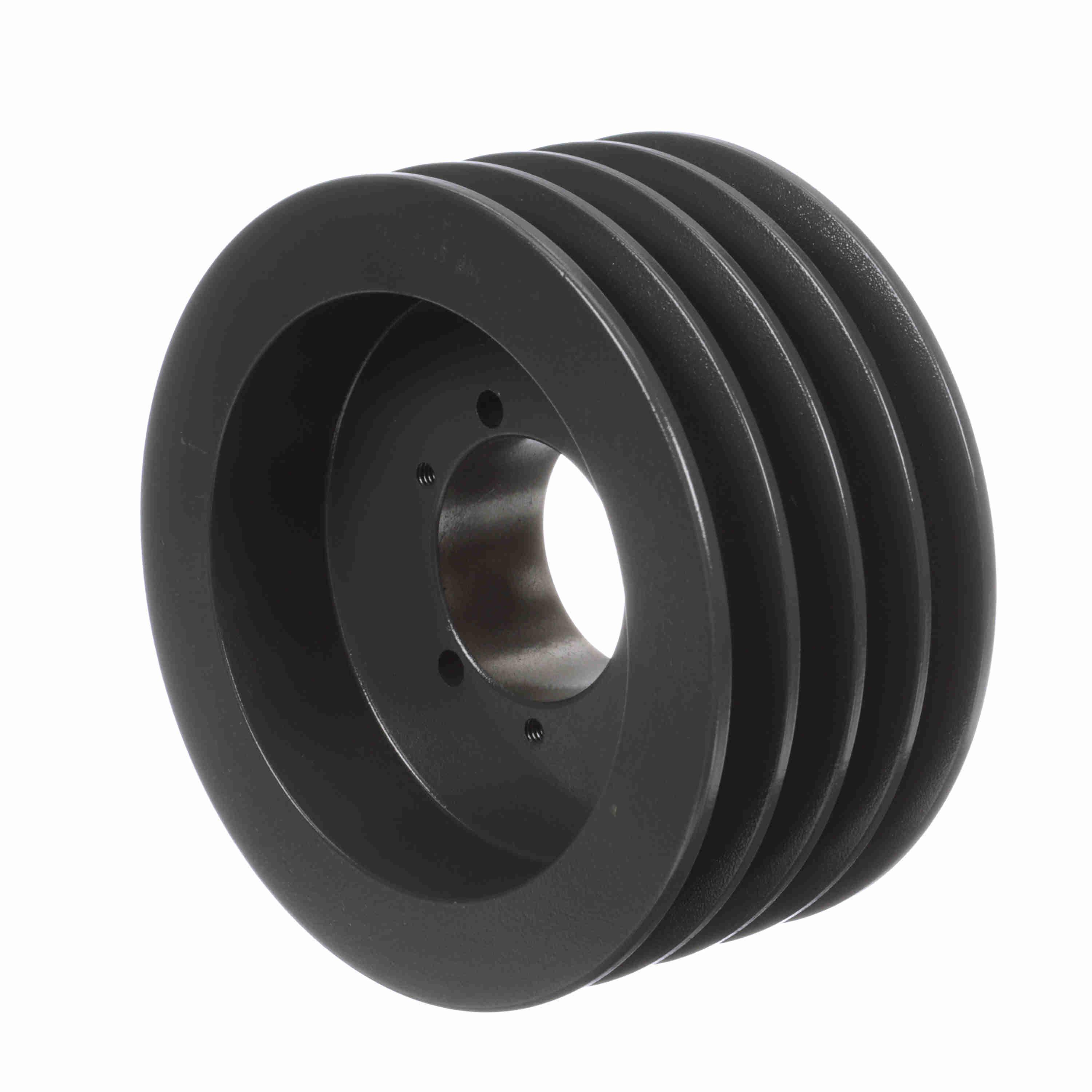

BROWNING 1004944 4B64SD V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 6-3/4 in OD, 1/2 to 2 in Bore Dia, 6.2 in A/6.7 in Pitch Dia
Get it by Thursday, Apr 2
€434.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SD |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 2/5" |
| Min. Pitch Dia. | 6" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 6 3/4" |
| Overall Length | 6 3/4" |
| Pitch Dia. (a) | 6 1/5" |
| Pitch Dia. (b) | 6.7" |
| Product Datasheet | browning-1097849.pdf |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Solid |
Shipping Info:
| Ship weight (kg) | 6.16 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 17.15 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1004811 | 4.15" | 1/2" to 2" | 3 1/4" | 4.15" | Type E Solid | QD | Cast Iron | €220.67 | RFQ
|
 |
1004795 | 3 3/4" | 1/2" to 2" | 3 1/4" | 3 3/4" | Type E Solid | QD | Cast Iron | €201.96 | RFQ
|
 |
1005115 | 38.35" | 22/25" to 3 1/2" | 3 1/4" | 38.35" | Type D Arm | QD | Cast Iron | €4,242.65 | |
 |
1005008 | 8.95" | 1/2" to 2 5/8" | 3 5/32" | 3 5/32" | Type A3 | QD | Cast Iron | €382.60 | |
 |
1004928 | 6.35" | 1/2" to 2" | 3 1/4" | 6.35" | Type A Solid | QD | Cast Iron | €283.03 | |
 |
1005099 | 25.35" | 22/25" to 3 1/2" | 3 1/4" | 25.35" | Type D Arm | QD | Cast Iron | €1,509.52 | |
 |
1005016 | 9 17/25" | 1/2" to 2 5/8" | 3 5/32" | 3 5/32" | Type A3 | QD | Cast Iron | €425.80 |
