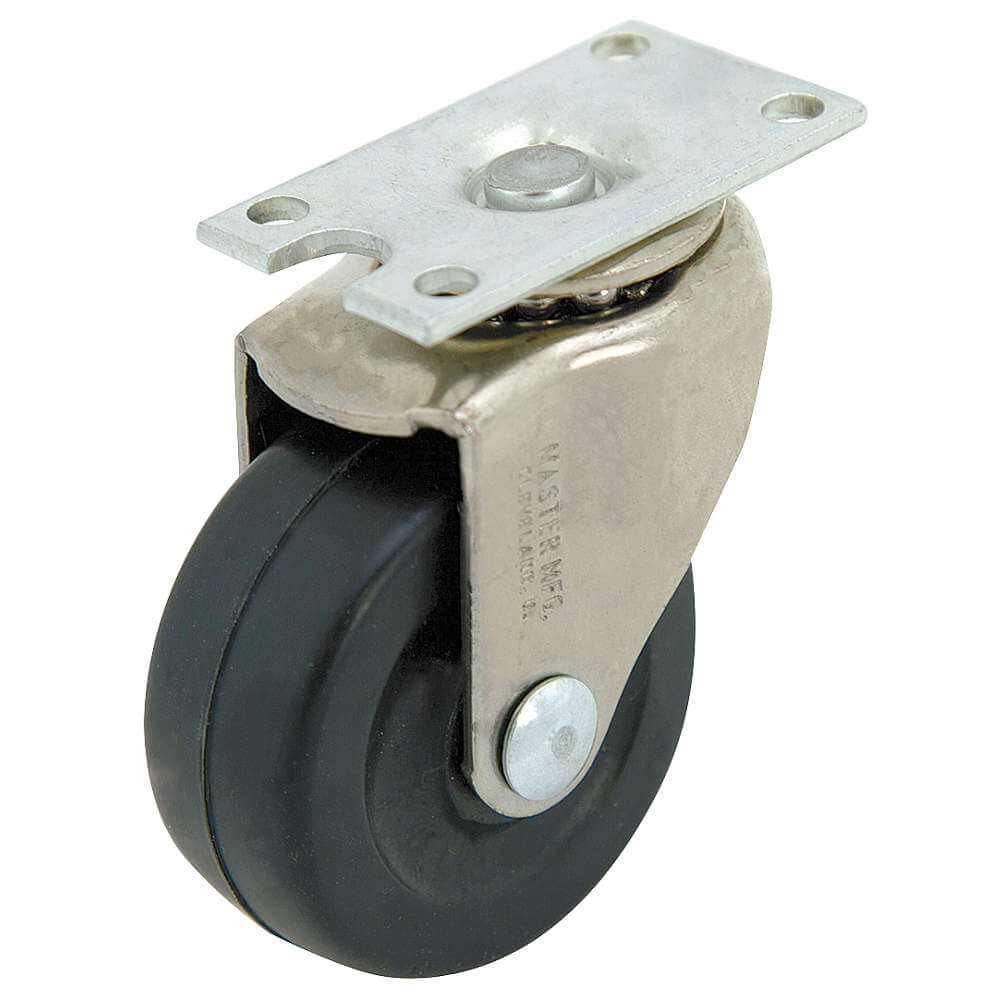

HAMILTON 31707 Swivel Plate Caster 75 Lb Rubber 2 Inch Diameter
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€5.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Office Chairs And Furniture |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Rubber |
| Durometer Rating | 80 Shore A |
| Extended Lead | No |
| Features | Hard Tread For Carpeted Surfaces |
| Frame Finish | High Nickel |
| Frame Material | Steel |
| Hole Pattern | D |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 13/16" x 1 9/16" |
| Load Rating | 75 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/16" |
| Mounting Height | 2 1/2" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 1 3/16" x 2" |
| Mounting Plate Size & Bolt Hole Pattern | 1 3/16" X 2" ( D ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +160°F |
| Outside Bolt Hole Spacing | 13/16" x 1 9/16" |
| Plate Caster Core Material | Rubber |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Rubber |
| Plate Size | 2" x 1.188" |
| Plate Thickness | 0.7" |
| Plate Type | D |
| Raceway Type | Double Ball |
| Standards | Ansi Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 2" |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Ball |
| Wheel Color | Black |
| Wheel Core Material | Rubber |
| Wheel Diameter | 2" |
| Wheel Width | 7/8" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 85 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 13.97 |
| HS code | 8302200000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
- Sub-Brand: STANDARD CASTER
