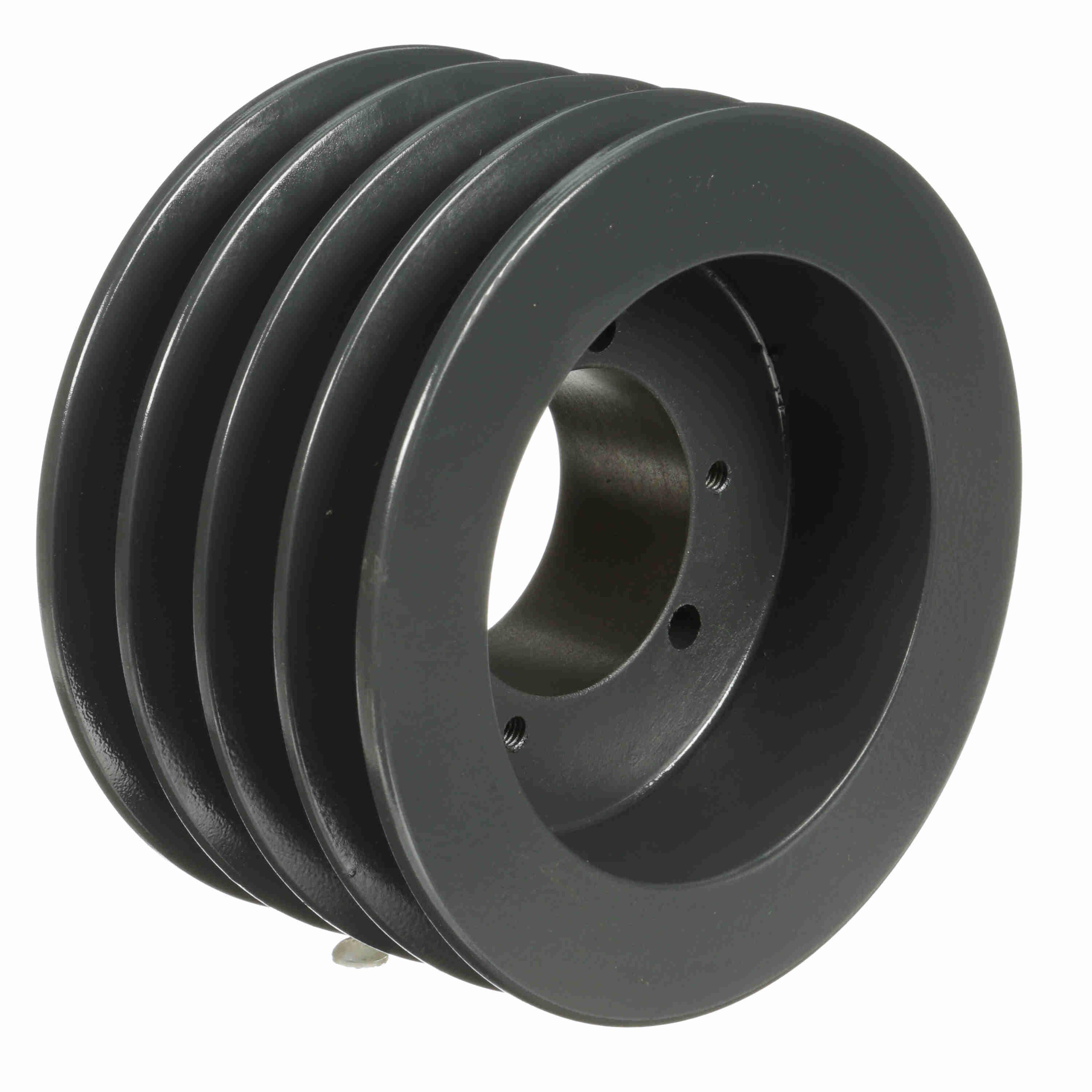

BROWNING 1004910 4B58SD V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 6.15 in OD, 1/2 to 2 in Bore Dia, 5.6 in A/6.1 in Pitch Dia
6.15"
Get it by Monday, Aug 17
€398.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SD |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 4/5" |
| Min. Pitch Dia. | 5 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 6.15" |
| Overall Length | 3 1/4" |
| Pitch Dia. | 5 3/5" |
| Pitch Dia. (b) | 6.1" |
| Product Datasheet | browning-1097849.pdf |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type A1 |
Shipping Info:
| Ship weight (kg) | 5 |
| Ship height (cm) | 15.62 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 15.62 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1005115 | 37 4/5" | 3 1/4" | 22/25" to 3 1/2" | Type D Arm | 38" | 37 3/5" | 38.3" | E | €4,242.65 | |
 |
1005008 | 8 2/5" | 3 5/32" | 1/2" to 2 5/8" | Type A3 | 8 3/5" | 8 1/5" | 8.9" | SK | €382.60 | |
 |
1004928 | 5 4/5" | 3 1/4" | 1/2" to 2" | Type A Solid | 6" | 5 3/5" | 6.3" | SD | €283.03 | |
 |
1005099 | 24 4/5" | 3 1/4" | 22/25" to 3 1/2" | Type D Arm | 25" | 24 3/5" | 25.3" | E | €1,509.52 | |
 |
1005016 | 9 1/5" | 3 5/32" | 1/2" to 2 5/8" | Type A3 | - | - | 9.7" | SK | €425.80 | |
 |
1004993 | 7 4/5" | 3 5/32" | 1/2" to 2 5/8" | Type A Arm | 8" | 7 3/5" | 8.3" | SK | €364.81 | |
 |
1004845 | 4 1/5" | 3 1/4" | 1/2" to 2" | Type E Solid | 4 2/5" | 4" | 4.7" | SD | €520.64 |
