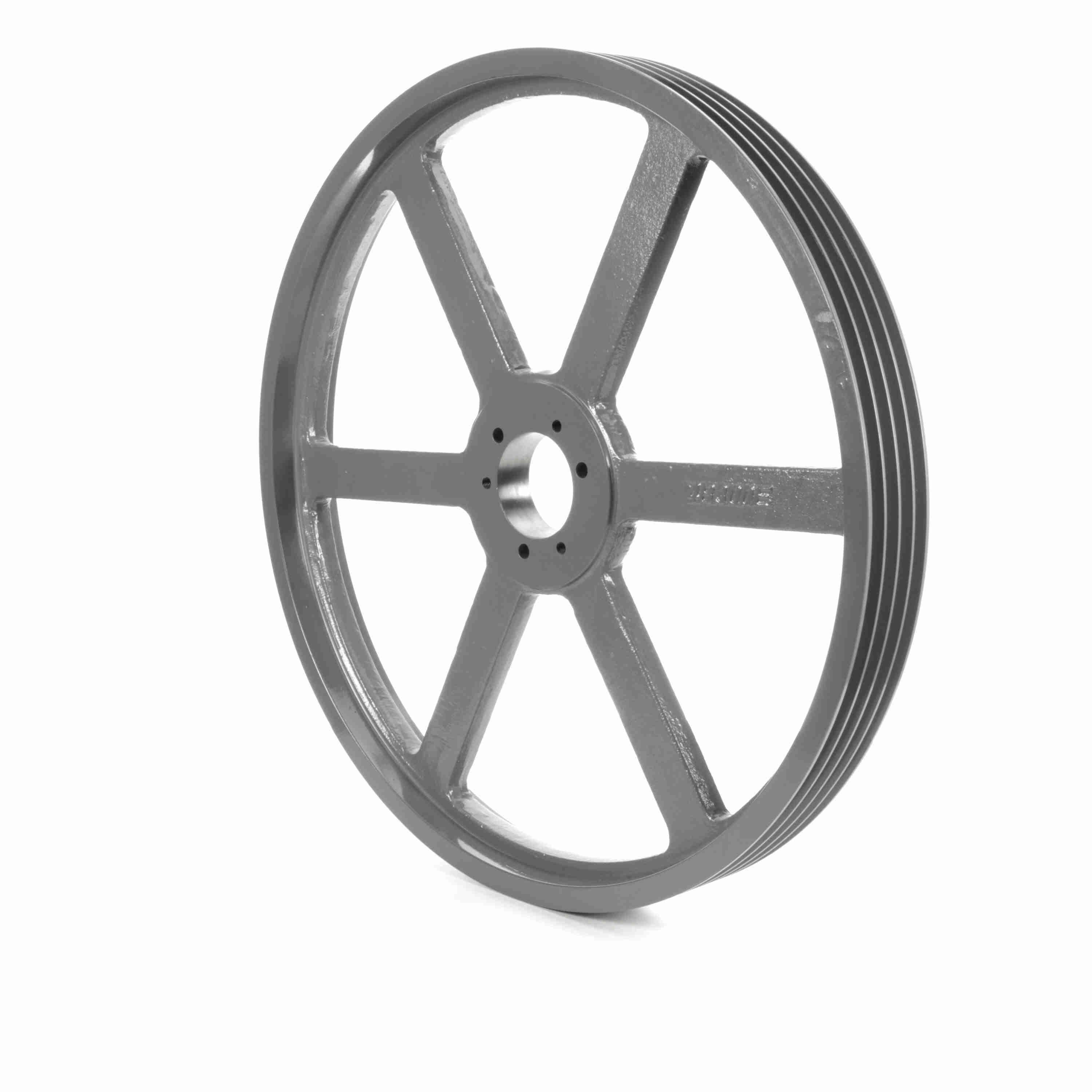

BROWNING 1005107 4B300E V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
30.35"
Get it by Monday, Dec 22
€1,727.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 22/25" to 3 1/2" |
| Bore Type | QD |
| Bushing Bore Range | 7/8" to 3 1/2" |
| Bushing Type | E |
| Face Width | 3 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 30" |
| Min. Pitch Dia. | 29 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 30.35" |
| Overall Length | 30.35" |
| Pitch Dia. (a) | 29 4/5" |
| Pitch Dia. (b) | 30.3" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type D Arm |
| Weight | 39.044 Kg |
Shipping Info:
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 77.09 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 77.09 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1004811 | 4.15" | 1/2" to 2" | 3 1/4" | 4.15" | Type E Solid | QD | Cast Iron | €220.67 | |
 |
1004795 | 3 3/4" | 1/2" to 2" | 3 1/4" | 3 3/4" | Type E Solid | QD | Cast Iron | €201.96 | |
 |
1005115 | 38.35" | 22/25" to 3 1/2" | 3 1/4" | 38.35" | Type D Arm | QD | Cast Iron | €4,242.65 | |
 |
1005008 | 8.95" | 1/2" to 2 5/8" | 3 5/32" | 3 5/32" | Type A3 | QD | Cast Iron | €382.60 | |
 |
1004928 | 6.35" | 1/2" to 2" | 3 1/4" | 6.35" | Type A Solid | QD | Cast Iron | €283.03 | |
 |
1005099 | 25.35" | 22/25" to 3 1/2" | 3 1/4" | 25.35" | Type D Arm | QD | Cast Iron | €1,509.52 | |
 |
1005016 | 9 17/25" | 1/2" to 2 5/8" | 3 5/32" | 3 5/32" | Type A3 | QD | Cast Iron | €425.80 |
