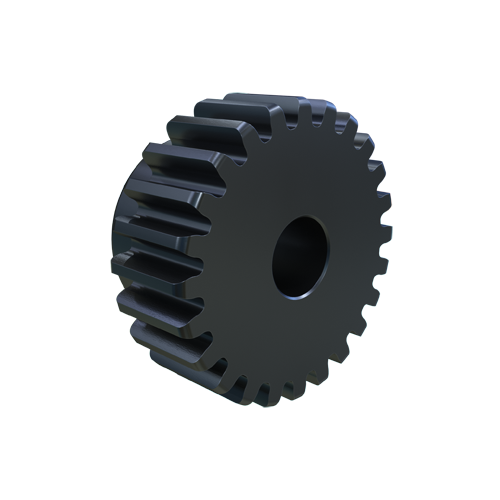

MARTIN SPROCKET S624 Spur Gear, 6 Diametral Pitch, 4 Inch Pitch Dia., Reborable, Steel
Item: AK2YZXModel: S624
7 In Stock
4"
Ships within 2 days via
€302.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1 1/8" to 1 7/8" |
| Diametral Pitch | 6 |
| Face Width | 1 1/2" |
| Hub Dia. | 3" |
| Hub Projection | 1" |
| Hub Type | B |
| Length | 2 1/2" |
| Material | Steel |
| No. Of Teeth | 24 |
| Outside Dia. | 4.333" |
| Pitch Dia. | 4" |
| Pressure Angle | 14.5° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 2.91 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 11 |
| Ship width (cm) | 11 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Teeth | Pitch Dia. | Pressure Angle | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S611 | 11 | 2" | 14.5° | 1 1/2" | 1 1/2" | 1" | External Tooth Reborable | 7/8" | €144.61 | |
 |
S612 | 12 | 2" | 14.5° | 1 1/2" | 1 1/2" | 1" | External Tooth Reborable | 7/8" | €144.61 | |
 |
S614 | 14 | 2.333" | 14.5° | 1 1/2" | 1.812" | 1" to 1.063" | External Tooth Reborable | 7/8" | €164.61 | |
 |
S615 | 15 | 2 1/2" | 14.5° | 1 1/2" | 2" | 1" to 1 1/4" | External Tooth Reborable | 7/8" | €184.86 | |
 |
S616 | 16 | 2.666" | 14.5° | 1 1/2" | 2.156" | 1" to 1.313" | External Tooth Reborable | 7/8" | €191.91 | |
 |
S618 | 18 | 3" | 14.5° | 1 1/2" | 2 1/2" | 1" to 1 1/2" | External Tooth Reborable | 7/8" | €210.59 | |
 |
S620 | 20 | 3.333" | 14.5° | 1 1/2" | 2.844" | 1" to 1 3/4" | External Tooth Reborable | 7/8" | €225.47 |
