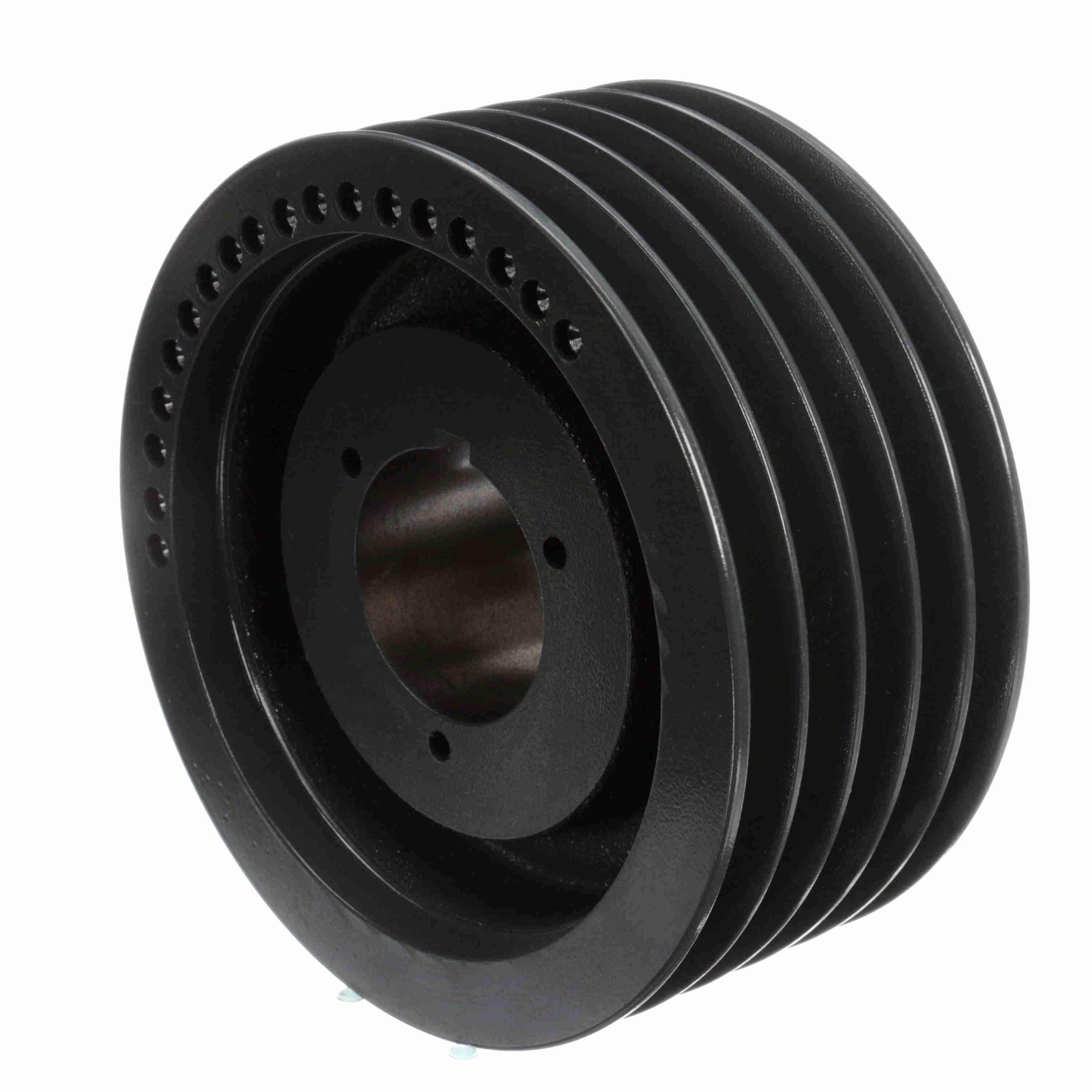

BROWNING 1002484 5TB86 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
8.95"
Get it by Tuesday, Dec 23
€674.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8 3/5" |
| Min. Pitch Dia. | 8 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 8.95" |
| Overall Length | 4 13/32" |
| Pitch Dia. (a) | 8 2/5" |
| Pitch Dia. (b) | 8.9" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
| Weight | 13.299 Kg |
Shipping Info:
| Ship weight (kg) | 13.64 |
| Ship height (cm) | 22.73 |
| Ship length (cm) | 11.2 |
| Ship width (cm) | 22.73 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1002120 | 6 3/4" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | Cast Iron | €486.61 | |
 |
1002369 | 7 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Web | Split Taper | Cast Iron | €545.58 | |
 |
1002542 | 9.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €599.94 | |
 |
1002609 | 9 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €715.68 | |
 |
1002906 | 16.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €1,519.56 | |
 |
1002963 | 18 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €1,675.73 | |
 |
1003029 | 20.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €2,820.02 |
