BROWNING 1002609 5TB94 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 9-3/4 in OD, 1 to 2-5/8 in Bore Dia, Q2 Bushing Type, Type 13 Arm
9 3/4"
Get it by Friday, Aug 14
€715.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 2/5" |
| Min. Pitch Dia. | 9" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 9 3/4" |
| Overall Length | 4 13/32" |
| Pitch Dia. | 9 1/5" |
| Pitch Dia. (b) | 9.7" |
| Product Datasheet | browning-1097849.pdf |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
Shipping Info:
| Ship weight (kg) | 13.91 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 24.77 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1002120 | 6 1/5" | 4" | 3/4" to 2 11/16" | Type 13 Web | A, B Series | 6 2/5" | 6" | TB Series | €486.61 | |
 |
1002369 | 7 1/5" | 4" | 1" to 2 5/8" | Type 13 Web | A, B Series | 7 2/5" | 7" | TB Series | €545.58 | |
 |
1002542 | 8 4/5" | 4" | 1" to 2 5/8" | Type 13 Arm | - | - | - | TB Series | €599.94 | |
 |

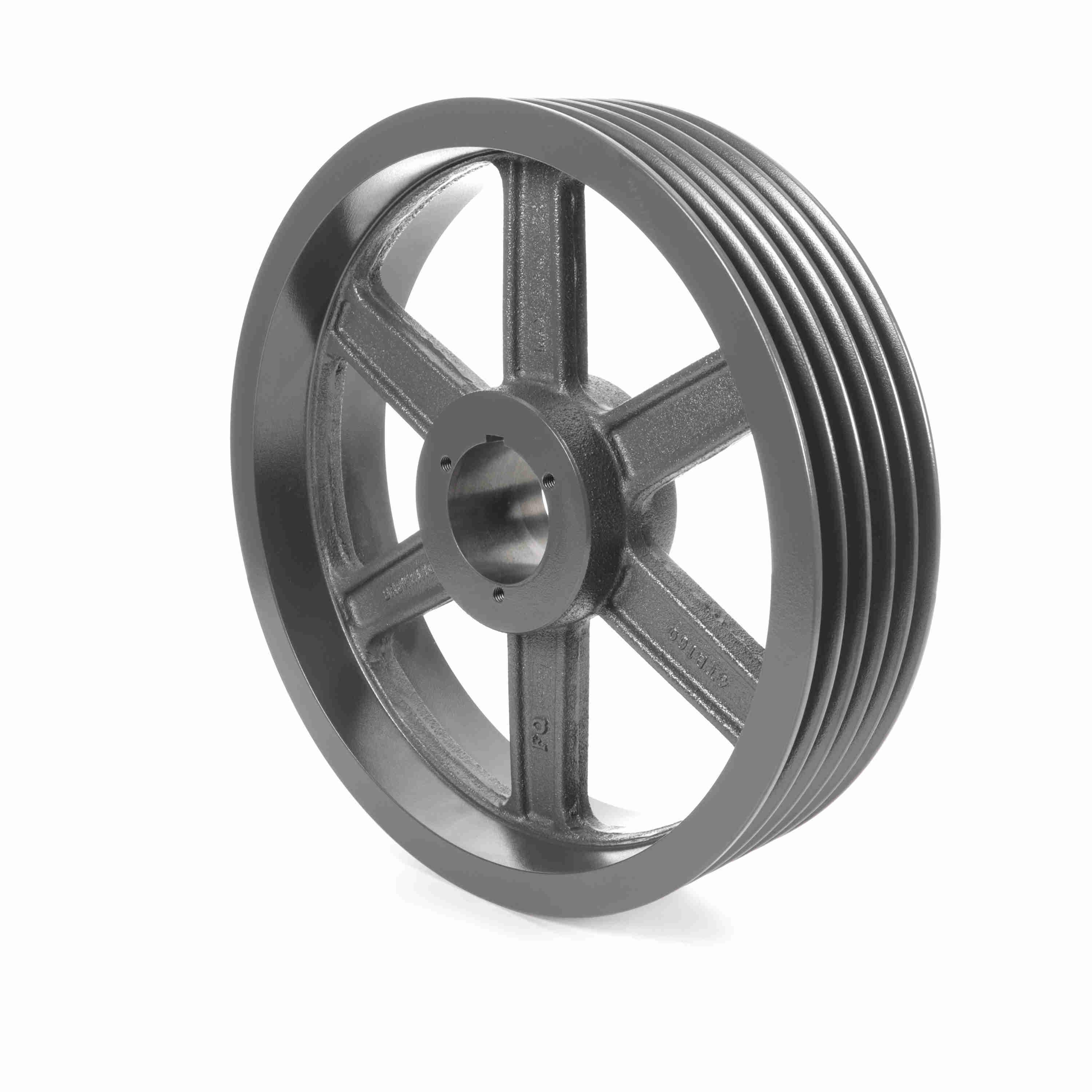

1002906 | 15 4/5" | 4" | 1" to 2 5/8" | Type 13 Arm | A, B Series | 16" | 15 3/5" | TB Series | €1,519.56 | |
 |
1002963 | 18 1/5" | 4" | 1" to 2 5/8" | Type 13 Arm | A, B Series | 18 2/5" | 18" | TB Series | €1,675.73 | |
 |
1003029 | 19 4/5" | 4" | 1" to 2 5/8" | Type 13 Arm | A, B Series | 20" | 19 1/2" | TB Series | €2,820.02 | |
 |
1009182 | 8" | 5 1/4" | 1" to 2 5/8" | Type 15 Web | - | - | - | TC Series | €997.51 |
