BROWNING TB Series Gripbelt Sheaves With Split Taper Bushings, 5 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2| Style | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

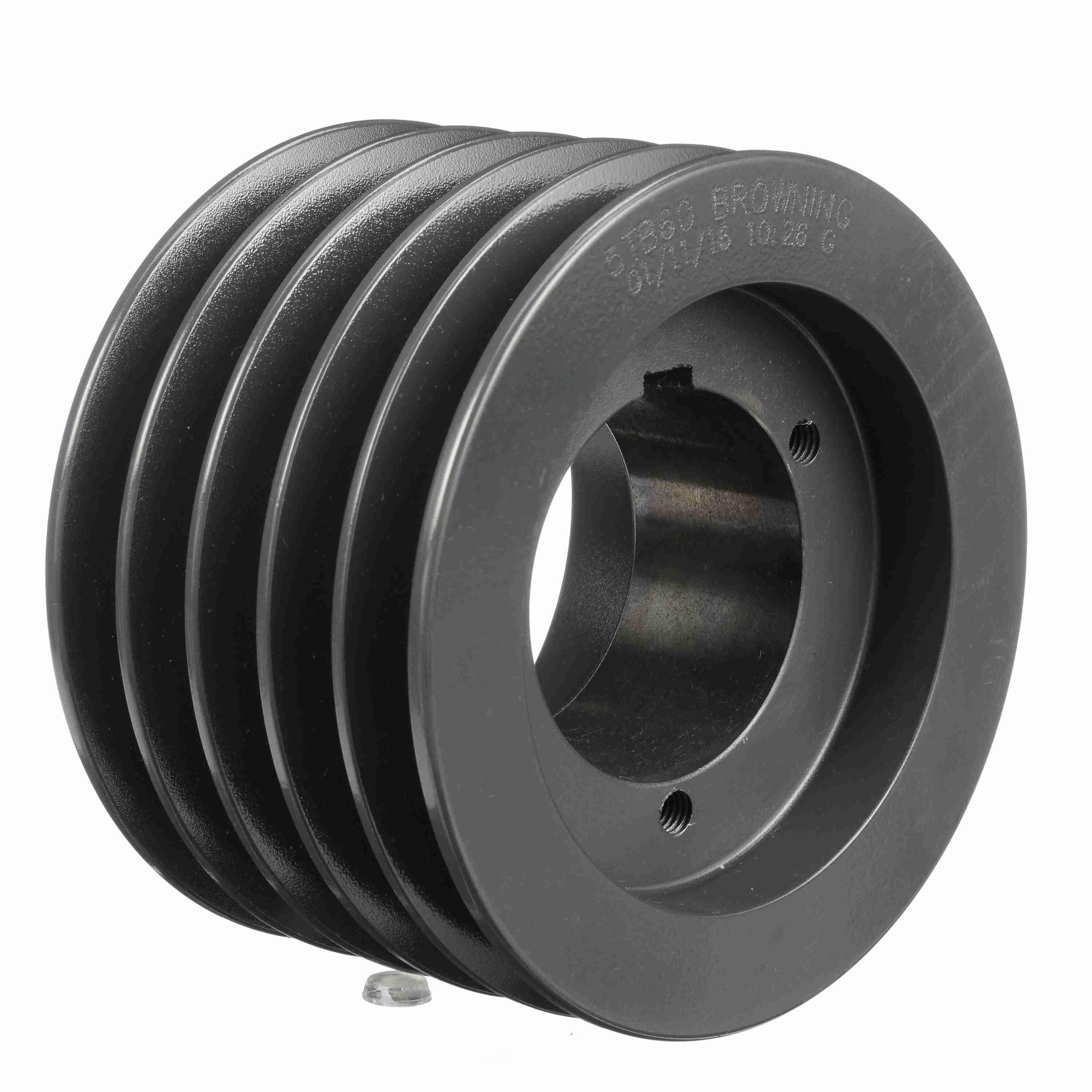

| A | 1001221 | 3 3/4" | 3/4" to 1 3/4" | 4" | 5 5/16" | Type 3 | Split Taper | Cast Iron | €336.69 | |
| B | 1001288 | 3.95" | 3/4" to 1 3/4" | 4" | 5 5/16" | Type 3 | Split Taper | Cast Iron | €354.56 | |
| C | 1001528 | 4 3/4" | 3/4" to 1 3/4" | 4" | 4 1/4" | Type 13 Web | Split Taper | Cast Iron | €546.53 | |
| D | 1001346 | 4.15" | 3/4" to 1 3/4" | 4" | 4 7/8" | Type 5 | Split Taper | Cast Iron | €701.61 | |
| E | 1001403 | 4.35" | 3/4" to 1 3/4" | 4" | 4 7/8" | Type 5 | Split Taper | Cast Iron | €360.87 | |
| F | 1001460 | 4.55" | 3/4" to 1 3/4" | 4" | 4 7/8" | Type 5 | Split Taper | Cast Iron | €420.90 | |
| G | 1001585 | 4.95" | 3/4" to 1 3/4" | 4" | 4 1/4" | Type 13 Web | Split Taper | Cast Iron | €395.91 | |
| H | 1001825 | 5 3/4" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | Cast Iron | €371.76 | |
| A | 1001643 | 5.15" | 3/4" to 1 3/4" | 4" | 4 1/4" | Type 13 Web | Split Taper | Cast Iron | €731.56 | |
| I | 1001700 | 5.35" | 3/4" to 1 3/4" | 4" | 4 13/64" | Type 13 Web | Split Taper | Cast Iron | €508.59 | |
| J | 1001767 | 5.55" | 3/4" to 1 3/4" | 4" | 4 13/64" | Type 13 Web | Split Taper | Cast Iron | €691.26 | |

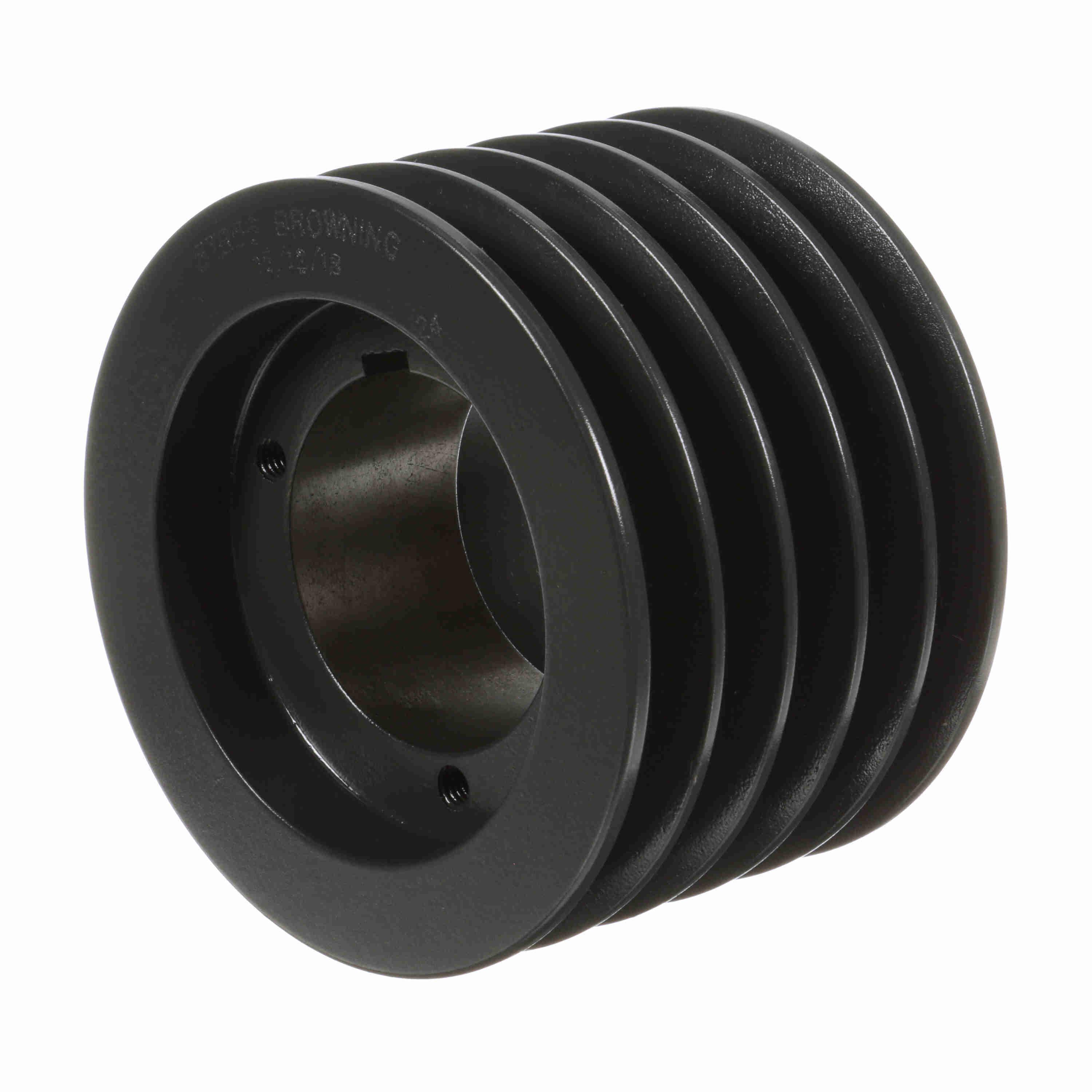

| K | 1001882 | 5.95" | 3/4" to 2 11/16" | 4" | 4 21/64" | Type 13 Web | Split Taper | Cast Iron | €359.33 | |
| L | 1002120 | 6 3/4" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | Cast Iron | €486.61 | |
| M | 1001940 | 6.15" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | Cast Iron | €422.46 | |

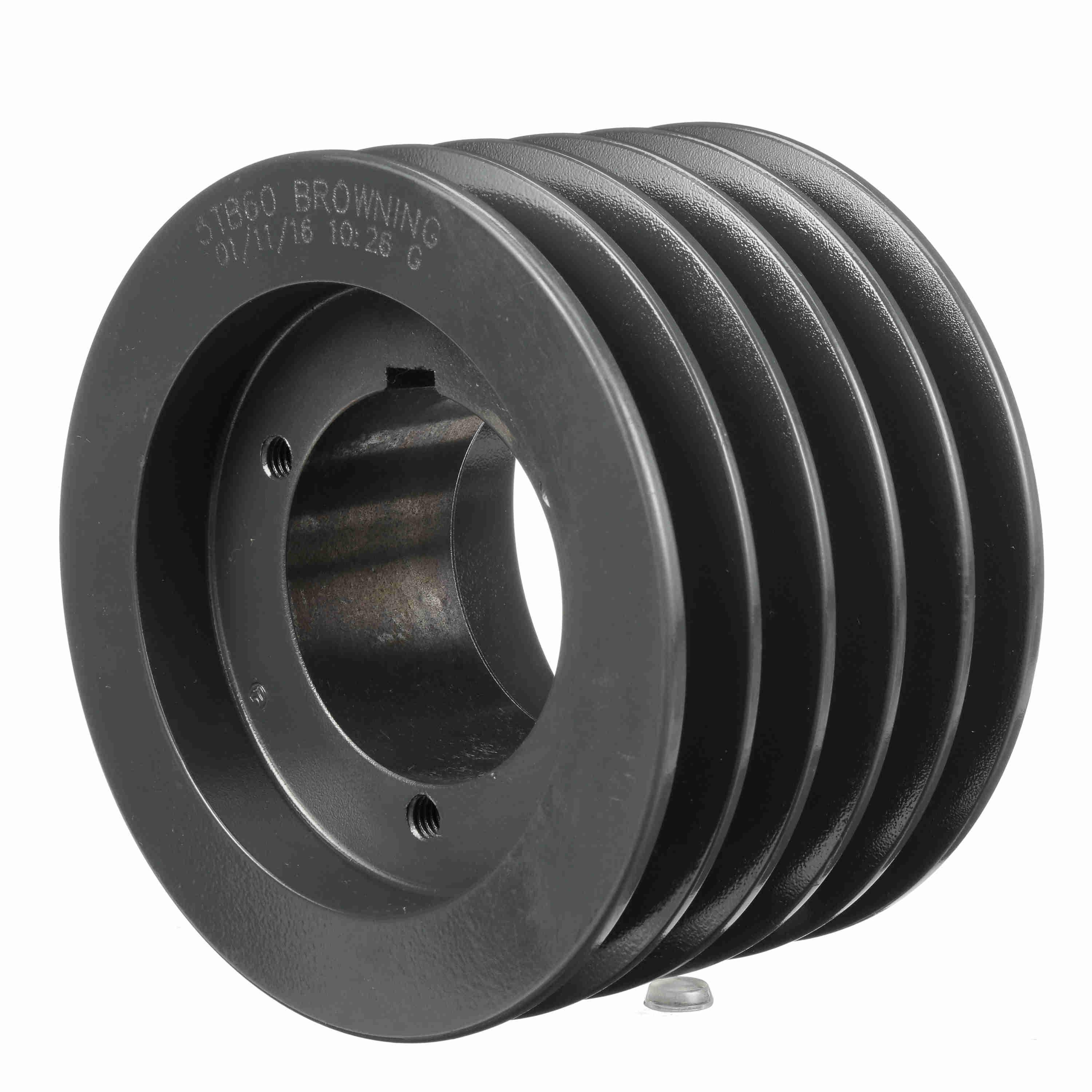

| N | 1002005 | 6.35" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | Cast Iron | €438.10 | |
| O | 1002062 | 6.55" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | - | €470.48 | |
| P | 1002187 | 6.95" | 3/4" to 2 11/16" | 4" | 4 9/32" | Type 13 Web | Split Taper | Cast Iron | €493.18 | |

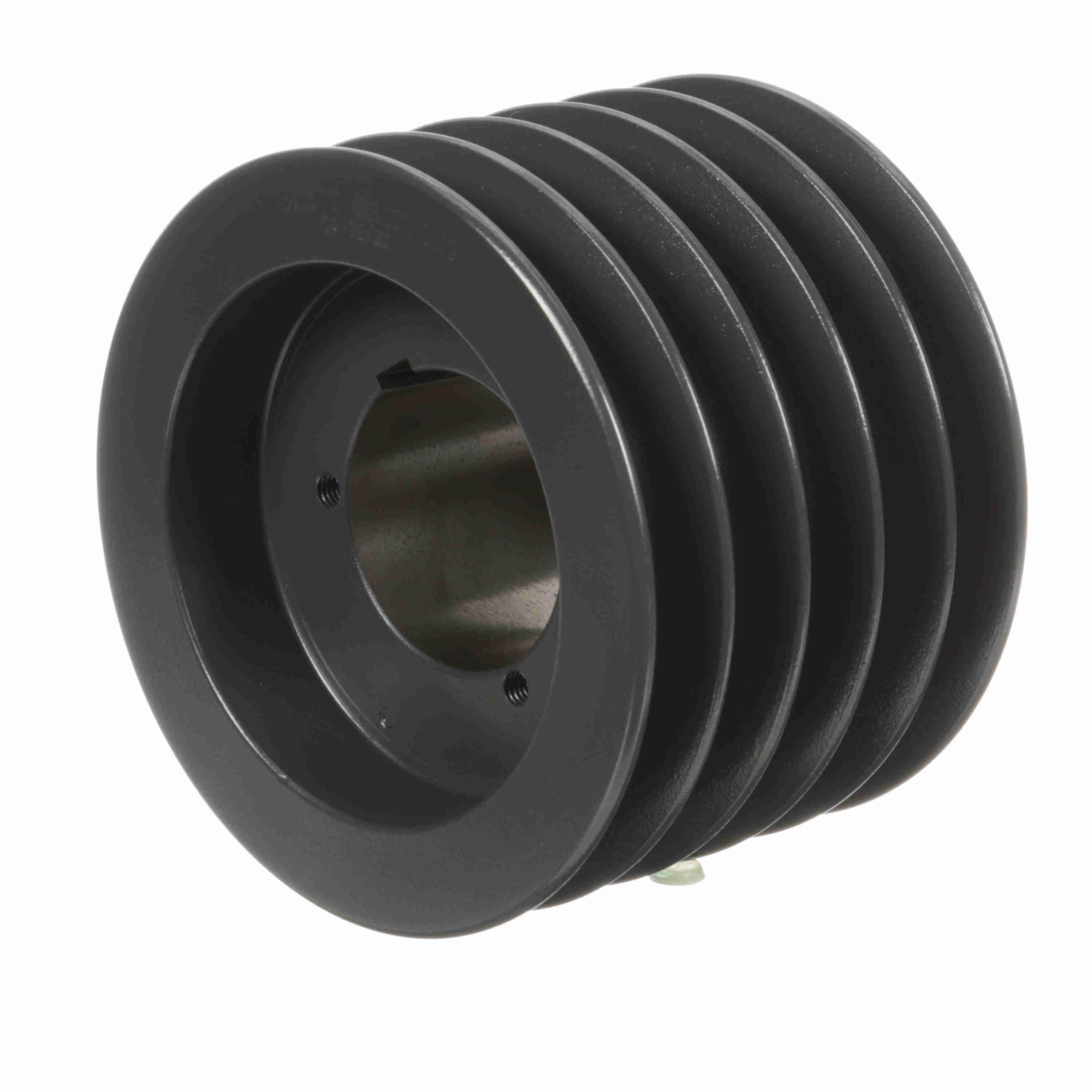

| Q | 1009026 | 7 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €697.68 | |
| R | 1002369 | 7 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Web | Split Taper | Cast Iron | €545.58 | |
| S | 1009075 | 7 3/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €692.81 | |
| T | 1009125 | 7 4/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €981.08 | |
| U | 1002245 | 7.15" | 3/4" to 2 11/16" | 4" | 4 21/64" | Type 13 Web | Split Taper | Cast Iron | €501.50 | |
| V | 1002302 | 7.35" | 1" to 2 5/8" | 4" | 4 29/64" | Type 13 Web | Split Taper | Cast Iron | €558.39 | |
| W | 1009232 | 8 1/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €767.61 | |
| X | 1009299 | 8 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €826.36 | |
| Y | 1009356 | 8 3/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €797.81 | |
| Z | 1009406 | 8 4/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €1,204.96 | |
| A1 | 1009182 | 8" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €997.51 | |

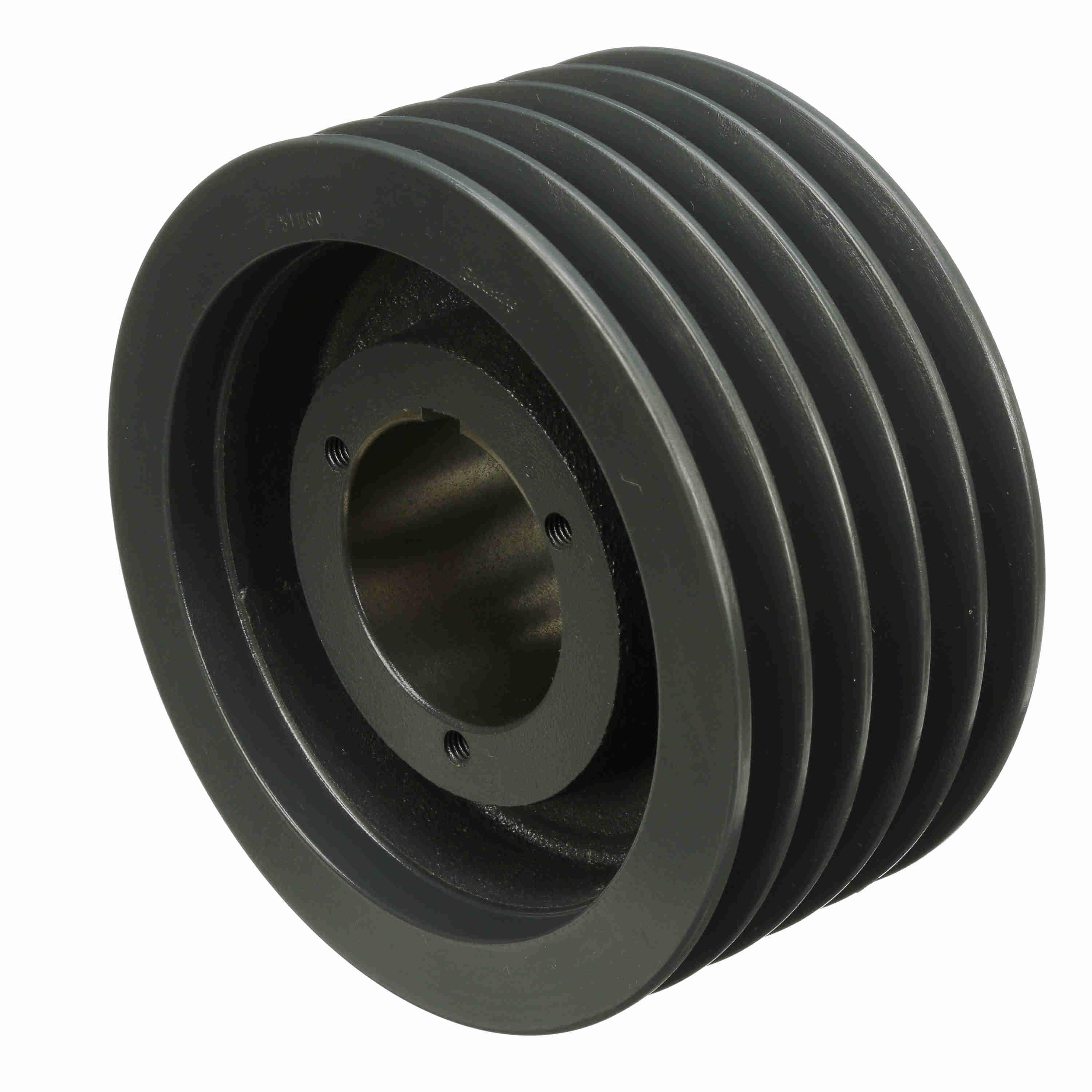

| B1 | 1002427 | 8.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Web | Split Taper | Cast Iron | €635.65 | |
| C1 | 1002484 | 8.95" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Web | Split Taper | Cast Iron | €674.40 | |
| D1 | 1009513 | 9 1/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €1,227.19 | |
| E1 | 1009570 | 9 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €1,019.06 | |
| F1 | 1002609 | 9 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €715.68 | |
| G1 | 1009620 | 9 3/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | Split Taper | Cast Iron | €1,349.67 | |
| H1 | 1009679 | 9 4/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,737.65 | |
| I1 | 1009463 | 9" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Web | - | Cast Iron | €1,220.09 | |
| J1 | 1002542 | 9.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €599.94 | |
| K1 | 1009786 | 10 1/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,052.38 | |
| L1 | 1009844 | 10 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €2,346.27 | |
| M1 | 1009893 | 10 3/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,186.47 | |
| N1 | 1009737 | 10" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,108.63 | |
| O1 | 1010016 | 11 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,313.93 | |
| O1 | 1010065 | 11 4/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,320.14 | |

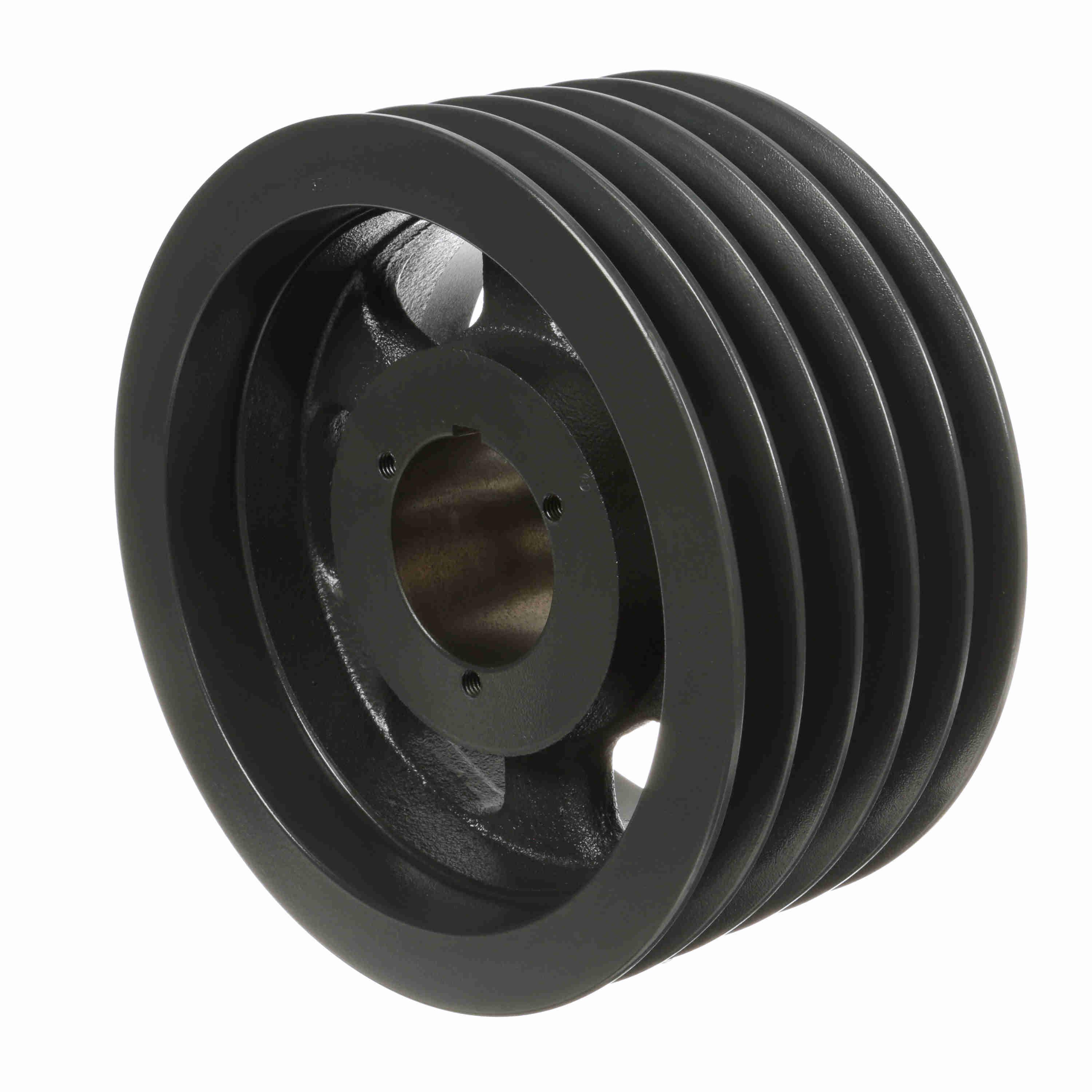

| P1 | 1009950 | 11" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,831.79 | |
| Q1 | 1002666 | 11.35" | 1" to 2 5/8" | 4" | 4 29/64" | Arm Type 13 | Split Taper | Cast Iron | €790.68 | |
| R1 | 1010123 | 12 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €1,327.60 | |
| S1 | 1002724 | 12 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €844.96 | |
| T1 | 1010180 | 13 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €3,061.61 | |

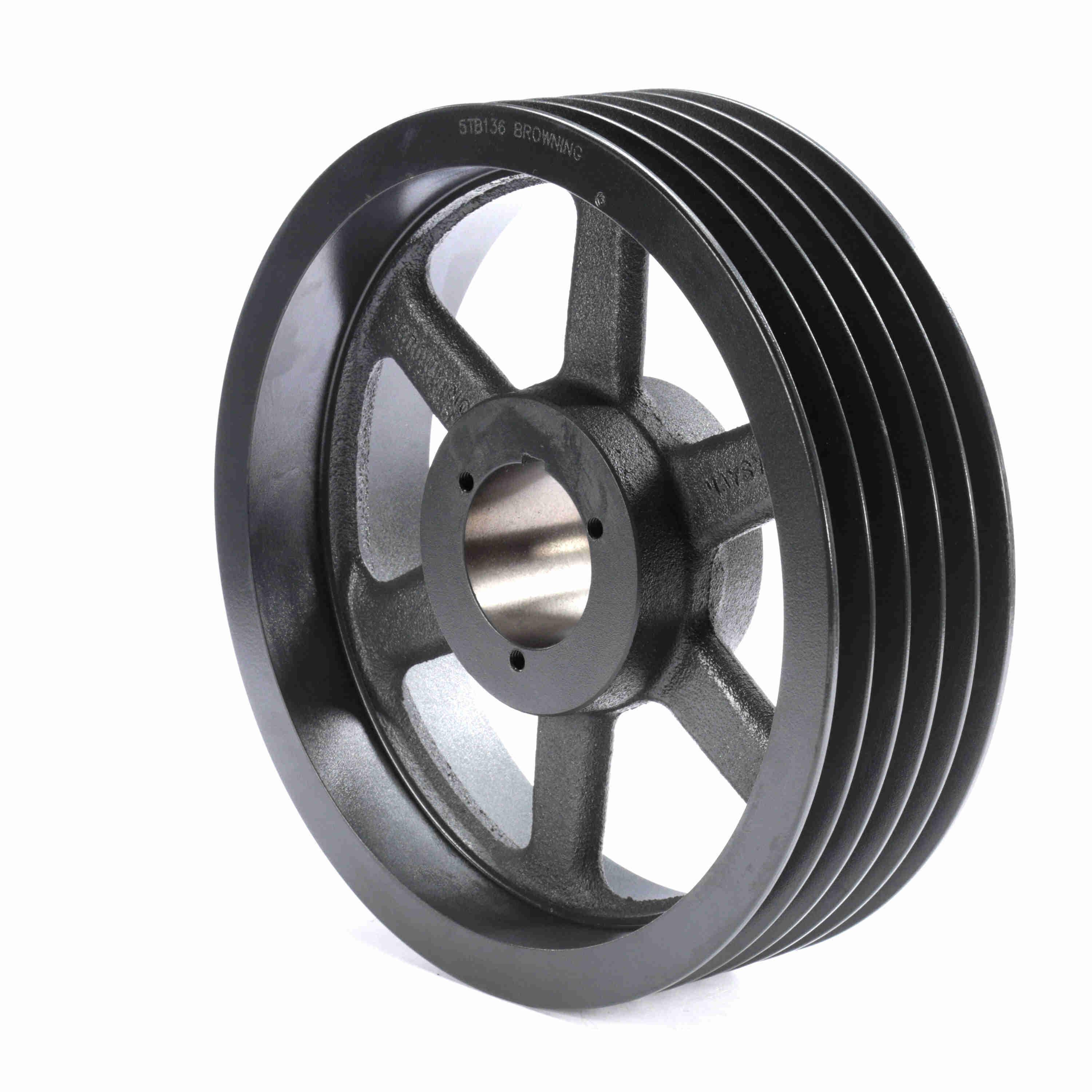

| U1 | 1002781 | 13.95" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €1,226.08 | |
| V1 | 1002849 | 15 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €1,363.30 | |
| W1 | 1010248 | 16 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €2,537.08 | |
| X1 | 1002906 | 16.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €1,519.56 | |
| Y1 | 1002963 | 18 3/4" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €1,675.73 | |
| W1 | 1010305 | 20 2/5" | 1" to 2 5/8" | 5 1/4" | 5 1/4" | Type 15 Arm | Split Taper | Cast Iron | €5,007.19 | |
| Z1 | 1003029 | 20.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €2,820.02 | |
| A2 | 1003086 | 25.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €2,692.22 | |
| A2 | 1003144 | 30.35" | 1" to 2 5/8" | 4" | 4 13/32" | Type 13 Arm | Split Taper | Cast Iron | €2,925.19 |
