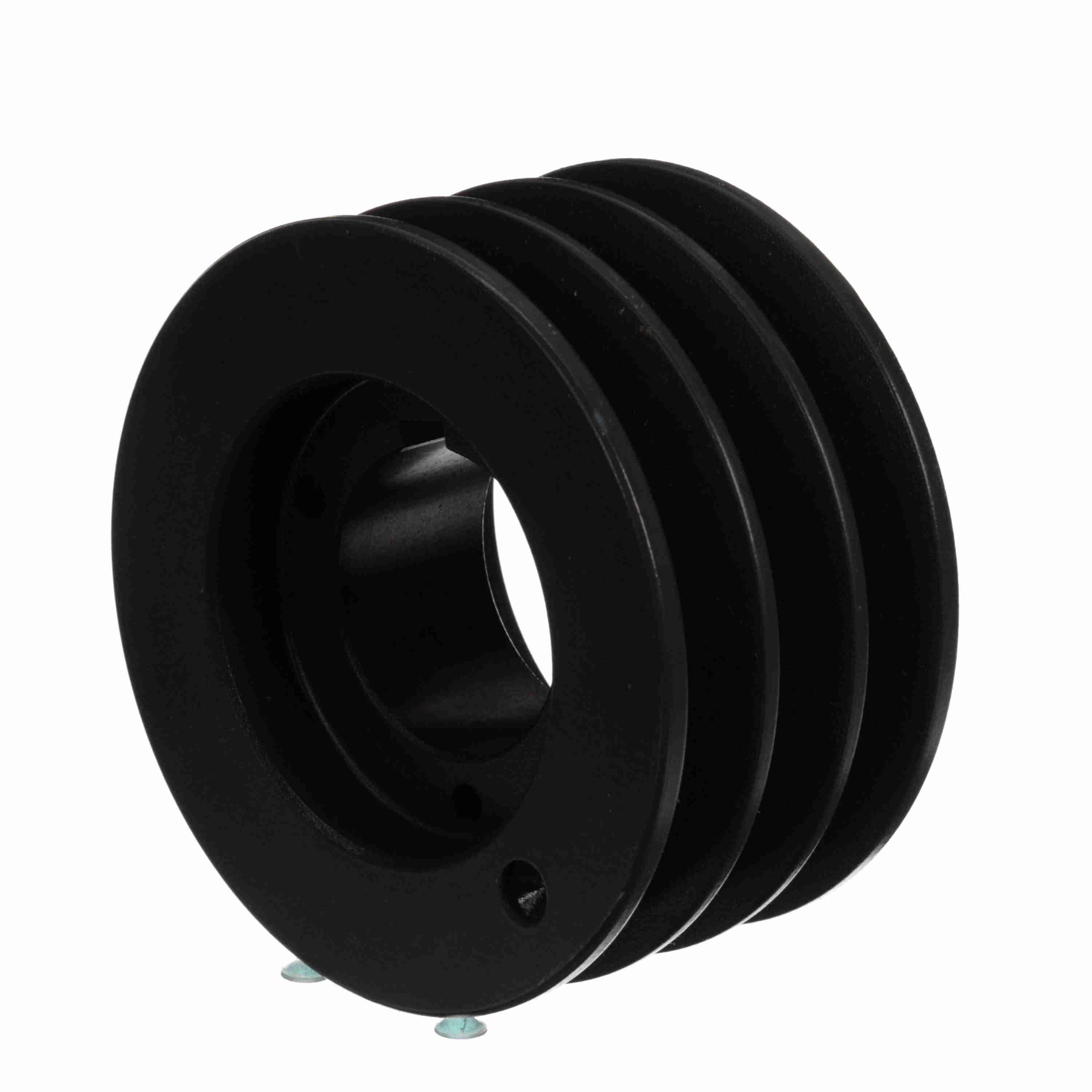

BROWNING 1001502 3TB44 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron, 4-3/4 in OD, 1/2 to 1-3/4 in Bore Dia, P1 Bushing Type
Item: AZ9ZPZModel: 1001502Cross Ref: 3TB44
7 In Stock
4 3/4"
Ships within 2 days via
€228.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 2 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 2/5" |
| Min. Pitch Dia. | 4" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 4 3/4" |
| Overall Length | 2 45/64" |
| Pitch Dia. | 4 1/5" |
| Pitch Dia. (b) | 4.7" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 2.5 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1001262 | 3 2/5" | 2 1/2" | 3/4" to 1 3/4" | Type 3 | 3 3/5" | 3 1/5" | 3.9" | P2 | €192.39 | |
 |
1001627 | 4 3/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 4 4/5" | 4 2/5" | 5.1" | P1 | €275.37 | |
 |
1002104 | 6 1/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 6 2/5" | 6" | 6.7" | P1 | €393.43 | |
 |
1002161 | 6 2/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | - | - | 6.9" | P1 | €350.09 | |
 |
1002286 | 6 4/5" | 2 1/2" | 3/4" to 2 11/16" | Type 13 Web | 7" | 6 3/5" | 7.3" | Q1 | €238.76 | |
 |
1001320 | 3 3/5" | 2 1/2" | 1/2" to 1 3/4" | Type 5 | 3 4/5" | 3 2/5" | 4.1" | P1 | €205.25 | |
 |
1001809 | 5 1/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 5 2/5" | 5" | 5.7" | P1 | €294.84 |
