BROWNING TB Series Gripbelt Sheaves With Split Taper Bushings, 3 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1| Style | Model | Pitch Dia. | Face Width | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1001205 | 3 1/5" | 2 1/2" | 3/4" to 1 3/4" | Type 3 | - | - | 3.7" | P2 | €184.49 | |
| B | 1001262 | 3 2/5" | 2 1/2" | 3/4" to 1 3/4" | Type 3 | 3 3/5" | 3 1/5" | 3.9" | P2 | €192.39 | |
| C | 1001320 | 3 3/5" | 2 1/2" | 1/2" to 1 3/4" | Type 5 | 3 4/5" | 3 2/5" | 4.1" | P1 | €205.25 | |
| D | 1001387 | 3 4/5" | 2 1/2" | 1/2" to 1 3/4" | - | 4" | 3 3/5" | 4.3" | P1 | €213.13 | |
| E | 1001502 | 4 1/5" | 2 1/2" | 1/2" to 1 3/4" | - | 4 2/5" | 4" | 4.7" | P1 | €228.81 | |

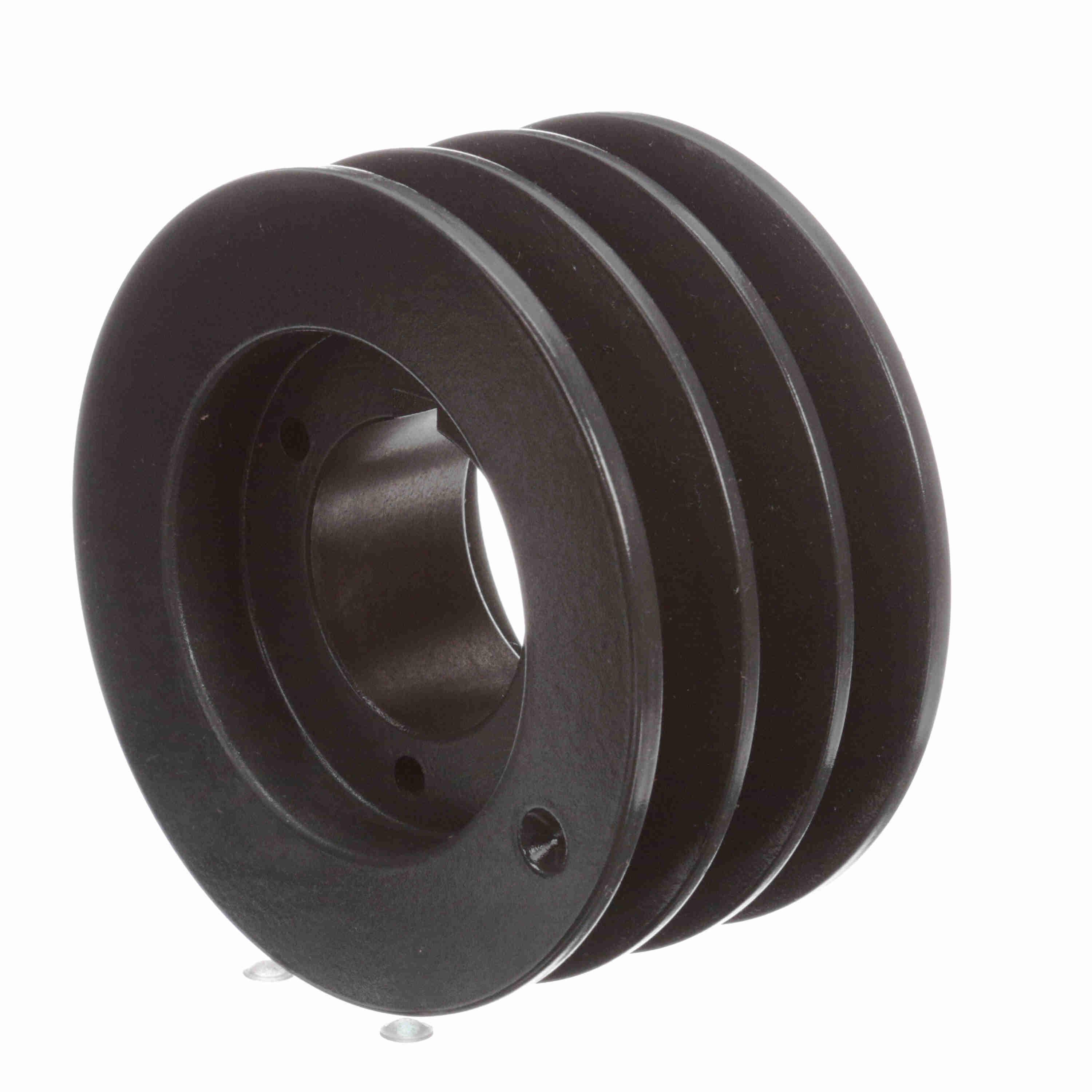

| F | 1001569 | 4 2/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 4 3/5" | 4 1/5" | 4.9" | P1 | €267.30 | |
| G | 1001627 | 4 3/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 4 4/5" | 4 2/5" | 5.1" | P1 | €275.37 | |
| H | 1001684 | 4 4/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 5" | 4 3/5" | 5.3" | P1 | €279.13 | |

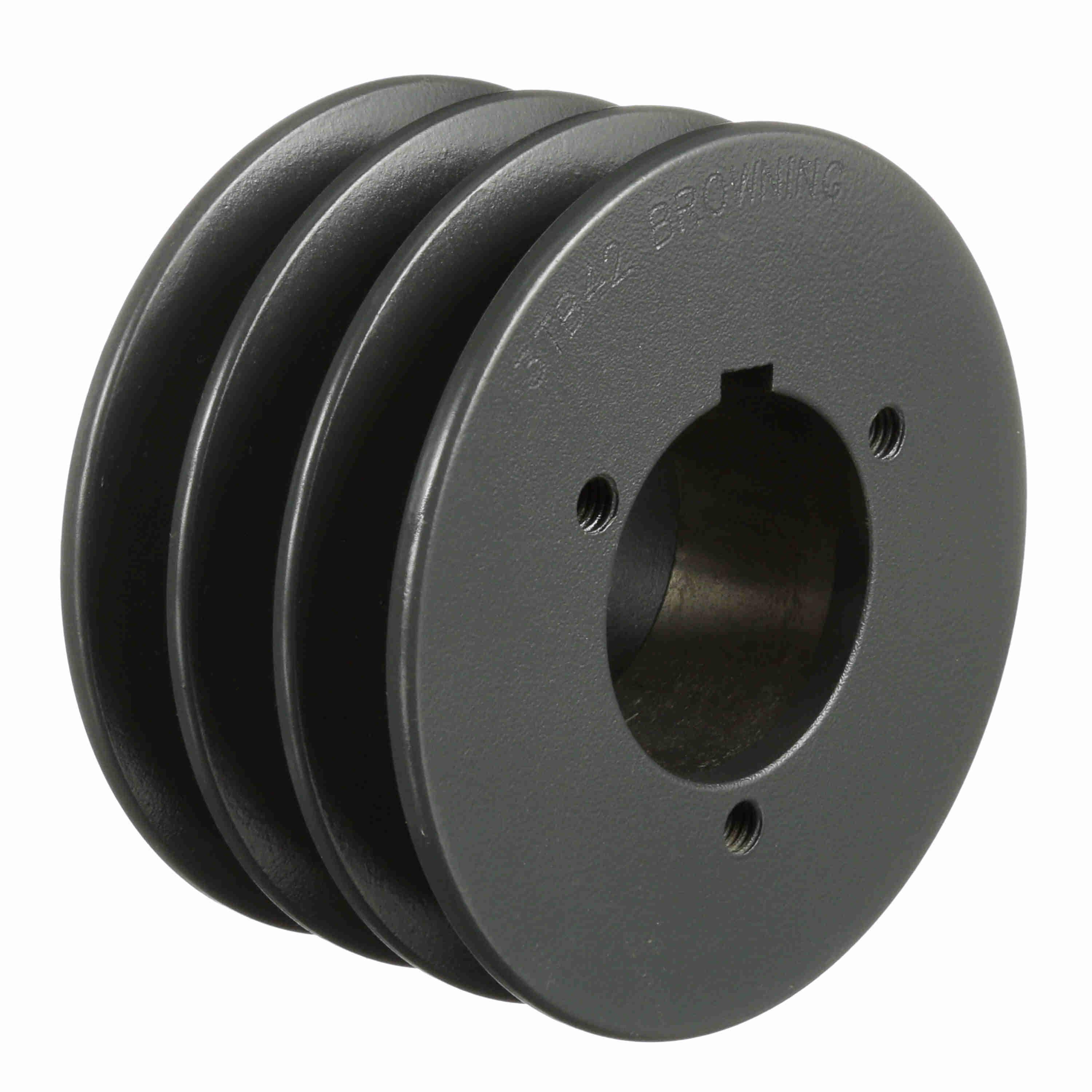

| I | 1001445 | 4" | 2 1/2" | 1/2" to 1 3/4" | Type 5 | 4 1/5" | 3 4/5" | 4 1/2" | P1 | €221.04 | |
| J | 1001809 | 5 1/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 5 2/5" | 5" | 5.7" | P1 | €294.84 | |
| K | 1001866 | 5 2/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 5 3/5" | 5 1/5" | 5.9" | P1 | €302.79 | |
| L | 1001924 | 5 3/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 5 4/5" | 5 2/5" | 6.1" | P1 | €357.32 | |
| M | 1001981 | 5 4/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 6" | 5 3/5" | 6.3" | P1 | €366.23 | |
| N | 1001742 | 5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 5 1/5" | 4 4/5" | 5 1/2" | P1 | €287.05 | |
| O | 1002104 | 6 1/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | 6 2/5" | 6" | 6.7" | P1 | €393.43 | |
| P | 1002161 | 6 2/5" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | - | - | 6.9" | P1 | €350.09 | |
| Q | 1002229 | 6 3/5" | 2 7/16" | 1/2" to 1 3/4" | Type 13 Web | 6 4/5" | 6 2/5" | 7.1" | P1 | €352.70 | |

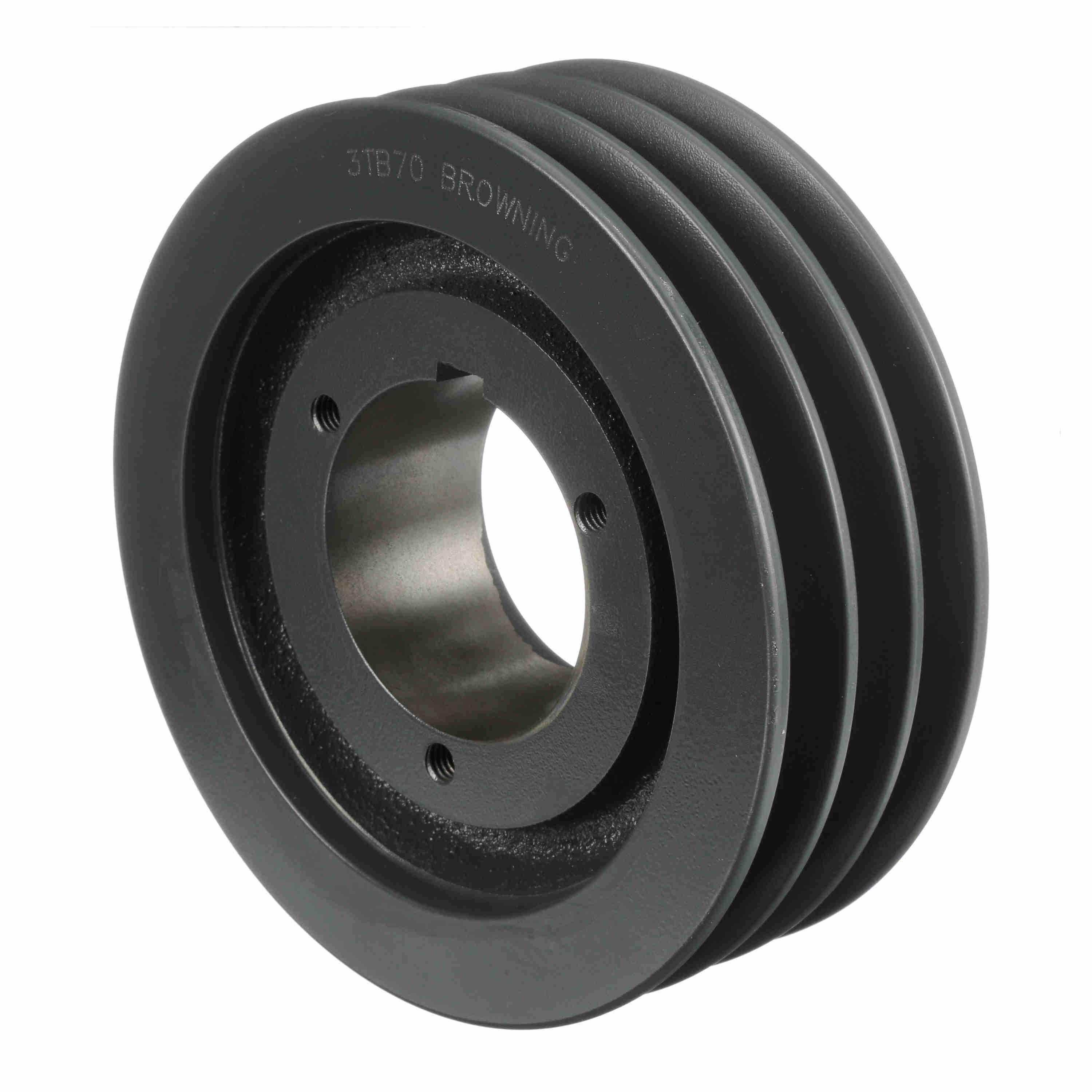

| R | 1002286 | 6 4/5" | 2 1/2" | 3/4" to 2 11/16" | Type 13 Web | 7" | 6 3/5" | 7.3" | Q1 | €238.76 | |
| S | 1002047 | 6" | 2 1/2" | 1/2" to 1 3/4" | Type 13 Web | - | - | 6 1/2" | P1 | €375.33 | |
| T | 1002344 | 7 1/5" | 2 7/16" | 3/4" to 2 11/16" | Type 13 Web | 7 2/5" | 7" | 7.7" | Q1 | €244.26 | |
| U | 1002401 | 7 4/5" | 2 7/16" | 3/4" to 2 11/16" | Type 13 Web | 8" | 7 3/5" | 8.3" | Q1 | €255.15 | |
| V | 1002468 | 8 2/5" | 2 1/2" | 3/4" to 2 11/16" | Type 13 Web | 8 3/5" | 8 1/5" | 8.9" | Q1 | €277.07 | |
| W | 1002526 | 8 4/5" | 2 7/16" | 3/4" to 2 11/16" | Arm Type 13 | 9" | 8 3/5" | 9.3" | Q1 | €288.03 | |
| X | 1002583 | 9 1/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | 9 2/5" | 9" | 9.7" | Q1 | €298.94 | |
| Y | 1002641 | 10 4/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | 11" | 10 3/5" | 11.3" | Q1 | €353.57 | |

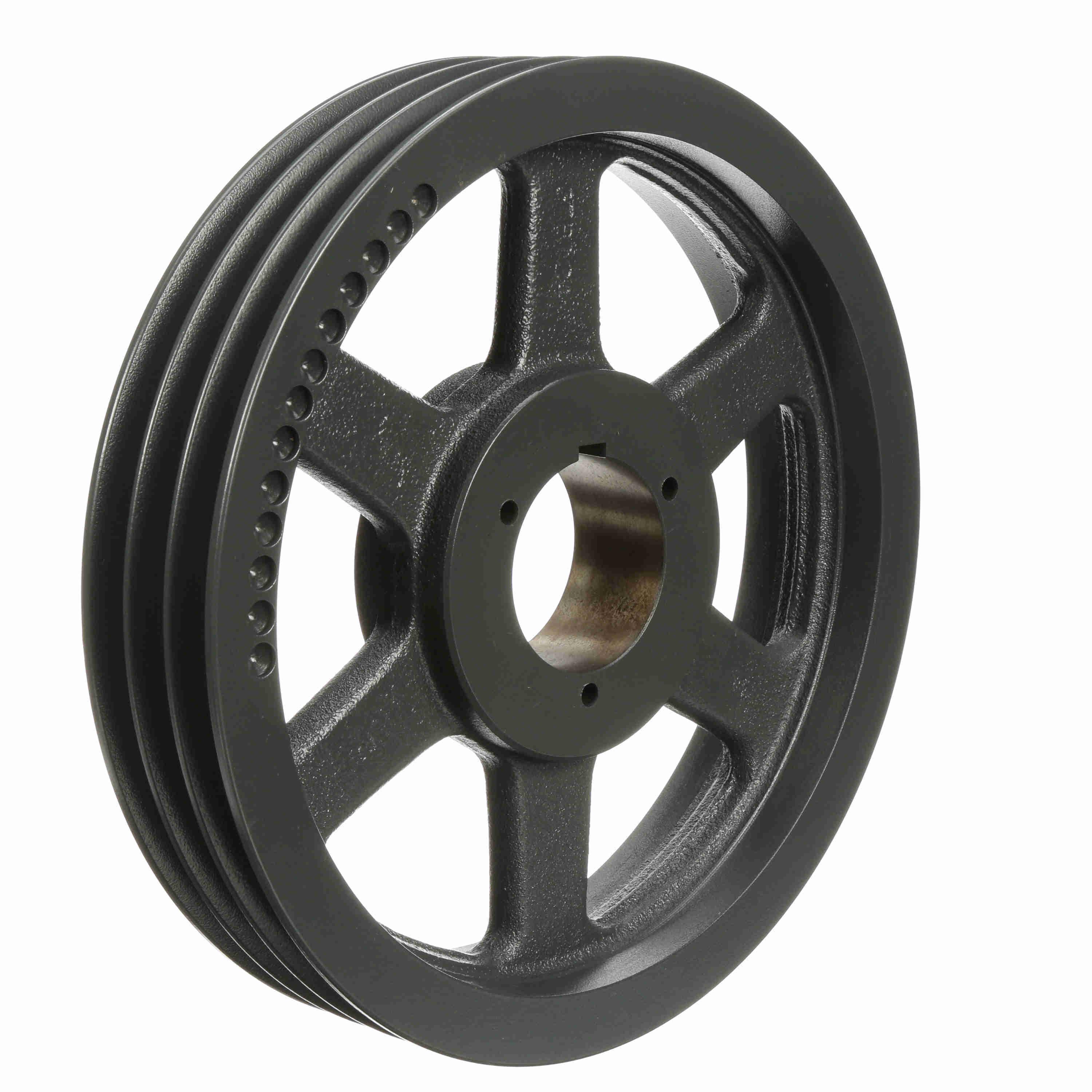

| Z | 1002708 | 12 1/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | 12 2/5" | 12" | 12.7" | Q1 | €408.24 | |
| A1 | 1002765 | 13 2/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | - | - | 13.9" | Q1 | €441.05 | |

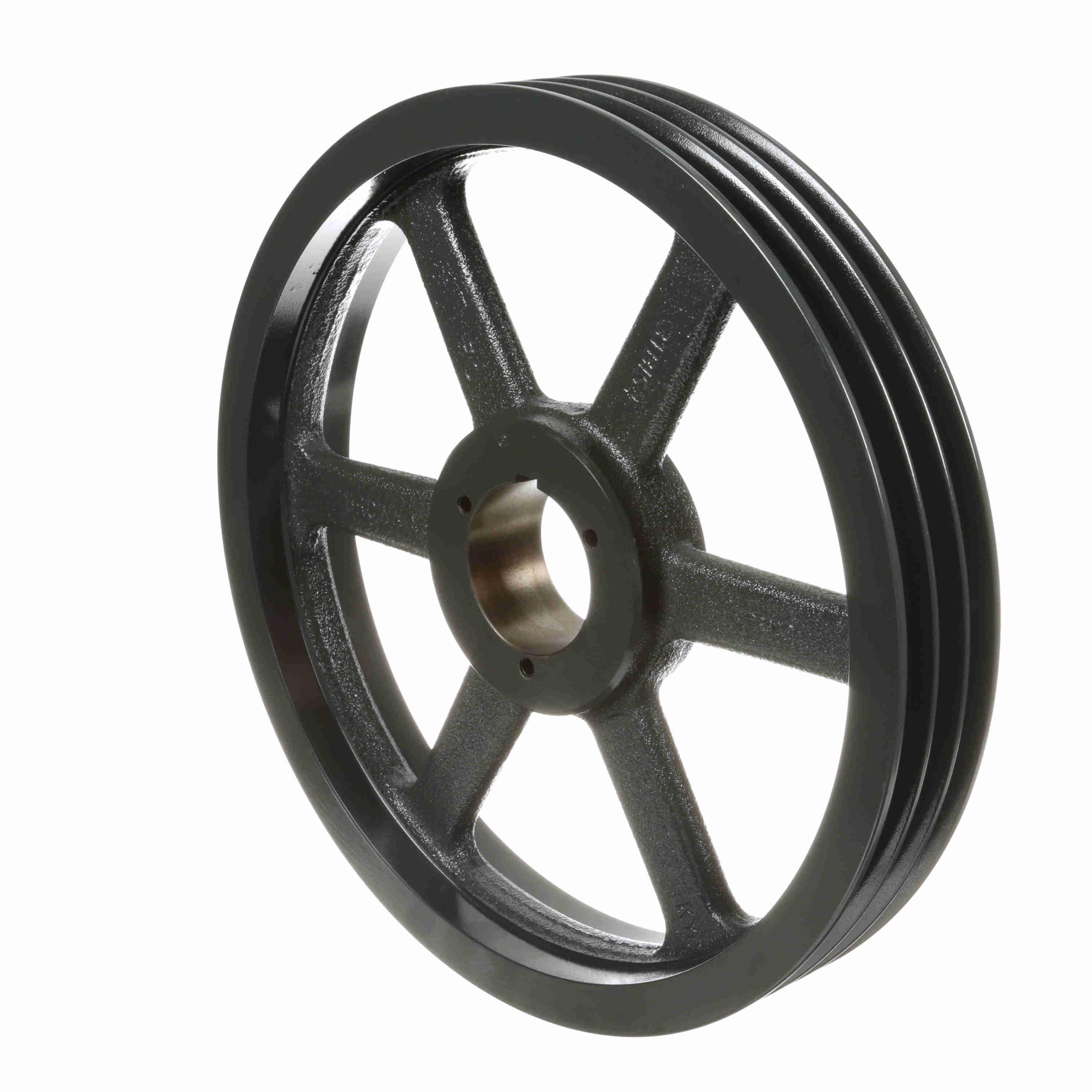

| B1 | 1002823 | 15 1/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | 15 2/5" | 15" | 15.7" | Q1 | €561.32 | |
| C1 | 1002880 | 15 4/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | - | - | 16.3" | Q1 | €680.75 | |
| D1 | 1002948 | 18 1/5" | 2 1/2" | 3/4" to 2 11/16" | - | 18 2/5" | 18" | 18.7" | Q1 | €681.28 | |
| E1 | 1003003 | 19 4/5" | 2 1/2" | 3/4" to 2 11/16" | Arm Type 13 | 20" | 19 1/2" | 20.3" | Q1 | €976.57 | |
| F1 | 1003060 | 24 4/5" | 2 1/2" | 3/4" to 2 11/16" | Type 13 Arm | - | - | 25.3" | Q1 | €1,413.35 | |
| G1 | 1003128 | 29 4/5" | 2 7/16" | 3/4" to 2 11/16" | Arm Type 13 | 30" | 29 1/2" | 30.3" | Q1 | €1,726.92 | |
| G1 | 1003185 | 37 4/5" | 2 1/2" | 3/4" to 2 11/16" | Type 13 Arm | - | - | 38.3" | Q1 | €2,100.99 |
