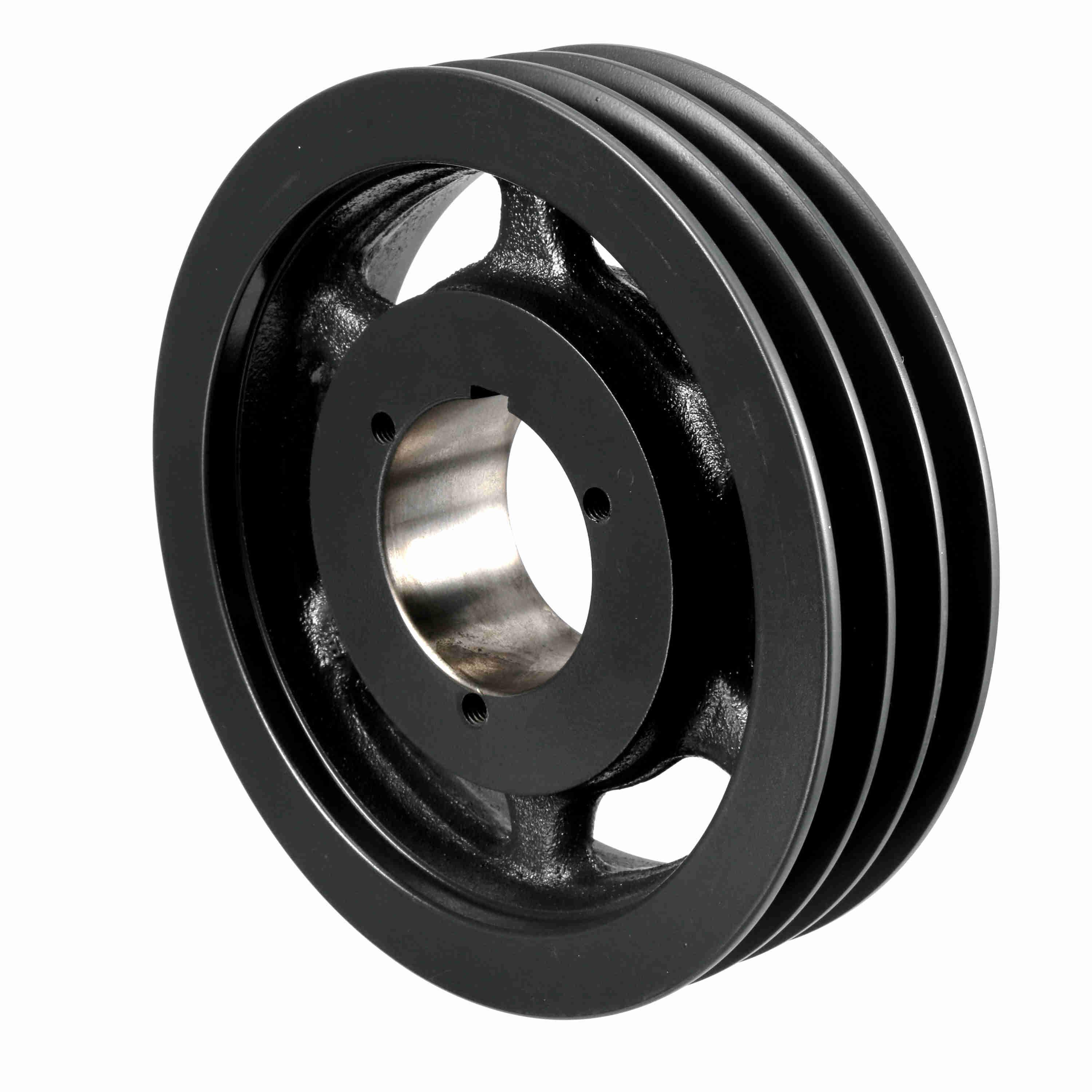

BROWNING 1002526 3TB90 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
9.35"
Get it by Tuesday, Dec 23
€288.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2 7/16" |
| Hub Projection | 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9" |
| Min. Pitch Dia. | 8 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 9.35" |
| Overall Length | 3 11/64" |
| Pitch Dia. (a) | 8 4/5" |
| Pitch Dia. (b) | 9.3" |
| Series | TB Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 13 |
| Weight | 18.1 lbs. |
Shipping Info:
| Ship weight (kg) | 8.01 |
| Ship height (cm) | 23.57 |
| Ship length (cm) | 8.05 |
| Ship width (cm) | 23.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1001262 | 3.95" | 3/4" to 1 3/4" | 2 1/2" | 3 49/64" | Type 3 | Split Taper | Cast Iron | €192.39 | |
 |
1001627 | 5.15" | 1/2" to 1 3/4" | 2 1/2" | 2 45/64" | Type 13 Web | Split Taper | Cast Iron | €275.37 | |
 |
1002104 | 6 3/4" | 1/2" to 1 3/4" | 2 1/2" | 2 45/64" | Type 13 Web | Split Taper | Cast Iron | €393.43 | |
 |
1002161 | 6.95" | 1/2" to 1 3/4" | 2 1/2" | 2 45/64" | Type 13 Web | Split Taper | Cast Iron | €350.09 | |
 |
1002286 | 7.35" | 3/4" to 2 11/16" | 2 1/2" | 3 13/64" | Type 13 Web | Split Taper | Cast Iron | €238.76 | |
 |
1001320 | 4.15" | 1/2" to 1 3/4" | 2 1/2" | 3 21/64" | Type 5 | Split Taper | Cast Iron | €205.25 | |
 |
1001809 | 5 3/4" | 1/2" to 1 3/4" | 2 1/2" | 2 45/64" | Type 13 Web | Split Taper | Cast Iron | €294.84 |
