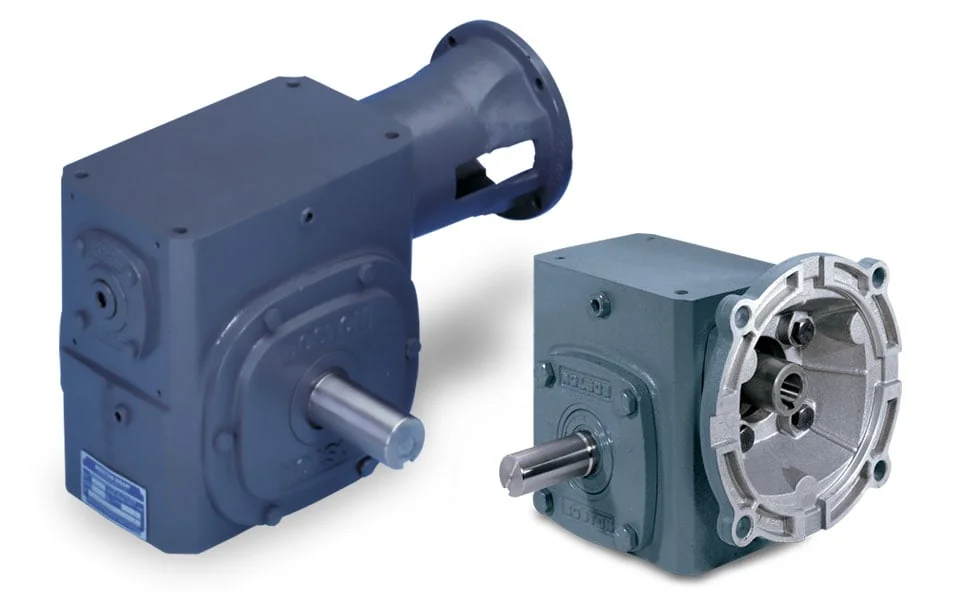

BOSTON GEAR 713-60-G Reducer, 0.5 Inch Size, 0.625 Inch Dia., Left Side

Item: AK8JCPModel: 713-60-G
7 In Stock
1.33"
60:1
G

Ships within 2 days via

€902.48 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Reducer
Base To Centerline Of Input Shaft 3 3/64"
Base To Centerline Of Output Shaft 1 23/32"
Base To Shaft Center Height With High Vert. Base Kit 3.56"
Base To Shaft Center Height With Low Vert. Base Kit 2.31"
Base To Shaft Center Height With Std. Base Kit 3.47"
Base To Shaft Center Height With Vert. "j" Base Kit 2.94"
Bolt Center Length 4 3/8"
Bolt Center Width 3 5/16"
Bolt Centers With Std. Base Kit 4 3/8" x 3 5/16"
Bolt Centers With Vertical "j" Base Kit 6.41" x 2"
Bolt Centers With Vertical Base Kits 6.16" x 3 1/4"
Box Height 4 21/32"
Box Length 4 1/4"
Box Width 2 7/8"
Center Distance 1.33"
Family Name Std Unit
Fan Cooled No
Housing Material Cast Iron
Hp @ Rpm 0.1666667 hp @ 1200 RPM, 0.1666667 hp @ 1800 RPM
Input (shaft Or Bore) Size 1/2"
Input Configuration Shaft Input
Input Hp @ Rpm 0.171 hp @ 1150 RPM, 0.22 hp @ 1750 RPM
Max. Input Hp @ 100 Rpm 21/1000 hp
Max. Overhung Load @ 1750 Rpm 200 lbs.-in.
Max. Thrust Load @ 1150 Rpm 300 lbs.-in.
Motor Application General Purpose
Output (shaft Or Bore) Size 5/8"
Output Configuration Left Output
Output Rpm @ 1750 Rpm Input 29.2 RPM
Ratio 60:1
Reduction Type Single Reduction
Shaft Assembly Code G
Torque Out @ 1150 Rpm 201 lbs.-in.
Torque Out @ 1750 Rpm 271 lbs.-in.
Use With 713
Washdown Duty No
Worm Position Universal

Shipping Info:

Ship weight (kg) 5
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelMax. Input HpGear RatioWorm Center DistanceOverhung LoadBase To Shaft CenterFinishOutput Shaft Dia.Input RpmPrice
BOSTON GEAR 710-50-G Reducer, Single Reduction, 50:1 Ratio, No Base | AB2BVJ 1L244 710-50-G4/25 hp5011"150 lbs.1.31"Epoxy Paint1/2"1750 RPM€1,018.19
BOSTON GEAR 710-40-G Reducer, Single Reduction, 40:1 Ratio, No Base | AB2BVK 1L245 710-40-G4/25 hp4011"150 lbs.1.31"Epoxy Paint1/2"1750 RPM€1,073.04
BOSTON GEAR 710-20-G Reducer, Single Reduction, 20:1 Ratio, No Base | AB2BVL 1L247 710-20-G1/4 hp2011"150 lbs.-Epoxy Paint1/2"1750 RPM€955.36
BOSTON GEAR 713-40-G Reducer, Single Reduction, 40:1 Ratio, No Base | AB2BVV 1L259 713-40-G4/25 hp4011.33"200 lbs.1.75"Epoxy Paint5/8"1750 RPM€1,046.75
BOSTON GEAR 713-25-G Reducer, Single Reduction, 25:1 Ratio, No Base | AB2BVW 1L261 713-25-G3/10 hp2511.33"200 lbs.1.75"Epoxy Paint5/8"1750 RPM€1,147.93
BOSTON GEAR 713-20-G Reducer, Single Reduction, 20:1 Ratio, No Base | AB2BVX 1L262 713-20-G3/10 hp20:11.33"200 lbs.1.75"Epoxy Paint5/8"87.5 RPM€1,070.75
BOSTON GEAR 713-50-G Reducer, Single Reduction, 50:1 Ratio, No Base | AB2BVY 1L265 713-50-G4/25 hp50:11.33"200 lbs.1.75"Epoxy Paint5/8"35 RPM€983.80
