BALDOR MOTOR VNM3538 Three Phase Enclosed Motor, 208-230/460V, 1800 RPM, 60 Hz, 0.5 hp, TENV, 56C Frame
1A
1800 RPM
0.5 hp
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€893.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 2.1-2/1A |
| Amps @ 208v | 2.1A |
| Base Type | Not Applicable |
| Bearing Type | Ball |
| Break-down Torque | 7 lbs.-ft. |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Enclosure Design | TENV |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.1-2/1A |
| Full Load Torque | 1.5 lbs.-ft. |
| Full Load Torque | 1.5 ft.-lbs. |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Inverter Rated | No |
| Lead | 9#18 |
| Length Less Shaft | 8 3/8" |
| Line-line Res. @ 25° C | 33.4 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 5.3 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical |
| Motor Service Factor | 1 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | C Face, Footless |
| Multiplier | K |
| Nameplate Rpm | 1720 RPM |
| Nema Design | B |
| Nema/iec | NEMA |
| No Load Amps | 0.8A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 74%, 75.5% |
| Overall Length | 10 1/4" |
| Part Winding Start Capable | No |
| Phase | 3 |
| Power Factor | 75 |
| Product Datasheet | baldor-motor-vnm3538.pdf |
| Proprietary | No |
| Pull-up Torque | 4.5 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | R |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 7/8" |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 6.5A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise @ Rated Load | 106°C |
| Thermal Protection | None |
| Type | 3416M |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 35.09 |
| Ship width (cm) | 27.47 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 5.3 LB-FT
- Nameplate No.: NP1256L
- Pull-Up Torque: 4.5 LB-FT
- Starting Current: 6.5 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Mounting Type | Service Factor | Nameplate Rpm | Motor Type | Insulation Class | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

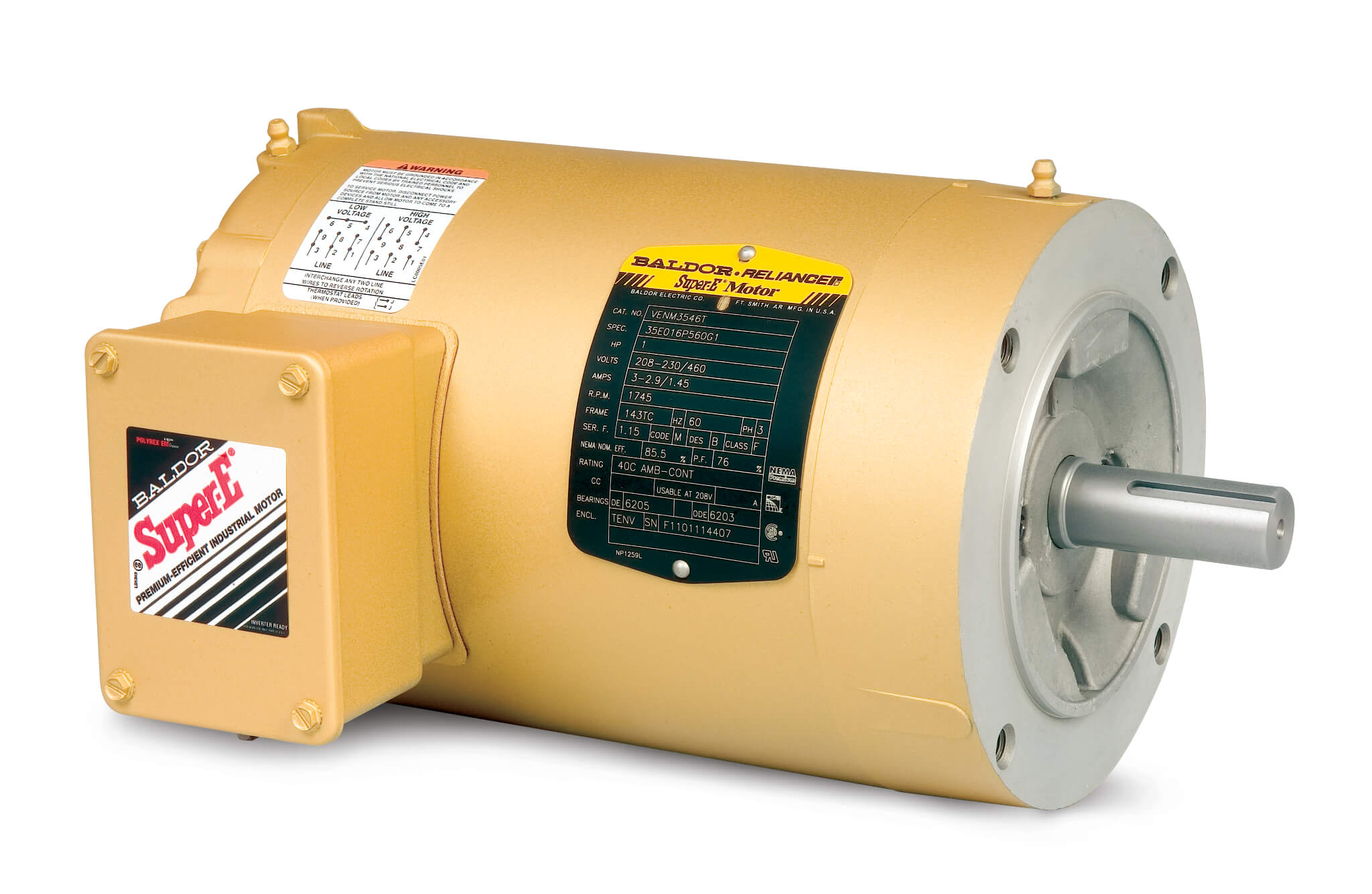

KENM3454 | 230/460V | 1/4 hp | C Face, Footless | 1.15 | 1750 RPM | Three Phase | Class F | Steel | €799.91 | |
|
KENM3534 | 230/460V | 1/3 hp | C Face, Footless | 1.15 | 1750 RPM | Three Phase | Class F | Steel | €882.26 | |
|
KENM3535 | 230/460V | 1/3 hp | C Face, Footless | 1.15 | 1150 RPM | Three Phase | Class F | Steel | €1,296.89 | |
 |
KM3454 | 230/460V | 1/4 hp | C Face, Footless | 1.35 | 1735 RPM | Three Phase | Class B | Steel | €740.94 | |
|
KM3457 | 230/460V | 1/3 hp | C Face, Footless | 1.35 | 3450 RPM | Three Phase | Class B | Steel | €756.78 | |
|
KNM3454 | 208-230/460V | 1/4 hp | C Face, Footless | 1 | 1725 RPM | Three Phase | Class F | Steel | €542.42 | |
|
KNM3534 | 208-230/460V | 1/3 hp | C Face, Footless | 1 | 1725 RPM | Three Phase | Class B | Steel | €600.17 |
