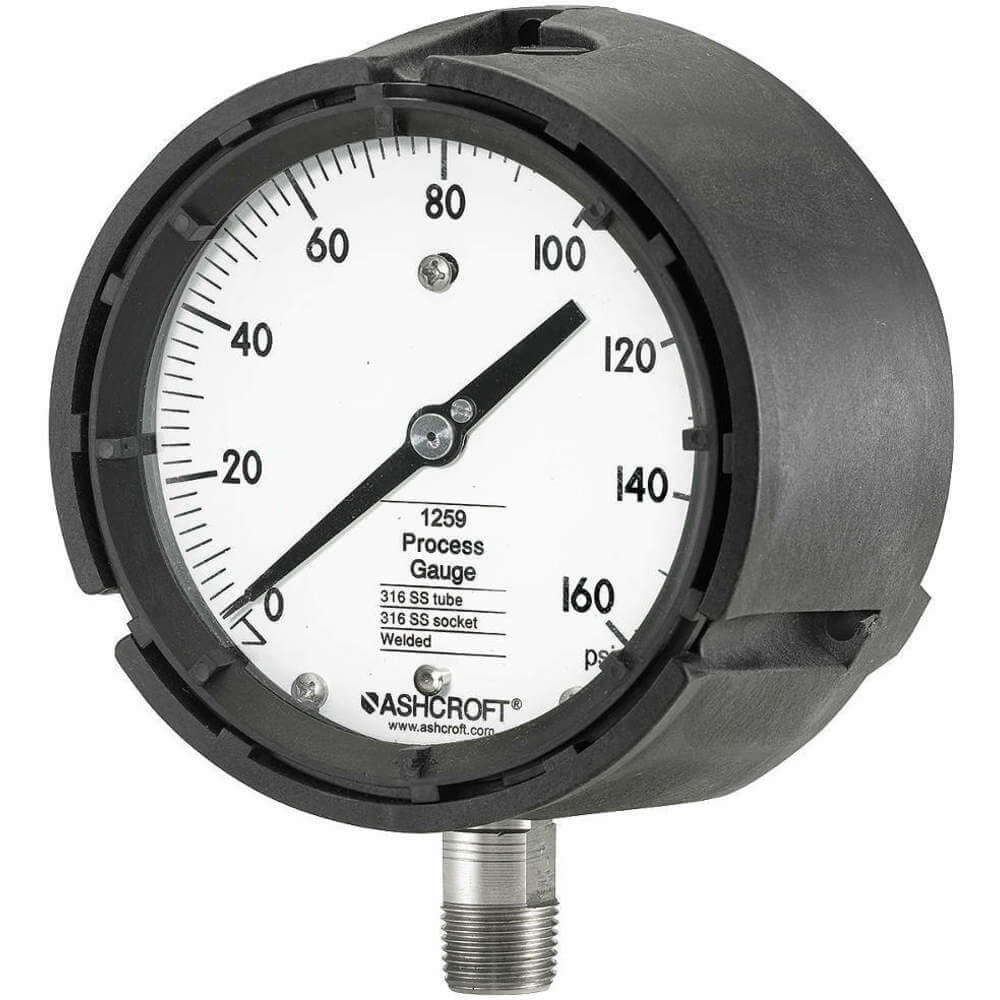

ASHCROFT 451259SD04L160# Process Pressure Gauge, 0 to 160 PSI, White, 4 1/2 in Dial, 1/2 in NPT Male, Bottom, PBT
Item: AE6HEJModel: 451259SD04L160#Cross Ref: 5RYA6
7 In Stock
Ships within 2 days via
10.00% off
€171.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -20°F to +200°F |
| Application | Chemical Industries, Mining, Oil And Gas Industry, Power Industries, Refrigeration, Turbines And Compressors, Water Pressure Testing, Water Purification Or Irrigation |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Polybutylene Terephthalate |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5.37" |
| Burst Pressure | 1400 psi |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Solid Front With Pressure Relief Back |
| Case Depth | 3 9/25" |
| Case Dia. | 5.81" |
| Case Material | PBT |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Chemical And Petrochemical, Metals, Natural Gas And LNG, Oil And Gas, Water And Wastewater |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Color | White |
| Field Fillable | No |
| For Use With | Media Compatible With 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Color | Black |
| Gauge Case Material | Polybutylene Terephthalate |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Mounting Method | Surface |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Panel Mountable | Yes |
| Gauge Primary Range No.ed Graduations | 20 |
| Gauge Primary Range Units | Psi |
| Gauge Type | Process |
| Gauge Wetted Parts | Stainless Steel |
| Grade | Grade 316L |
| Graduations | 20 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Material Grade | Grade 316L |
| Mounting Hardware Included | No |
| Mounting Type | Remote Mount, Stem Mount, Surface Mount |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -50°F to +150°F |
| Panel Mount Characteristics | 3 0.24" Dia Holes On 5.37" Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 0 psi to 160 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 160 |
| Primary Scale Minor Graduations | 20 |
| Primary Scale Numeric Increments | 20 |
| Primary Scale Units | Psi |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Process Temperature Range | -20°F to +250°F |
| Range | 0 psi to 160 psi |
| Removable Bezel | No |
| Ring Material | Cam Lock Thermoplastic |
| Scale Type | Single |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | 1259 Series |
| Smallest Graduation | 20 psi |
| Socket Material | 316L Stainless Steel |
| Tube Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 8.53 |
| Ship length (cm) | 14.76 |
| Ship width (cm) | 14.76 |
| HS code | 9026208000 |
| Country of Origin | BR |
Product Variants
| Model | Pressure Range Type | Accuracy | Ip Rating, Nema Rating | Sensor Material | Lens Material | Process Temperature Range | Socket Material | Primary Scale Units | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 451259SD04LVAC | Compound | -0.5% to +0.5% | Not Rated | - | Glass | - | - | - | €202.72 | |
| 451259SD04LV/30# | Compound | -0.5% to +0.5% | Not Rated | 316L Stainless Steel | Glass | -20°F to +250°F | 316L Stainless Steel | In. Hg/psi | €202.72 | |
| 451259SD04LV/60# | Compound | -0.5% to +0.5% | Not Rated | 316L Stainless Steel | Glass | -20°F to +250°F | 316L Stainless Steel | In. Hg/psi | €202.72 | |
| 451259SD04LV/100# | Compound | -0.5% to +0.5% | Not Rated | 316L Stainless Steel | Glass | -20°F to +250°F | 316L Stainless Steel | In. Hg/psi | €191.36 | |
| 451259SD04LV/150# | Compound | -0.5% to +0.5% | Not Rated | 316L Stainless Steel | Glass | -20°F to +250°F | 316L Stainless Steel | In. Hg/psi | €191.36 | |
| 451259SD04YLXCY15 | Pressure | -0.5% to +0.5% | Not Rated | 316L Stainless Steel | Glass | -20°F to +250°F | 316L Stainless Steel | Psi | €190.58 | |
| 451259SD04L30# | Pressure | -0.5% to +0.5% | Not Rated | 316L Stainless Steel | Glass | -20°F to +250°F | 316L Stainless Steel | Psi | €190.58 |
