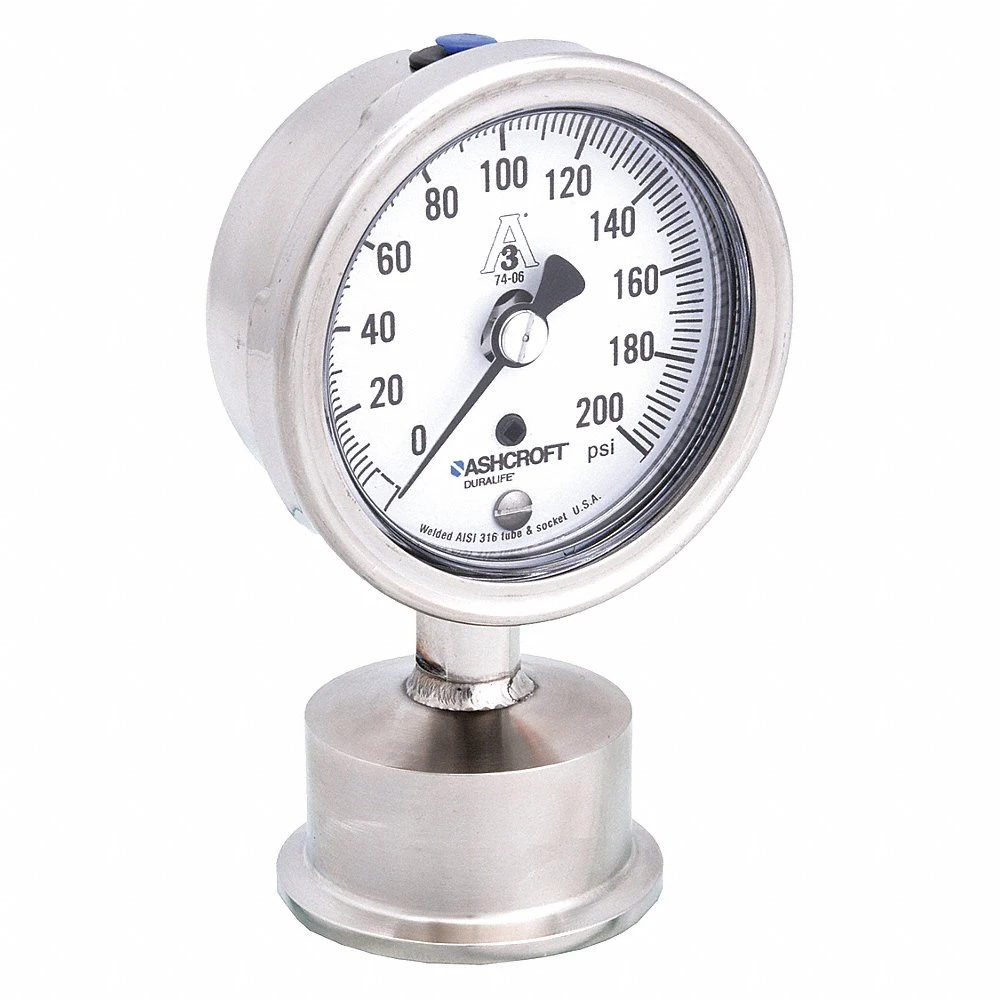

ASHCROFT 25-1032S-15L-200 Pressure Gauge, 0 To 200 PSI, 2 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, ±1.50% Accuracy | CN8YDT 2C621

ASHCROFT 25-1032S-15L-200 Pressure Gauge, 0 To 200 PSI, 2 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, +/-1.50% Accuracy

Item: CN8YDTModel: 25-1032S-15L-200Cross Ref: 2C621
7 In Stock
Pressure Range

Ships within 2 days via

€658.65
5.00% off
€625.72 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pressure Gauge
Accuracy -1.5% to +1.5%
Adjustable Pointer No
Ambient Operating Temp. -40°F to +150°F
Ambient Operating Temp. Range -40°F to +150°F
Ambient Temp. -40°F to +150°F
Application Biotechnology, Filtration Monitoring, Food Processing Industry, Medical, Pharmaceutical, OEM Applications , Sanitary
Basic Gauge Case Material Stainless Steel
Basic Gauge Lens Material Plastic
Basic Gauge Sensor Material Stainless Steel
Basic Gauge Socket Material Stainless Steel
Basic Gauge Wetted Parts Stainless Steel
Blowout Safety Back No
Calibration Certificate No
Calibration Certificate Included No
Case Color Metallic , Silver
Case Construction Open Front , Open Front Case
Case Depth 1 1/4"
Case Dia. 2 3/4" , 2.75"
Case Grade Grade 316L
Case Liquid None
Case Material Stainless Steel
Case Material Grade Grade 316L
Cleaned For Oxygen Service No
Color Silver
Compatible Process Media Dairy, Food, Pharmaceutical , Dairy, Food, Pharmaceuticals
Connection Location LOWER
Connection Size 1 1/2"
Connection Type Tri Clamp
Dia. 2 3/4"
Dial Color White Black , White, Black
Dial Size 2 1/2"
Dry Dampening Feature None
Field Fillable Yes
Filled With Glycerin
Freeze Resistant Movement No
Gauge Application Sanitary
Gauge Case Liquid None
Gauge Connection Location Bottom
Gauge Connection Size 1 1/2"
Gauge Connection Type Triclamp
Gauge Filled With Glycerin
Gauge Nominal Dial Size 2 1/2"
Gauge Panel Mountable No
Gauge Primary Range No.ed Graduations 20
Gauge Primary Range Units Psi
Graduations 20 psi
Hazardous Location Rating Not Rated
Included Vent Plug No
Ip Rating IP65
Ip Rating, Nema Rating IP65
Ip/nema Rating Nema Ip65
Lens Material Polycarbonate
Liquid Filled Yes
Liquid-filled Case No
Material Stainless Steel
Material Finish Electro Polished
Material Grade Grade 304 , Grade 316
Max. Pressure 200 psi
Mfr. Series 1032S Series
Mounting Type Stem Mount
Movement Material Stainless Steel
Movement Material Grade Grade 300
Nominal Dial Size 2 1/2"
Operating Temp. -40°F to +150°F
Panel - Mountable No
Pointer Color Black
Pointer Material Aluminum
Pressure 0 psi to 200 psi
Pressure And Vacuum Gauge Type Pressure Gauge
Pressure Gauge Type Sanitary Pressure Gauge
Pressure Type Pressure
Primary Display Range 0 to 200
Primary Pressure 0 to 200
Primary Range No.ed Graduations 20
Primary Range Smallest Graduation 2
Primary Range Units Psi
Primary Range Values 0 to 200
Primary Scale Minor Graduations 2
Primary Scale Numeric Increments 20
Primary Scale Units PSI
Primary Units Psi
Process Connection 1 1/2" Tri Clamp
Process Connection Location Bottom
Process Connection Size 1 1/2"
Process Connection Type Tri Clamp
Process Temp. 280°F
Range 0 psi to 200 psi
Removable Bezel No
Seal Fill Liquid Glycerin
Sensor Grade Grade 316
Sensor Material Stainless Steel
Sensor Material Grade Grade 316
Smallest Graduation 2 psi
Socket Grade Grade 316
Socket Material Stainless Steel
Socket Material Grade Grade 316
Type Pressure Gauge
Vibration Resistance None
Wetted Material Stainless Steel
Wetted Parts Grade Grade 316
Wetted Parts Material Stainless Steel

Shipping Info:

Ship weight (kg) 0.47
Ship height (cm)3.18
Ship length (cm)6.99
Ship width (cm)6.99
Country of OriginUS

Product Variants

ProductModelCase MaterialLens MaterialSocket MaterialSensor MaterialPressureProcess Connection SizeNominal Dial SizeProcess Connection TypePrice
ASHCROFT 351032S20L 60# Pressure Gauge 0 To 60 Psi 3-1/2 Inch 2in | AC3BYK 2RFL8 351032S20L 60#Stainless SteelPolycarbonate316L Stainless SteelStainless Steel0 psi to 60 psi2"3 1/2"Tri-Clamp€715.28
ASHCROFT 35 1005P XUL 02L 80# Pressure Gauge 0 To 80 Psi 3-1/2 Inch 1/4in | AE7AUH 5WJ62 35 1005P XUL 02L 80#ABSPolycarbonateBrassPhosphor Bronze0 psi to 80 psi1/4"3 1/2"NPT€39.71
ASHCROFT 251032SL15L100# Pressure Gauge, 0 To 100 PSI, 2 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, +/-2.5% Accuracy | CN8YBN 787ML8 251032SL15L100#Stainless SteelPolycarbonateStainless SteelStainless Steel0 psi to 100 psi1 1/2"2 1/2"Tri Clamp€579.48
ASHCROFT 25-1032S-15L-100 Pressure Gauge, 0 To 100 PSI, 2 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, ±1.50% Accuracy | CN8YBP 2C618 25-1032S-15L-100Stainless SteelPolycarbonateStainless SteelStainless Steel0 psi to 100 psi1 1/2"2 1/2"Tri Clamp€658.65
ASHCROFT 251032SL20L100# Pressure Gauge, 0 To 100 PSI, 2 1/2 Inch Dial, 2 Inch Tri-Clamp, +/-2% Accuracy, 1032S | CN8YBQ 787MM1 251032SL20L100#Stainless SteelPolycarbonateStainless SteelStainless Steel0 psi to 100 psi2"2 1/2"Tri Clamp€593.35
ASHCROFT 351032S15L100# Pressure Gauge, 0 To 100 PSI, 3 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, +/-2% Accuracy | CN8YBU 787MM2 351032S15L100#Stainless SteelPolycarbonateStainless SteelStainless Steel0 psi to 100 psi1 1/2"3 1/2"Tri Clamp€612.25
ASHCROFT 351032SL15L100# Pressure Gauge, 0 To 100 PSI, 3 1/2 Inch Dial, 1 1/2 Inch Tri-Clamp, +/-2.5% Accuracy | CN8YBV 787MM5 351032SL15L100#Stainless SteelPolycarbonateStainless SteelStainless Steel0 psi to 100 psi1 1/2"3 1/2"Tri Clamp€626.11
