SCHNEIDER ELECTRIC IEC Overload Relays
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1| Style | Model | Coil Voltage | Depth | Trip Class | Body Depth | Body Width | Kit Required For Retrofit Mtg. | Overall Height | Separate Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DPER21 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €44.03 | |
| B | LR3D10 | - | 70 mm | - | - | - | - | - | - | €141.41 | |
| C | LR2K0321 | - | 65 mm | - | - | - | - | - | - | €140.31 | |
| D | LR2D3553 | - | 121 mm | - | - | - | - | - | - | €259.88 | |
| E | LRD3365 | - | 115 mm | - | - | - | - | - | - | €311.06 | |
| F | LR3D14 | - | 70 mm | 10A | 2.76" | 1.77" | No | 2 3/5" | No | €139.15 | |
| B | LR3D16 | - | 70 mm | - | - | - | - | - | - | €157.25 | |
| B | LR3D21 | - | 70 mm | - | - | - | - | - | - | €156.91 | |
| B | LR3D22 | - | 70 mm | 10A | 2.76" | 1.77" | No | 2 3/5" | No | €133.48 | |
| G | LRD3322 | - | - | - | - | - | - | - | - | €237.66 | |
| H | LR3D07 | - | - | - | - | - | - | - | - | €146.22 | |
| B | LR3D08 | - | 70 mm | 10A | 2.76" | 1.77" | No | 2 3/5" | No | €136.61 | |
| I | LR3D12 | - | 70 mm | - | - | - | - | - | - | €150.18 | |
| J | DPER08 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €45.33 | |
| K | LR3D3555 | - | - | - | - | - | - | - | - | €261.30 | |
| L | LR3D06 | - | 70 mm | - | - | - | - | - | - | €135.74 | |
| M | LR9D01 | - | 79.9 mm | Class 5/10/20/30 | 3.15" | 1.77" | LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 | 2.85" | Additional Items Needed, Yes | - | RFQ
|
| N | DPER01 | - | 70 mm | Class 10A | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €45.27 | |
| O | DPER02 | - | - | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €44.86 | |
| P | DPER04 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €44.31 | |
| Q | DPER05 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €43.01 | |
| R | DPER06 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €47.53 | |
| S | LA7F407 | - | - | - | - | - | - | - | - | - | RFQ
|
| T | LR3D3561 | - | 121 mm | - | - | - | - | - | - | €304.55 | |
| U | LRD313 | - | 123 mm | - | - | - | - | - | - | €235.02 | |
| U | LRD318 | - | 123 mm | - | - | - | - | - | - | €259.82 | |
| U | LRD325L | - | 123 mm | - | - | - | - | - | - | €264.52 | |
| V | DPER07 | - | - | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €44.89 | |
| W | DPER10 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €49.43 | |
| X | DPER14 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €45.78 | |
| Y | DPER16 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €46.12 | |
| Z | LR3D325 | - | - | 10A | 4 21/25" | 2.17" | No | 2 19/25" | No | €256.12 | |
| A1 | DPER32 | - | - | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €70.70 | |
| B1 | DPER03 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €46.00 | |
| C1 | LR3D3563 | - | 121 mm | - | - | - | - | - | - | €305.71 | |
| D1 | DPER22 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €44.05 | |
| E1 | DPER12 | - | 70 mm | Class 10 | 2 19/25" | 1.77" | LAD9R1 | 2 3/5" | Additional Items Needed, Yes | €47.02 | |
| F1 | LAD703F | - | - | - | - | - | - | - | - | €105.01 | |
| G1 | LR3D32 | - | 70 mm | - | - | - | - | - | - | €176.13 | |
| H1 | LR9D5567 | - | 125 mm | - | - | - | - | - | - | €666.38 | |
| U | LRD325 | - | 123 mm | - | - | - | - | - | - | €241.97 | |
| H1 | LR9D5569 | - | 125 mm | - | - | - | - | - | - | €639.83 | |
| I1 | LUCA05BL | 24V DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €281.52 | |
| J1 | LUCB18BL | 24V DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €309.38 | |
| K1 | LUCB12BL | 24V DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €322.15 | |
| L1 | LUCA12BL | 24V DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €264.93 | |

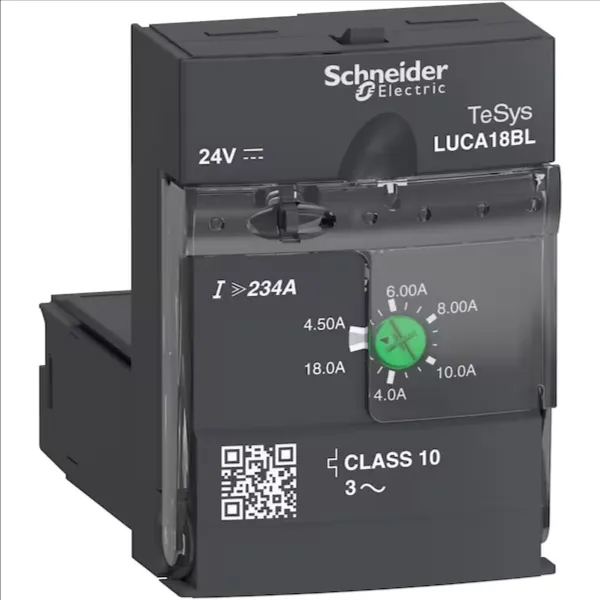

| M1 | LUCA18BL | 24V DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €253.33 | |
| N1 | LUCA32BL | 24V DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €253.01 | |
| O1 | LUCA12FU | 110-220V DC/110-240V AC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €244.92 | |
| P1 | LUCA05FU | 110-220V DC/110-240V AC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €252.11 | |
| Q1 | LUCA18FU | 110-220V DC/110-240V AC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €245.48 | |
| R1 | LUCA32FU | 110-220V DC/110-240V AC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €251.86 | |
| S1 | LUCA1XFU | 110-240V AC/DC | - | Class 10 | 2 9/25" | 1.77" | No | 2 3/5" | No | €240.30 |
