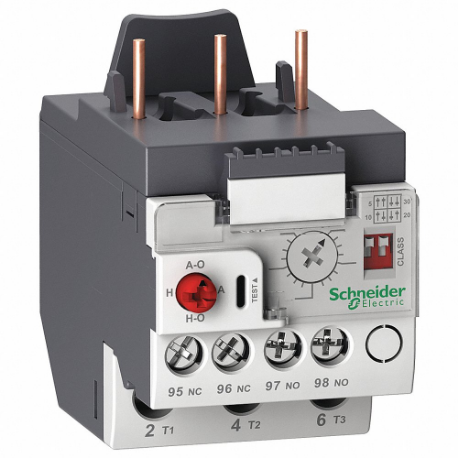

SCHNEIDER ELECTRIC LR9D01 Overload Relay, 10/20/30/5, Electronic
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Overload Relay |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 3.15" |
| Body Height | 2.85" |
| Body Width | 1.77" |
| Compatible Contactor Series | TESYS DECA Series |
| Compatible Contactors | Tesys Deca (1 To 32 Amp Models) |
| Compatible With Series | Tesys Deca |
| Depth | 79.9 mm |
| Features | Green Premium Product, Motor Protection |
| Impulse Withstand Voltage | 6 kV |
| Includes Mounting Hardware | Not Applicable |
| Includes Thermal Units | Not Applicable |
| Ip Rating | IP20 |
| Kit Required For Retrofit Mtg. | LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 |
| Maximum Overload Relay Current Setting | 0.5A |
| Maximum Voltage Rating | 660/690V |
| Min. Overload Relay Amps Setting | 0.1A |
| Mounting Style | Direct To Contactor |
| Number Of Poles | 3 |
| Overall Height | 2.85" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Phase Loss Sensitivity | Yes |
| Power Consumption In W | 300 mW |
| Product Type | Electronic Thermal Overload Relay |
| Relay Application | Motor Protection |
| Relay Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Reset Type | Auto, Manual |
| Sensing Method | Electronic |
| Separate Mounting | Additional Items Needed, Yes |
| Terminal Connection Type | Screw Clamp Terminals |
| Thermal Units Required | Not Applicable To Electronic Type Overload Relays |
| Trip Class | Class 5/10/20/30 |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 7.24 |
| Ship length (cm) | 8 |
| Ship width (cm) | 4.5 |
| Country of Origin | CN |
Product Variants
| Product | Model | Coil Voltage | Depth | Trip Class | Body Depth | Body Width | Kit Required For Retrofit Mtg. | Overall Height | Separate Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA7F407 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
LR3D3561 | - | 121 mm | - | - | - | - | - | - | €304.55 | |
 |
LR3D3563 | - | 121 mm | - | - | - | - | - | - | €305.71 | |
 |
LR2K0321 | - | 65 mm | - | - | - | - | - | - | €140.31 | |
 |
LR2D3553 | - | 121 mm | - | - | - | - | - | - | €259.88 | |
 |
LRD3365 | - | 115 mm | - | - | - | - | - | - | €311.06 | |
 |
LR3D14 | - | 70 mm | 10A | 2.76" | 1.77" | No | 2 3/5" | No | €139.15 |
