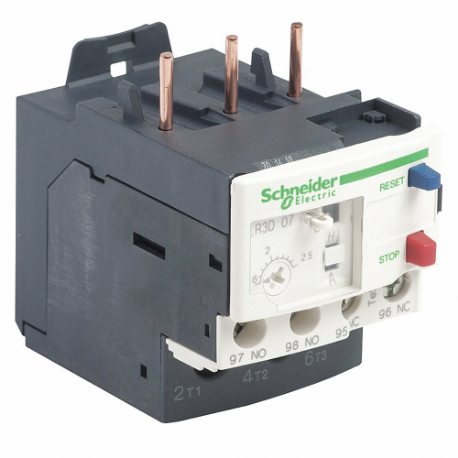

SCHNEIDER ELECTRIC LR3D07 Bimetallic Overload Relay 600V 25A Iec
Item: CU2CKZModel: LR3D07Cross Ref: 48P877
7 In Stock
Ships within 2 days via
5.00% off
€105.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ambient Air Temp. For Storage | -60°C to +70°C |
| Better World Verification | Green Premium |
| Control Type | Red Push Button Stop, Blue Push Button Reset |
| Conventional Free Air Thermal Amps | 5A signalling circuit |
| Depth | 70 mm |
| Device Short Name | Lr3d |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Height | 66 mm |
| Ip Degree Of Protection | IP20 Conforming to IEC 60529 |
| Permissible Amps | 3A, 120V AC-15 Signalling Circuit || 0.22 A 125 V DC-13 Signalling Circuit |
| Phase Failure Sensitivity | Tripping Current 130% of Ir on Two Phase, The Last One at 0 |
| Product Compatibility | LC1D38, LC1D32, LC1D12, LC1D18, LC1D09, LC1D25 |
| Product Datasheet | schneider-electric-lr3d07.pdf |
| Product Or Component Type | Non Differential Thermal Overload Relay |
| Relay Application | Motor Protection |
| Thermal Protection Adjustment Range | 1.6-2.5A |
| Ui Rated Insulation Voltage | 600/690V |
| Uimp Rated Impulse Withstand Voltage | 6 kV |
| Width | 45 mm |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Amps | Height | Depth | Relay Application | Sensing Method | Max. Voltage | Overall Height | Max. Overload Relay Amps Setting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA7F407 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
LR3D3561 | - | - | 121 mm | Motor Protection | - | - | - | - | €279.69 | |
 |
LR3D3563 | - | - | 121 mm | Motor Protection | - | - | - | - | €286.43 | |
 |
LR2K0321 | - | - | 65 mm | Motor Protection | - | - | - | - | €105.05 | |
 |
LR2D3553 | - | - | 121 mm | Motor Protection | - | - | - | - | €254.09 | |
 |
LRD3365 | - | - | 115 mm | Motor Protection | - | - | - | - | €258.74 | |
 |
LR3D14 | 7-10A | - | 70 mm | Motor Protection | Thermal | 690V AC | 2 3/5" | 10A | €114.01 |
