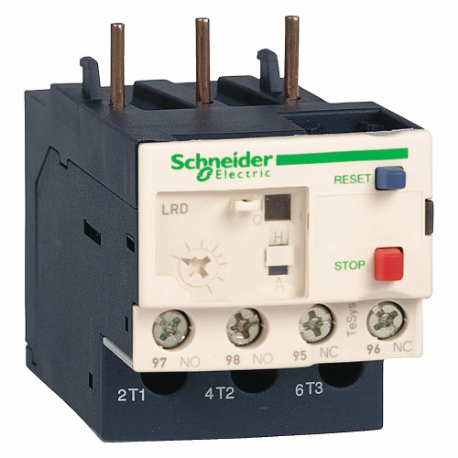

SCHNEIDER ELECTRIC LR3D22 Bimetallic Overload Relay 600V 24A Iec, 16 to 24A, 10A, Thermal
Item: CU2CKXModel: LR3D22Cross Ref: 48P882
7 In Stock
Ships within 2 days via
10.00% off
€94.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps Range | 16-24A |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 2.76" |
| Body Height | 2.6" |
| Body Width | 1.77" |
| Compatible Contactor Series | TESYS DECA Series |
| Compatible Contactors | Tesys Deca (25 To 38 Amp Models) |
| Compatible With Series | Tesys Deca |
| Depth | 70 mm |
| Impulse Withstand Voltage | 6 kV |
| Includes Mounting Hardware | Not Applicable |
| Ip Rating | IP20 |
| Kit Required For Retrofit Mtg. | No |
| Maximum Overload Relay Current Setting | 24A |
| Maximum Voltage Rating | 690V AC |
| Min. Overload Relay Amps Setting | 16A |
| Mounting Style | Direct To Contactor |
| Number Of Poles | 3 |
| Overall Height | 2 3/5" |
| Overload Protection Type | Thermal |
| Phase Loss Sensitivity | No |
| Product Datasheet | schneider-electric-lr3d22.pdf |
| Product Type | Non Differential Thermal Overload Relay |
| Relay Application | Motor Protection |
| Relay Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Reset Type | Auto, Manual |
| Sensing Method | Thermal |
| Separate Mounting | No |
| Terminal Connection Type | Screw Clamp Terminals |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Trip Class | 10A |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 7.01 |
| Ship width (cm) | 4.5 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Depth | Body Depth | Trip Class | Body Height | Body Width | Kit Required For Retrofit Mtg. | Overall Height | Sensing Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA7F407 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
LR3D3561 | 121 mm | - | - | - | - | - | - | - | €304.55 | |
 |
LR3D3563 | 121 mm | - | - | - | - | - | - | - | €305.71 | |
 |
LR2K0321 | 65 mm | - | - | - | - | - | - | - | €140.31 | |
 |
LR2D3553 | 121 mm | - | - | - | - | - | - | - | €259.88 | |
 |
LRD3365 | 115 mm | - | - | - | - | - | - | - | €237.17 | |
 |
LR3D14 | 70 mm | 2.76" | 10A | 2.6" | 1.77" | No | 2 3/5" | Thermal | €104.51 |
