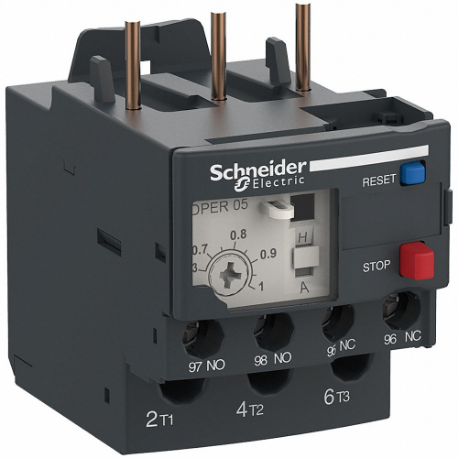

SCHNEIDER ELECTRIC DPER05 Easy Tesys, 0.63 To 1.00 A, 10, 3 Poles, Thermal
Item: CU2CQYModel: DPER05Cross Ref: 787P38
7 In Stock
Ships within 2 days via
10.00% off
€38.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps Range | 0.63-1A |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 2 19/25" |
| Body Height | 2 3/5" |
| Body Width | 1.77" |
| Compatible Contactor Series | EASY TESYS Series |
| Compatible Contactors | Tesys Easy (9 To 32 Amp Models) |
| Compatible With Series | Easy Tesys |
| Depth | 70 mm |
| Impulse Withstand Voltage | 6 kV |
| Ip Rating | IP20 |
| Kit Required For Retrofit Mtg. | LAD9R1 |
| Maximum Overload Relay Current Setting | 1A |
| Maximum Voltage Rating | 690V AC |
| Min. Overload Relay Amps Setting | 0.63A |
| Mounting Style | Separately Mounted |
| Number Of Poles | 3 |
| Overall Height | 2 3/5" |
| Overload Protection Type | Thermal |
| Phase | 3 |
| Phase Loss Sensitivity | Yes |
| Product Type | Thermal Overload Relay |
| Relay Application | Overload Protection |
| Relay Mounting Style | Separately Mounted |
| Relay Style | IEC |
| Reset Type | Auto, Manual |
| Sensing Method | Thermal |
| Separate Mounting | Additional Items Needed, Yes |
| Terminal Connection Type | Screw Clamp Terminals |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Trip Class | Class 10 |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 3.76 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 7.01 |
| Ship width (cm) | 4.5 |
| Country of Origin | FR |
Product Variants
| Product | Model | Coil Voltage | Depth | Trip Class | Body Depth | Body Width | Kit Required For Retrofit Mtg. | Overall Height | Separate Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA7F407 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
LR3D3561 | - | 121 mm | - | - | - | - | - | - | €304.55 | |
 |
LR3D3563 | - | 121 mm | - | - | - | - | - | - | €305.71 | |
 |
LR2K0321 | - | 65 mm | - | - | - | - | - | - | €140.31 | |
 |
LR2D3553 | - | 121 mm | - | - | - | - | - | - | €259.88 | |
 |
LRD3365 | - | 115 mm | - | - | - | - | - | - | €311.06 | |
 |
LR3D14 | - | 70 mm | 10A | 2.76" | 1.77" | No | 2 3/5" | No | €139.15 |
