POWER FIRST Fully Insulated Quick Disconnects
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z| Style | Model | Amps | Max. Voltage | Color Code | Wire Size | Insulation Color | Barrel Inside Dia. | Insulation Material | Tab Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

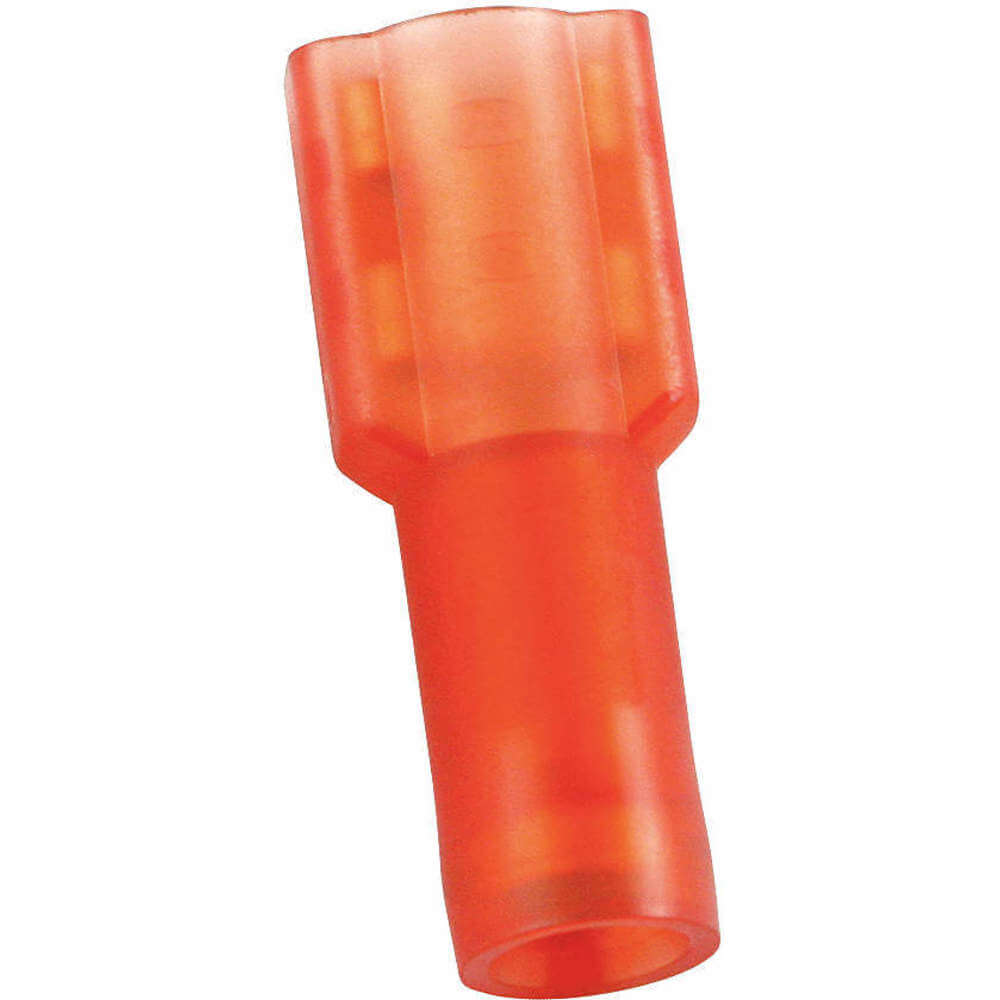

| A | 5UGR1 | 7A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.187" | 100 | €54.66 | |
| B | 5UGK2 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Polyolefin | 1/4" | 25 | €57.01 | |
| C | 24C878 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.15" | Vinyl | 1/4" | 100 | €64.06 | |
| D | 4FRK7 | 10A | 300V | Red | 22 AWG to 16 AWG | Red | 0.063" | Nylon | 1/4" | 100 | €37.78 | |
| E | 5WHH5 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Polyolefin | 1/4" | 25 | €56.62 | |
| C | 24C880 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.15" | Vinyl | 0.187" | 100 | €59.56 | |
| F | 24C760 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 1/4" | 100 | €79.60 | |
| G | 24C729 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.187" | 100 | €149.56 | |
| G | 4FRK4 | 10A | 300V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 1/4" | 100 | €41.28 | |
| C | 24C879 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.15" | Vinyl | 0.187" | 100 | €59.40 | |
| H | 24C706 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 1/4" | 100 | €135.43 | |
| G | 24C783 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.187" | 100 | €65.18 | |
| F | 24C849 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.11" | 100 | €48.42 | |
| F | 24C848 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.11" | 100 | €47.09 | |
| I | 24C847 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.187" | 100 | €48.52 | |
| I | 24C846 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.187" | 100 | €54.22 | |
| J | 24C851 | 15A | 600V | Blue | - | Blue | 0.091" | Nylon | 0.187" | 50 | €30.73 | |
| K | 5WHH4 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Polyolefin | 1/4" | 25 | €54.25 | |
| L | 4FRK5 | 15A | 300V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 1/4" | 100 | €42.50 | |
| M | 24C885 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Vinyl | 0.187" | 50 | €27.53 | |
| M | 24C884 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Vinyl | 0.187" | 50 | €28.27 | |
| J | 24C850 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 0.187" | 50 | €32.17 | |

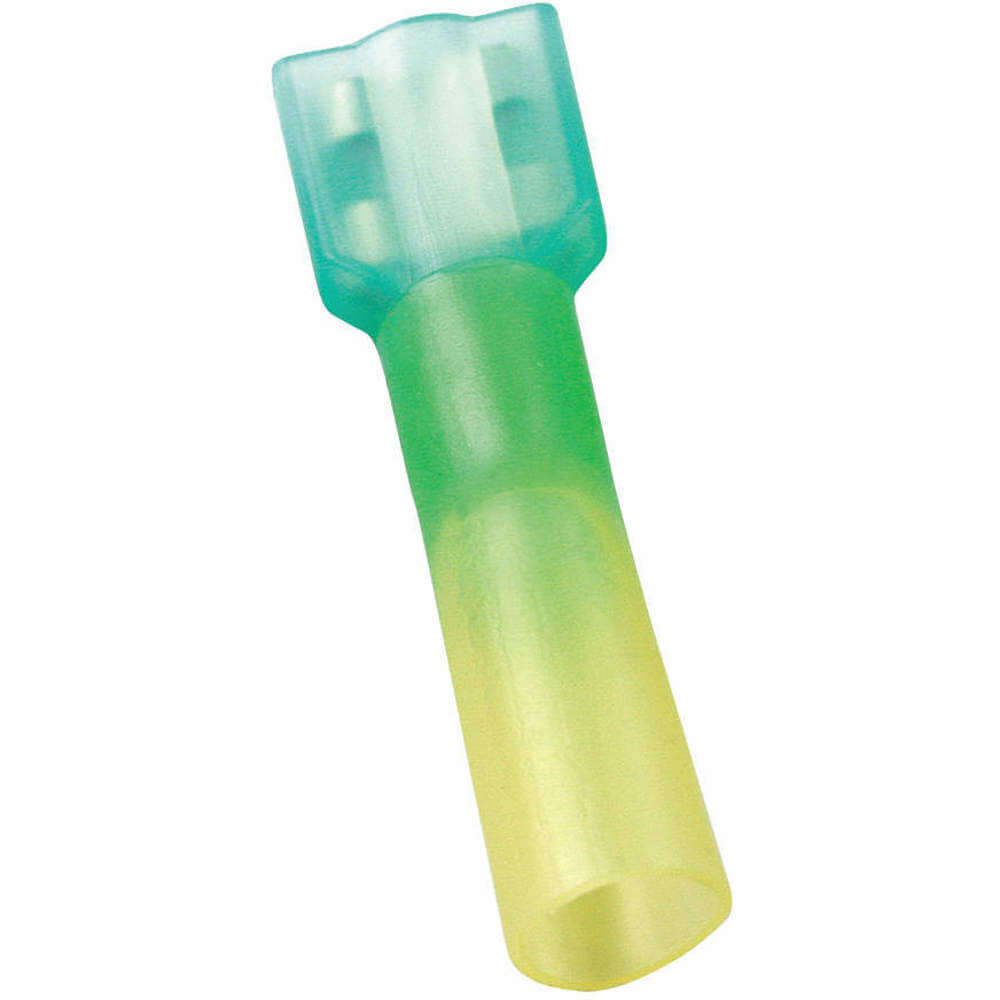

| N | 5UGK1 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Polyolefin | 1/4" | 25 | €60.38 | |
| O | 24C761 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 0.187" | 50 | €30.06 | |
| P | 4FRK8 | 15A | 300V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 1/4" | 100 | €44.84 | |
| Q | 24C709 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 0.187" | 50 | €34.25 | |
| R | 24C788 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 1/4" | 50 | €40.62 | |
| M | 24C883 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Vinyl | 1/4" | 50 | €30.22 | |
| S | 24C762 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 1/4" | 50 | €39.87 | |
| T | 5UGK3 | 24A | 600V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Polyolefin | 1/4" | 25 | €70.70 | |

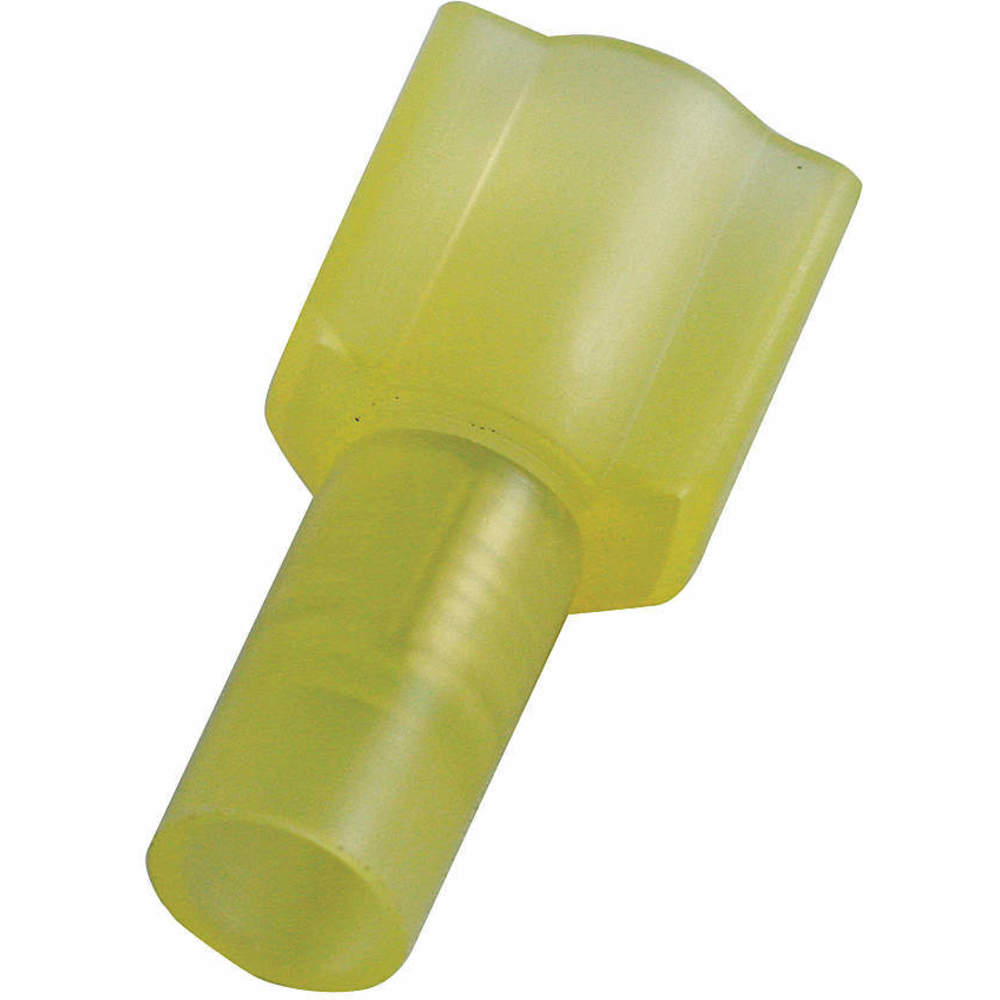

| U | 4FRK9 | 24A | 300V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Nylon | 1/4" | 50 | €23.20 | |
| V | 24C886 | 24A | 600V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Vinyl | 1/4" | 50 | €49.23 | |
| W | 5UGK0 | 24A | 600V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Polyolefin | 1/4" | 25 | €70.70 | |
| X | 24C763 | 24A | 600V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Nylon | 1/4" | 50 | €53.69 | |
| Y | 4FRK6 | 24A | 300V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Nylon | 1/4" | 50 | €22.88 | |
| Z | 24C708 | 24A | 600V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Nylon | 1/4" | 50 | €54.22 |
