HUB CITY 810 Series Bevel Gear Drives
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N| Style | Model | Output Torque | Output Speed | Max. Input Hp | Output Shaft Direction | Style | Gear Type | Ratio | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-59443 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | C, F | Spiral Bevel | 1:1 | - | €5,086.90 | RFQ
|
| B | 0220-59458 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | C, F | Spiral Bevel | 3:1 | - | €5,371.47 | |
| C | 0220-59442 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Double | A, B | Spiral Bevel | 1:1 | 4750 lbs.-in. | €4,037.22 | |
| D | 0220-59436 | 2500 lbs.-in. to 5000 lbs.-in. | - | 33 hp | Double | A, B | Straight Bevel | 1.71:1 | 3100 lbs.-in. | €4,821.90 | |
| E | 0220-59444 | 2500 lbs.-in. to 5000 lbs.-in. | - | - | Left, Right | D, E | Spiral Bevel | 1:1 | - | €5,086.90 | |
| F | 0220-59421 | 2500 lbs.-in. to 5000 lbs.-in. | 917.7 RPM | 48 hp | Double | A, B | Straight Bevel | 11.33:1 | 3290 lbs.-in. | €4,727.69 | |
| G | 0220-59431 | 2500 lbs.-in. to 5000 lbs.-in. | 1035 RPM | 42 hp | Double | A, B | Straight Bevel | 11.5:1 | 2560 lbs.-in. | €4,727.69 | |
| H | 0220-59445 | 2500 lbs.-in. to 5000 lbs.-in. | 1750 RPM | - | Double | G | Spiral Bevel | 1:1 | 4750 lbs.-in. | €7,297.25 | |
| I | 0220-59418 | 2500 lbs.-in. to 5000 lbs.-in. | 639.1 RPM | 45 hp | Left Or Right | D, E | Straight Bevel | 1.33:1 | 4350 lbs.-in. | €4,727.69 | |

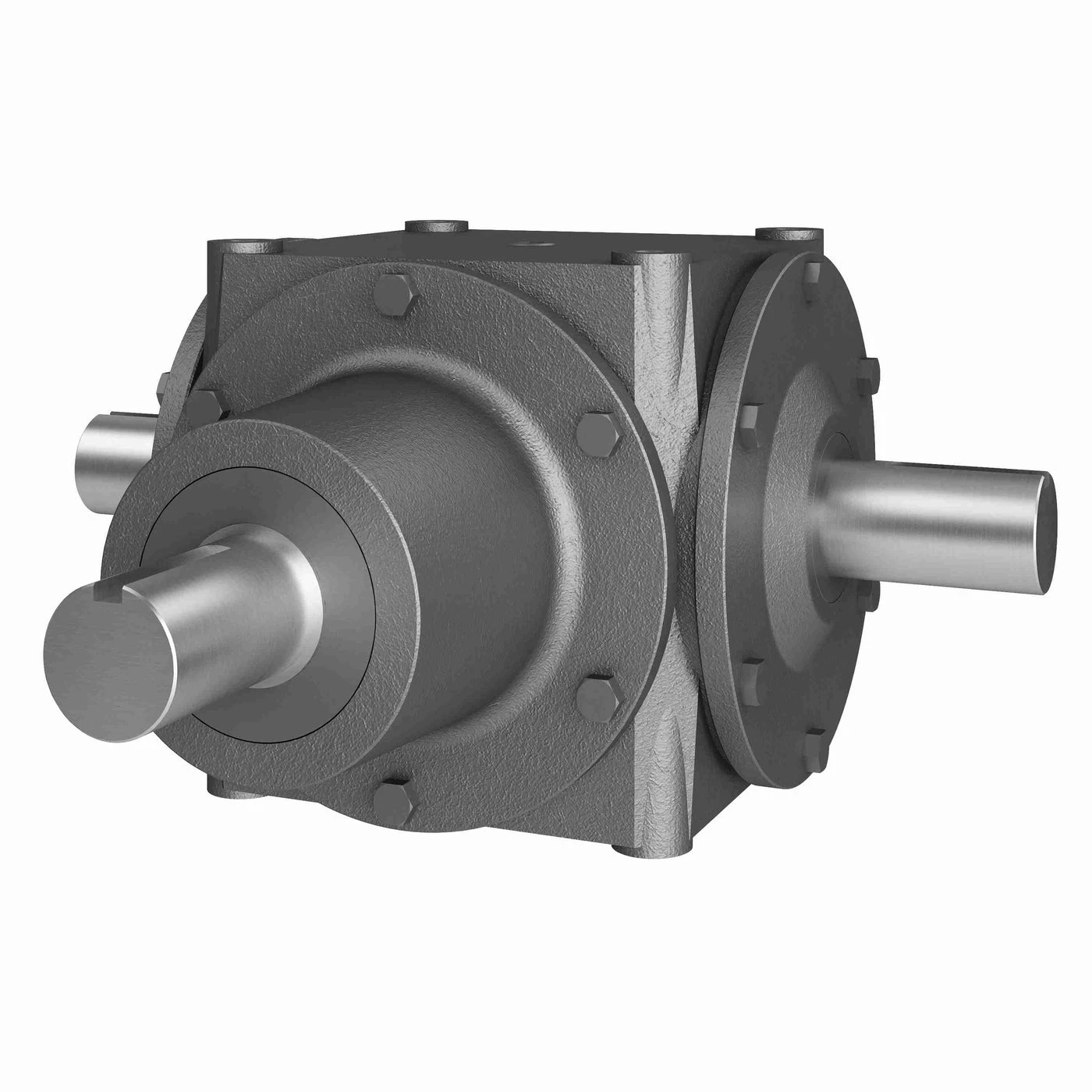

| J | 0220-59417 | 2500 lbs.-in. to 5000 lbs.-in. | 639.1 RPM | 45 hp | Left Or Right | C, F | Straight Bevel | 1.33:1 | 4350 lbs.-in. | €4,727.69 | |
| K | 0220-59402 | 5000 lbs.-in. to 10000 lbs.-in. | 690 RPM | 56 1/5 hp | Left Or Right | C, F | Straight Bevel | 1:1 | 5130 lbs.-in. | €3,991.51 | |
| L | 0220-59403 | 5000 lbs.-in. to 10000 lbs.-in. | 690 RPM | 56 1/5 hp | Left Or Right | D, E | Straight Bevel | 1:1 | 5130 lbs.-in. | €3,326.25 | |

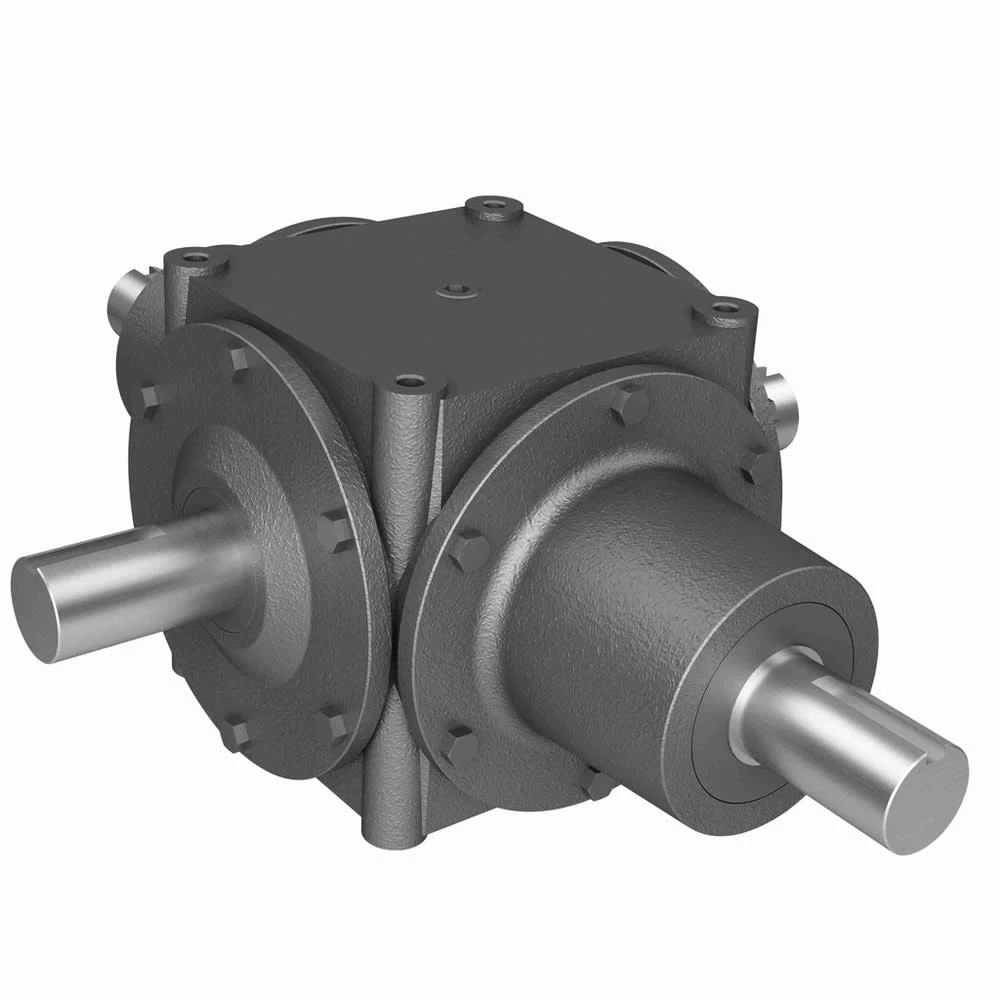

| M | 0220-59405 | 5000 lbs.-in. to 10000 lbs.-in. | 690 RPM | 56 1/5 hp | Double | Gg | Straight Bevel | 1:1 | 5130 lbs.-in. | €4,950.29 | |
| N | 0220-59401 | 5000 lbs.-in. to 10000 lbs.-in. | 690 RPM | 56 1/5 hp | Double | A, B | Straight Bevel | 1:1 | 5130 lbs.-in. | €3,167.85 |
