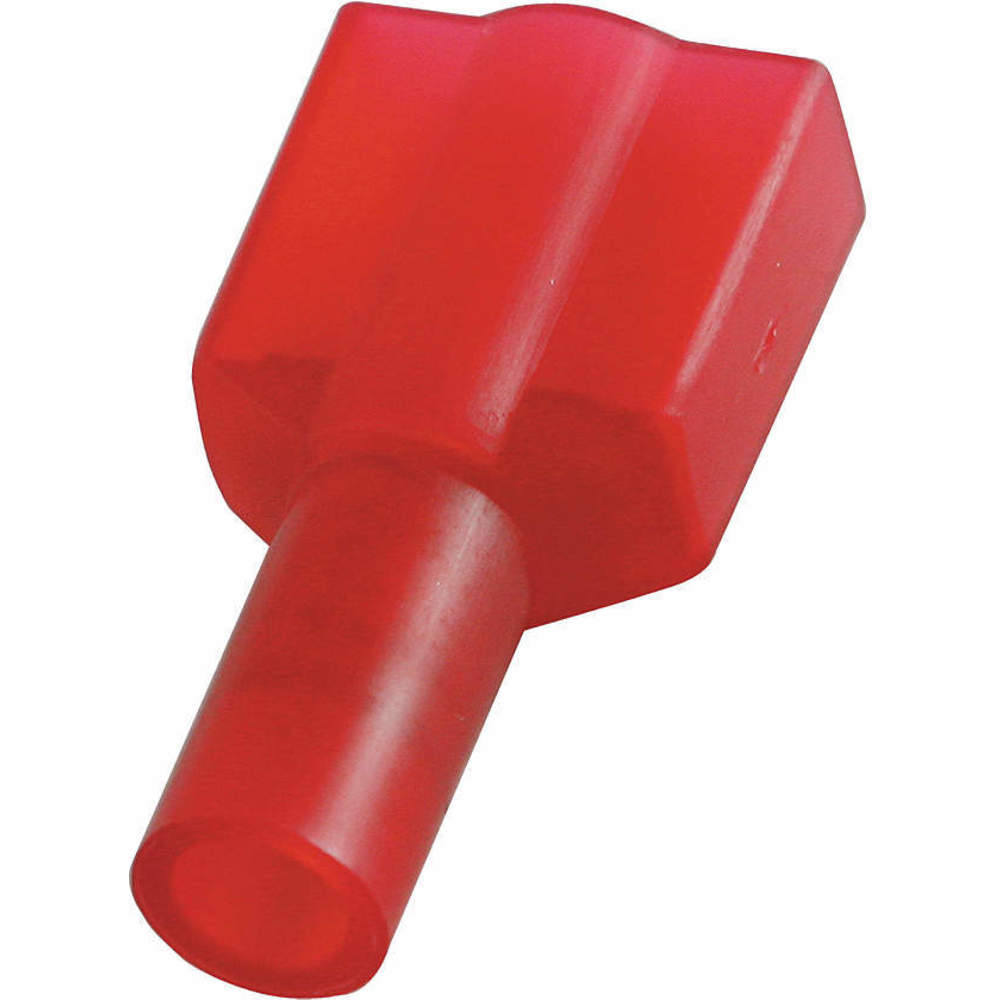

POWER FIRST 4FRK7 Male Disconnect Red 22 To 16 Awg
Item: AD7PAXModel: 4FRK7
7 In Stock
Ships within 2 days via
10.00% off
€34.00 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.063" |
| Barrel Outside Dia. | 0.157" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Red |
| Connection Material | Brass |
| Connection Orientation | Straight |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 10A |
| Disconnect Style | Tab |
| Flammability Rating | V-2 |
| Insulation | Full |
| Insulation Color | Red |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Full |
| Max. Temp. | 221°F |
| Max. Voltage | 300V |
| Max. Wire Size | 16 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.965" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Standards | UL/CUL Listed |
| Strip Length | 1/4" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Tab |
| Termination Style | Crimp |
| Ul 94 Flammability Rating | V-2 |
| Wire Size | 22 AWG to 16 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 12.95 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Insulation Color | Insulation Material | Max. Voltage | Connection Material | Wire Size | Barrel Inside Dia. | Insulation Type | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C706 | Red | Nylon | 600V | Tin Plated Brass | 22 AWG to 16 AWG | 0.067" | Nylon | 0.945" | 100 | €135.43 | |
 |
24C708 | Yellow | Nylon | 600V | Tin Plated Brass | 12 AWG to 10 AWG | 0.134" | Nylon | 0.953" | 50 | €54.22 | |
 |
24C709 | Blue | Nylon | 600V | Tin Plated Brass | 16 AWG to 14 AWG | 0.091" | Nylon | 0.795" | 50 | €34.25 | |
 |
24C729 | Red | Nylon | 600V | Tin Plated Brass | 22 AWG to 16 AWG | 0.067" | Nylon | 0.795" | 100 | €149.56 | |
 |
24C760 | Red | Nylon | 600V | Tin Plated Brass | 22 AWG to 16 AWG | 0.067" | Nylon | 0.846" | 100 | €79.60 | |
 |
24C761 | Blue | Nylon | 600V | Tin Plated Brass | 16 AWG to 14 AWG | 0.091" | Nylon | 0.795" | 50 | €30.06 | |
 |
24C762 | Blue | Nylon | 600V | Tin Plated Brass | 16 AWG to 14 AWG | 0.091" | Nylon | 0.846" | 50 | €39.87 |
