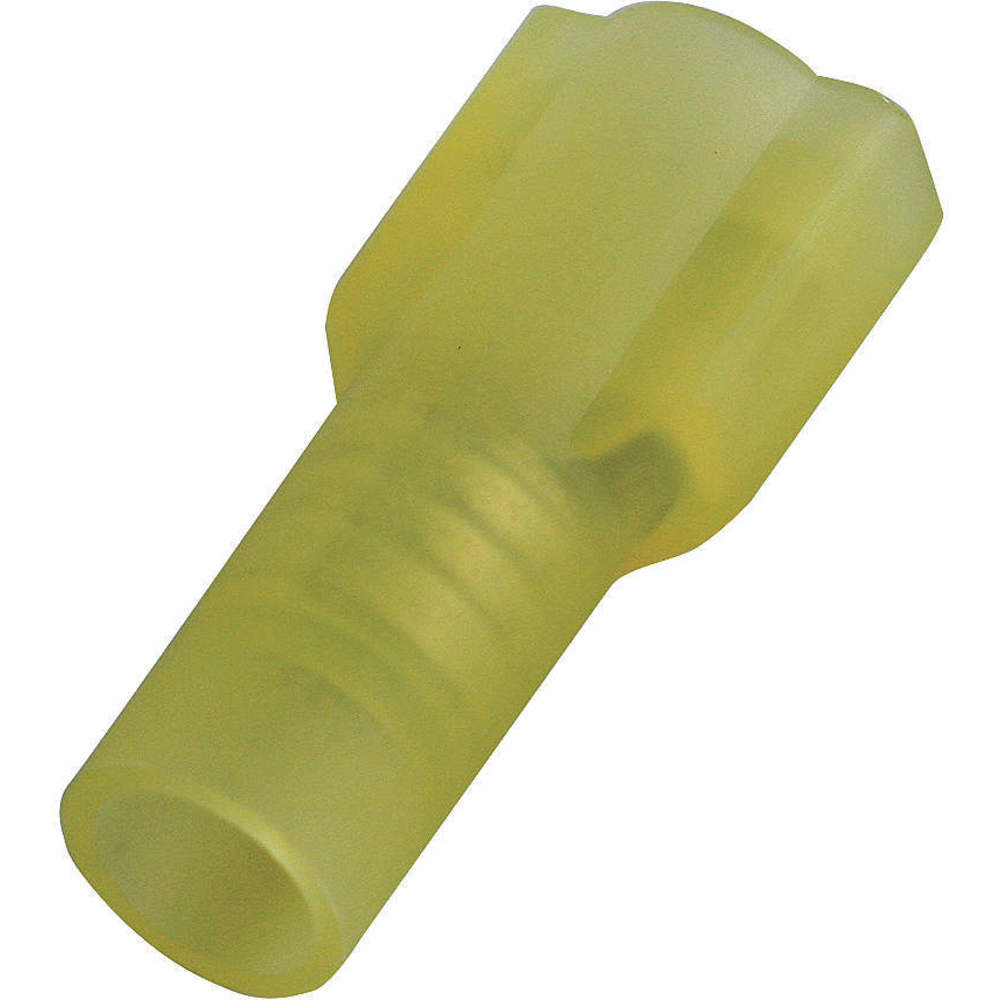

POWER FIRST 4FRK6 Female Disconnect Yellow 12 To 10awg
Item: AD7PAWModel: 4FRK6
7 In Stock
Ships within 2 days via
5.00% off
€21.73 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Amps | 24A |
| Barrel Inside Dia. | 0.134" , 0.138" |
| Barrel Outside Dia. | 0.217" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Yellow |
| Connection Material | Brass |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Disconnect Style | Tab |
| Flammability Rating | V-2 |
| Insulation | Full |
| Insulation Color | Yellow |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 300V |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 0.906" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Strip Length | 3/8" |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Ul 94 Flammability Rating | V-2 |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 6.35 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Amps | Max. Voltage | Color Code | Wire Size | Insulation Color | Barrel Inside Dia. | Insulation Material | Tab Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C706 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 1/4" | 100 | €135.43 | |
 |
24C708 | 24A | 600V | Yellow | 12 AWG to 10 AWG | Yellow | 0.134" | Nylon | 1/4" | 50 | €54.22 | |
 |
24C709 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 0.187" | 50 | €34.25 | |
 |
24C729 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 0.187" | 100 | €149.56 | |
 |
24C760 | 10A | 600V | Red | 22 AWG to 16 AWG | Red | 0.067" | Nylon | 1/4" | 100 | €79.60 | |
 |
24C761 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 0.187" | 50 | €30.06 | |
 |
24C762 | 15A | 600V | Blue | 16 AWG to 14 AWG | Blue | 0.091" | Nylon | 1/4" | 50 | €39.87 |
