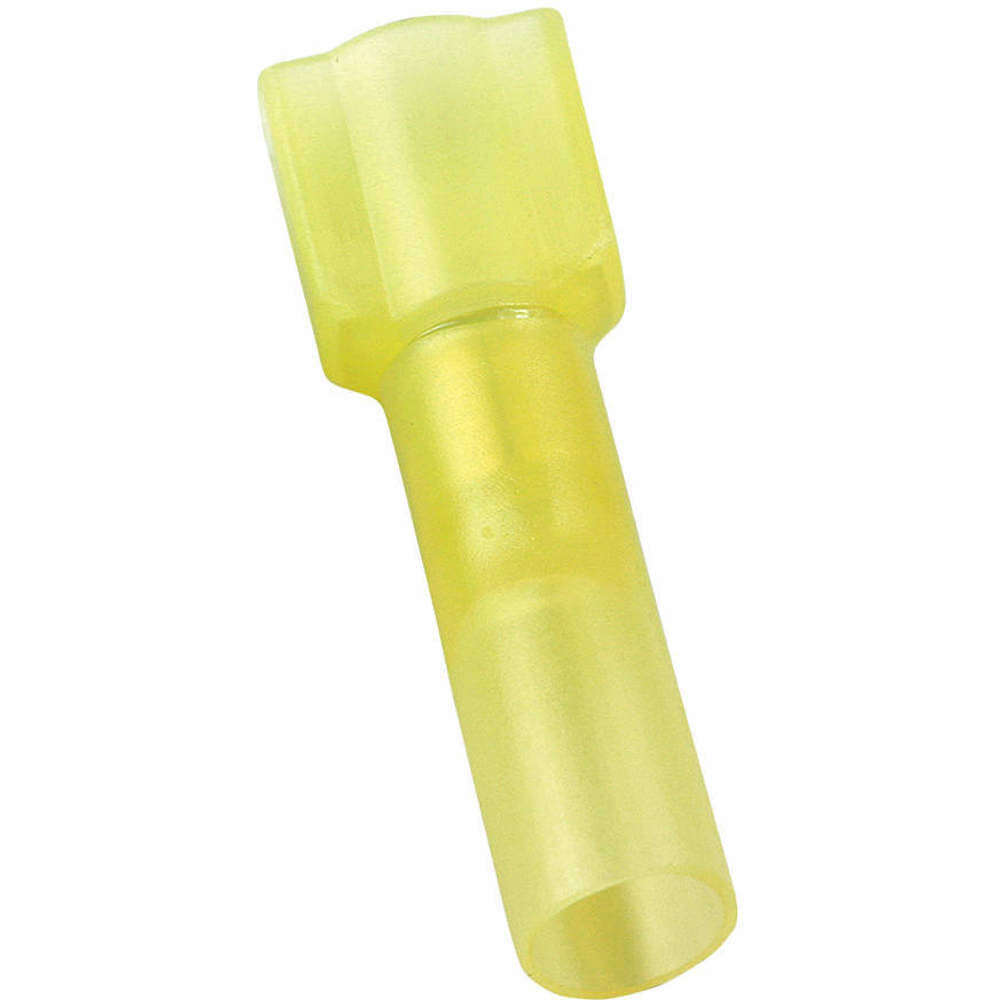

POWER FIRST 5UGK3 Male Disconnect Yellow 12 To 10 Awg
Item: AE6PGTModel: 5UGK3
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.134" |
| Barrel Outside Dia. | 0.295" |
| Barrel Size | Standard |
| Barrel Style | Crimp |
| Color Code | Yellow |
| Connection Material | Brass |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 24A |
| Disconnect Style | Tab |
| Flammability Rating | HB |
| Insulation | Full |
| Insulation Color | Yellow |
| Insulation Coverage | Full Coverage |
| Insulation Material | Polyolefin |
| Insulation Type | Heat Shrink |
| Max. Temp. | 221°F |
| Max. Voltage | 300V |
| Max. Wire Size | 10 AWG |
| Maximum Voltage | 600V |
| Minimum Wire Size | 12 AWG |
| Overall Length | 1.555" |
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Standards | UL/CUL Listed |
| Strip Length | 3/8" |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Tab |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 12.19 |
| HS code | 8536904000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Insulation Color | Insulation Material | Max. Voltage | Connection Material | Wire Size | Barrel Inside Dia. | Insulation Type | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C706 | Red | Nylon | 600V | Tin Plated Brass | 22 AWG to 16 AWG | 0.067" | Nylon | 0.945" | 100 | €135.43 | |
 |
24C708 | Yellow | Nylon | 600V | Tin Plated Brass | 12 AWG to 10 AWG | 0.134" | Nylon | 0.953" | 50 | €54.22 | |
 |
24C709 | Blue | Nylon | 600V | Tin Plated Brass | 16 AWG to 14 AWG | 0.091" | Nylon | 0.795" | 50 | €34.25 | |
 |
24C729 | Red | Nylon | 600V | Tin Plated Brass | 22 AWG to 16 AWG | 0.067" | Nylon | 0.795" | 100 | €149.56 | |
 |
24C760 | Red | Nylon | 600V | Tin Plated Brass | 22 AWG to 16 AWG | 0.067" | Nylon | 0.846" | 100 | €79.60 | |
 |
24C761 | Blue | Nylon | 600V | Tin Plated Brass | 16 AWG to 14 AWG | 0.091" | Nylon | 0.795" | 50 | €30.06 | |
 |
24C762 | Blue | Nylon | 600V | Tin Plated Brass | 16 AWG to 14 AWG | 0.091" | Nylon | 0.846" | 50 | €39.87 |
