Large Flanged 3/16" Open End Blind Rivets
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2
H2
I2| Style | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AD62BSLF200 | 0.3" | 3/8" | Aluminum | Steel | Grade 5052 | 315 lbs. | 720 lbs. | #11 | 250 | €42.10 | |

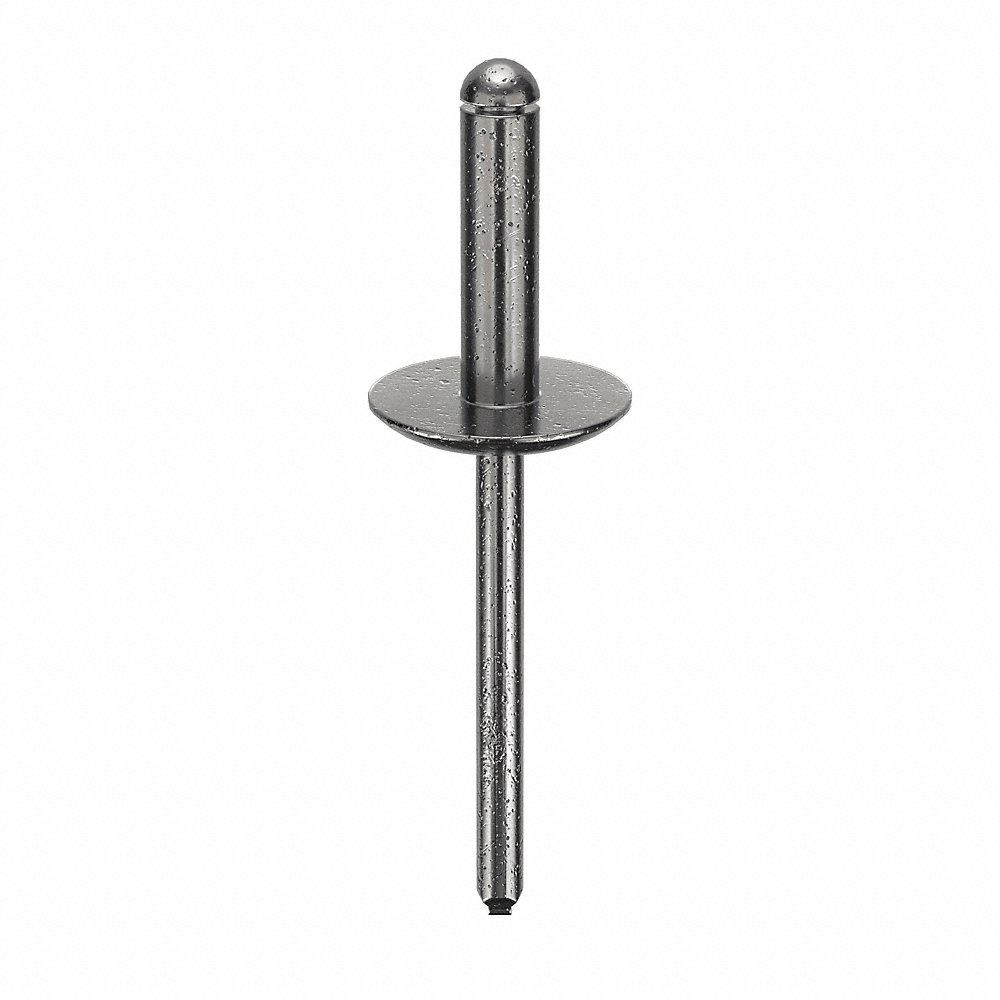

| B | U34131.018.0068 | 0.7" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €41.42 | |
| C | U33191.018.0068 | 0.7" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €57.25 | |

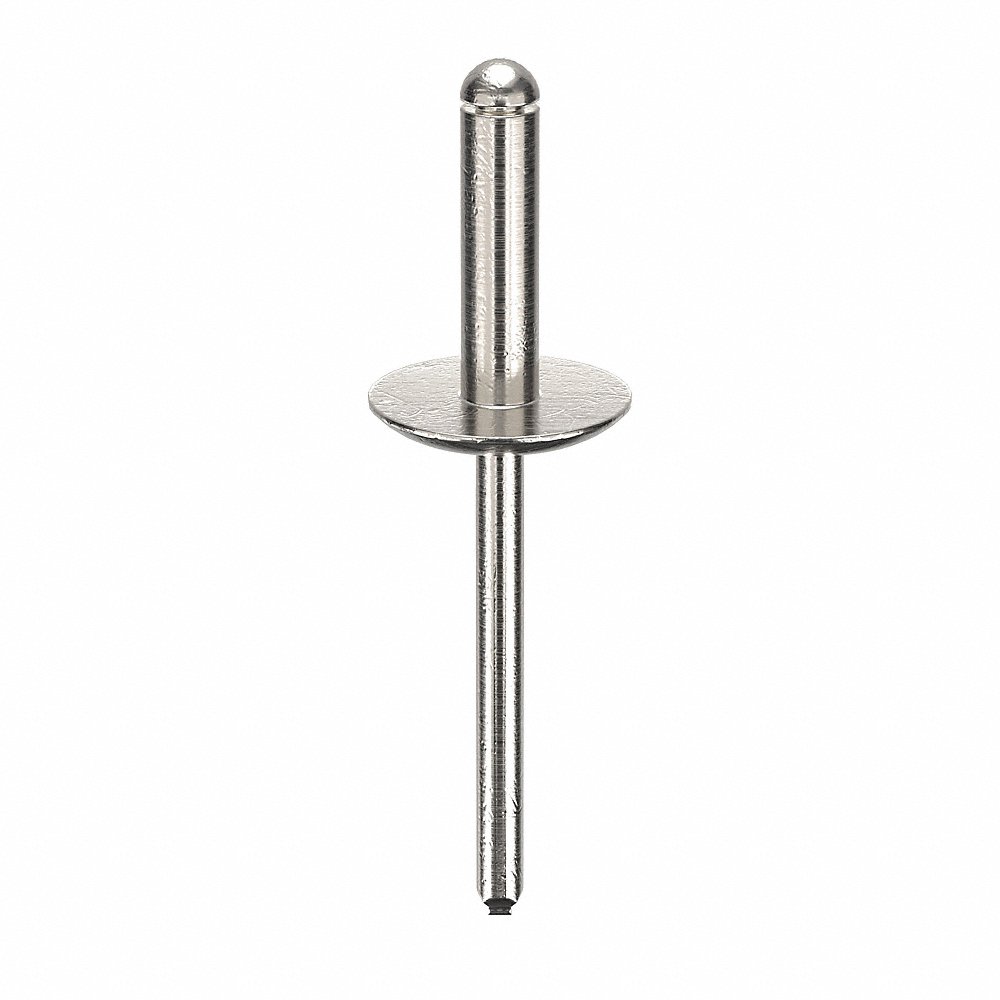

| D | U34122.018.0068 | 0.7" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €39.61 | |
| E | U34181.018.0068 | 0.7" | 0.6" to 0.65" | Stainless Steel | Stainless Steel | - | 950 lbs. | 1200 lbs. | #11 | 250 | €169.22 | |
| F | U33191.018.0064 | 0.45" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €37.42 | |
| G | U34181.018.0064 | 0.45" | 0.6" to 0.65" | Stainless Steel | Stainless Steel | - | 950 lbs. | 1200 lbs. | #11 | 250 | €179.30 | |
| H | U34131.018.0064 | 0.45" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €35.28 | |
| I | U34122.018.0064 | 0.45" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €33.89 | |
| J | AD66BSLF200 | 0.55" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €47.71 | |

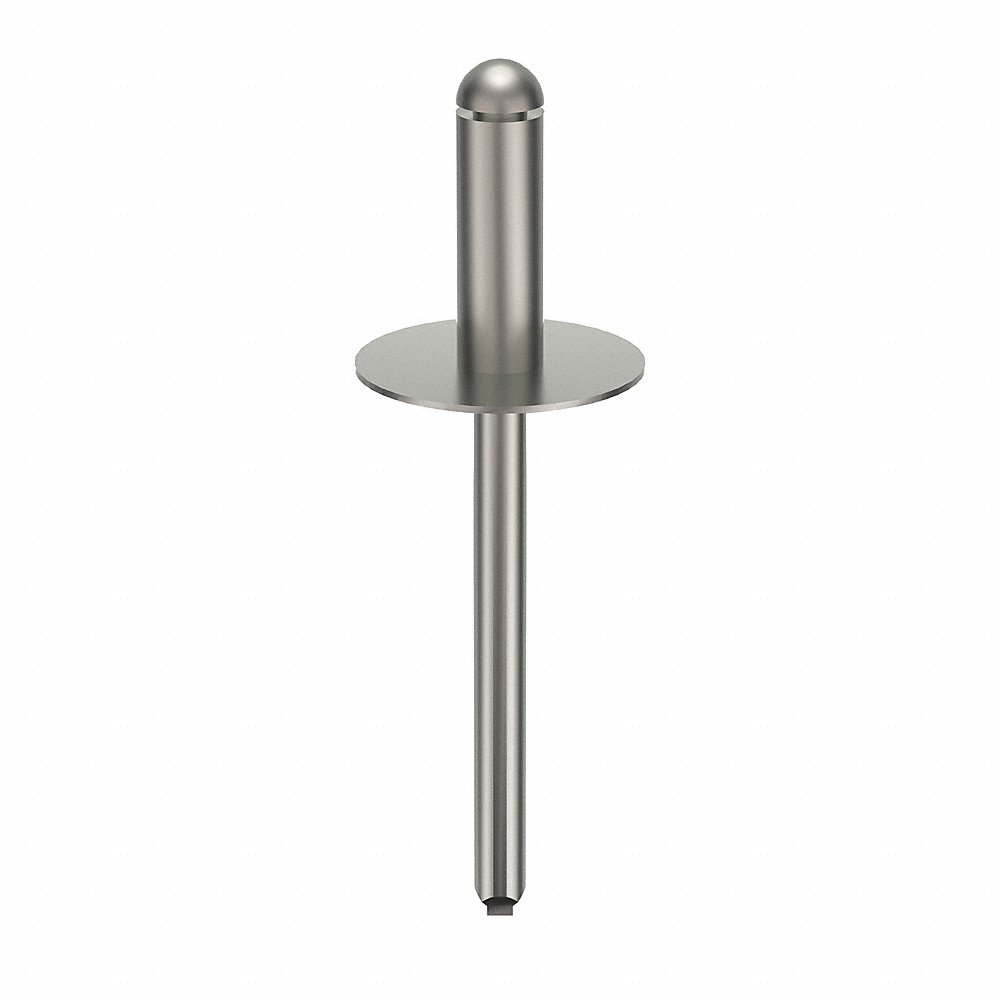

| K | SSD66SSBSLF203 | 0.55" | 5/8" | Stainless Steel | Stainless Steel | - | 1000 lbs. | 1375 lbs. | #11 | 100 | €97.05 | |
| L | AD66ABSLF200 | 0.55" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €37.73 | |
| M | SD66BSLF200 | 0.55" | 5/8" | Steel | Steel | Grade C1006/C1010 | 590 lbs. | 815 lbs. | #11 | 250 | €47.46 | |
| N | U34131.018.0612 | 0.95" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €70.70 | |
| O | U34181.018.0612 | 0.95" | 0.6" to 0.65" | Stainless Steel | Stainless Steel | - | 950 lbs. | 1200 lbs. | #11 | 250 | €241.67 | |
| P | U33191.018.0612 | 0.95" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €86.57 | |
| Q | U34122.018.0612 | 0.95" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €67.87 | |
| R | U34122.018.0063 | 0.387" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €38.08 | |
| S | 1903PK | 0.406" | 5/8" | Aluminum | Aluminum | - | - | - | - | 50 | €20.92 | |
| T | AD62-64BSLF200 | 0.425" | 5/8" | Aluminum | Steel | Grade 5052 | 350 lbs. | 505 lbs. | #11 | 250 | €98.31 | |
| U | AD64ABSLF200 | 0.425" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €42.21 | |
| V | SD64BSLF200 | 0.425" | 5/8" | Steel | Steel | Grade C1006/C1010 | 590 lbs. | 815 lbs. | #11 | 250 | €41.25 | |
| W | SSD64SSBSLF203 | 0.425" | 5/8" | Stainless Steel | Stainless Steel | - | 1000 lbs. | 1375 lbs. | #11 | 100 | €89.65 | |
| X | U34181.018.0066 | 0.575" | 0.6" to 0.65" | Stainless Steel | Stainless Steel | - | 950 lbs. | 1200 lbs. | #11 | 250 | €214.82 | |
| Y | U33191.018.0066 | 0.575" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €33.47 | |
| Z | U34122.018.0066 | 0.575" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €41.06 | |
| A1 | U34131.018.0066 | 0.575" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €38.67 | |
| B1 | U34133.018.6466 | 0.626" | 0.6" to 0.65" | Steel | Steel | - | 583 lbs. | 695 lbs. | #11 | 250 | €54.91 | |
| C1 | U34126.018.6467 | 0.626" | 0.6" to 0.65" | Aluminum | Steel | - | 292 lbs. | 471 lbs. | #11 | 250 | €29.57 | |
| D1 | 1905PK | 0.656" | 5/8" | Aluminum | Aluminum | - | - | - | - | 50 | €18.92 | |
| E1 | AD68BSLF200 | 0.675" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €46.04 | |
| F1 | SD68BSLF200 | 0.675" | 5/8" | Steel | Steel | Grade C1006/C1010 | 590 lbs. | 815 lbs. | #11 | 250 | €48.45 | |
| G1 | AD68ABSLF200 | 0.675" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €64.64 | |

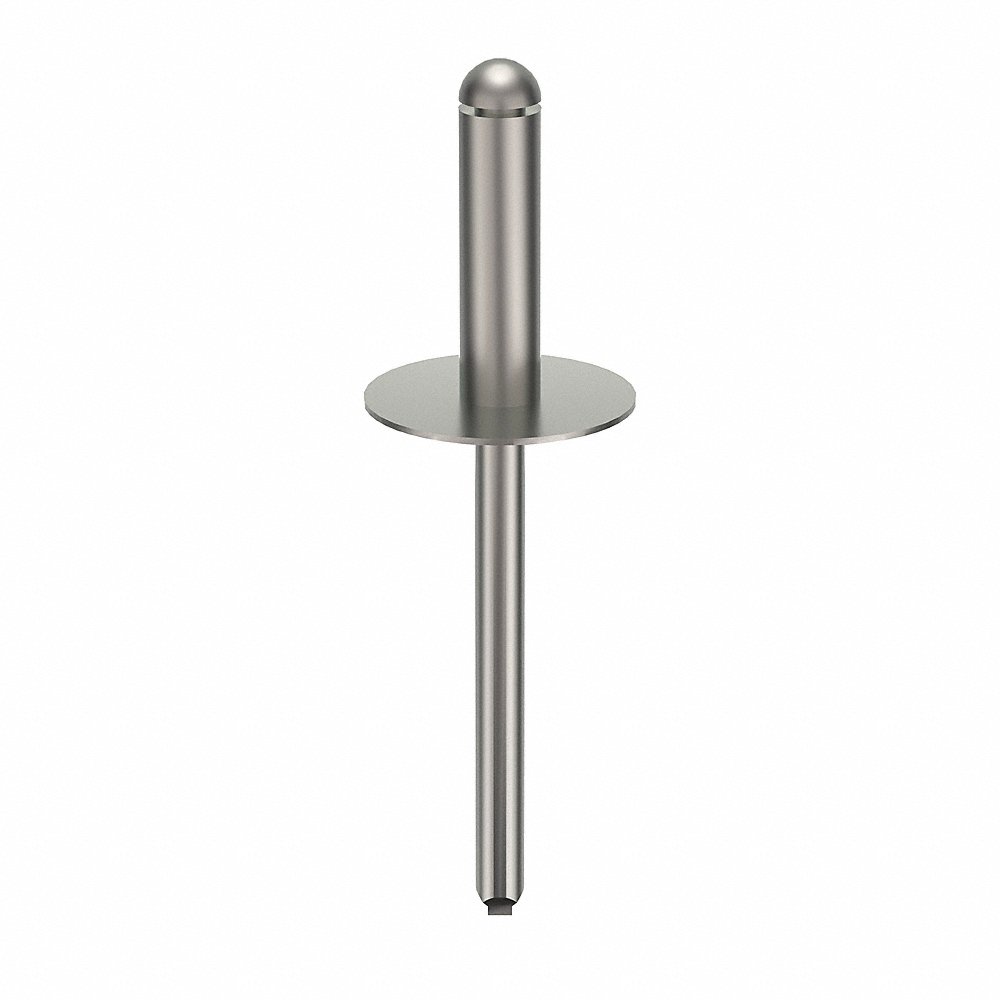

| H1 | SSD68SSBSLF203 | 0.675" | 5/8" | Stainless Steel | Stainless Steel | - | 1000 lbs. | 1375 lbs. | #11 | 100 | €76.46 | |
| I1 | U34133.018.6567 | 0.689" | 0.6" to 0.65" | Steel | Steel | - | 583 lbs. | 695 lbs. | #11 | 250 | €57.68 | |
| J1 | U34126.018.6668 | 0.689" | 0.6" to 0.65" | Aluminum | Steel | - | 292 lbs. | 471 lbs. | #11 | 250 | €41.62 | |
| K1 | U34124.018.6668 | 0.689" | 0.356" to 0.394" | Aluminum | Stainless Steel | - | 292 lbs. | 471 lbs. | #11 | 250 | €85.21 | |
| L1 | AD66-68BSLF200 | 0.716" | 5/8" | Aluminum | Steel | Grade 5052 | 350 lbs. | 505 lbs. | #11 | 250 | €110.26 | |
| M1 | U33191.018.0610 | 0.825" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €53.10 | |
| N1 | U34131.018.0610 | 0.825" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €78.55 | |
| O1 | U34122.018.0610 | 0.825" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €56.43 | |
| P1 | U34181.018.0610 | 0.825" | 0.6" to 0.65" | Stainless Steel | Stainless Steel | - | 950 lbs. | 1200 lbs. | #11 | 250 | €238.53 | |
| Q1 | SD612BSLF200 | 0.925" | 5/8" | Steel | Steel | Grade C1006/C1010 | 590 lbs. | 815 lbs. | #11 | 250 | €82.03 | |
| R1 | AD612ABSLF200 | 0.925" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €97.75 | |
| S1 | SSD612SSBSLF203 | 0.925" | 5/8" | Stainless Steel | Stainless Steel | - | 1000 lbs. | 1375 lbs. | #10 | 100 | €120.84 | |
| T1 | AD612BSLF200 | 0.925" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €75.61 | |
| U1 | U34126.018.6861 | 0.937" | 0.6" to 0.65" | Aluminum | Steel | - | 292 lbs. | 471 lbs. | #11 | 250 | €33.01 | |
| V1 | U34124.018.6861 | 0.937" | 0.356" to 0.394" | Aluminum | Stainless Steel | - | 292 lbs. | 471 lbs. | #11 | 250 | €96.50 | |
| W1 | SBL6-16V | 1 1/5" | 0.615" | Steel | Steel | - | 610 lbs. | 870 lbs. | #11 | 2000 | - | RFQ
|
| X1 | U33191.018.0616 | 1 1/5" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €70.70 | |
| Y1 | U34131.018.0616 | 1 1/5" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €60.82 | |
| Z1 | U34122.018.0616 | 1 1/5" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €101.68 | |

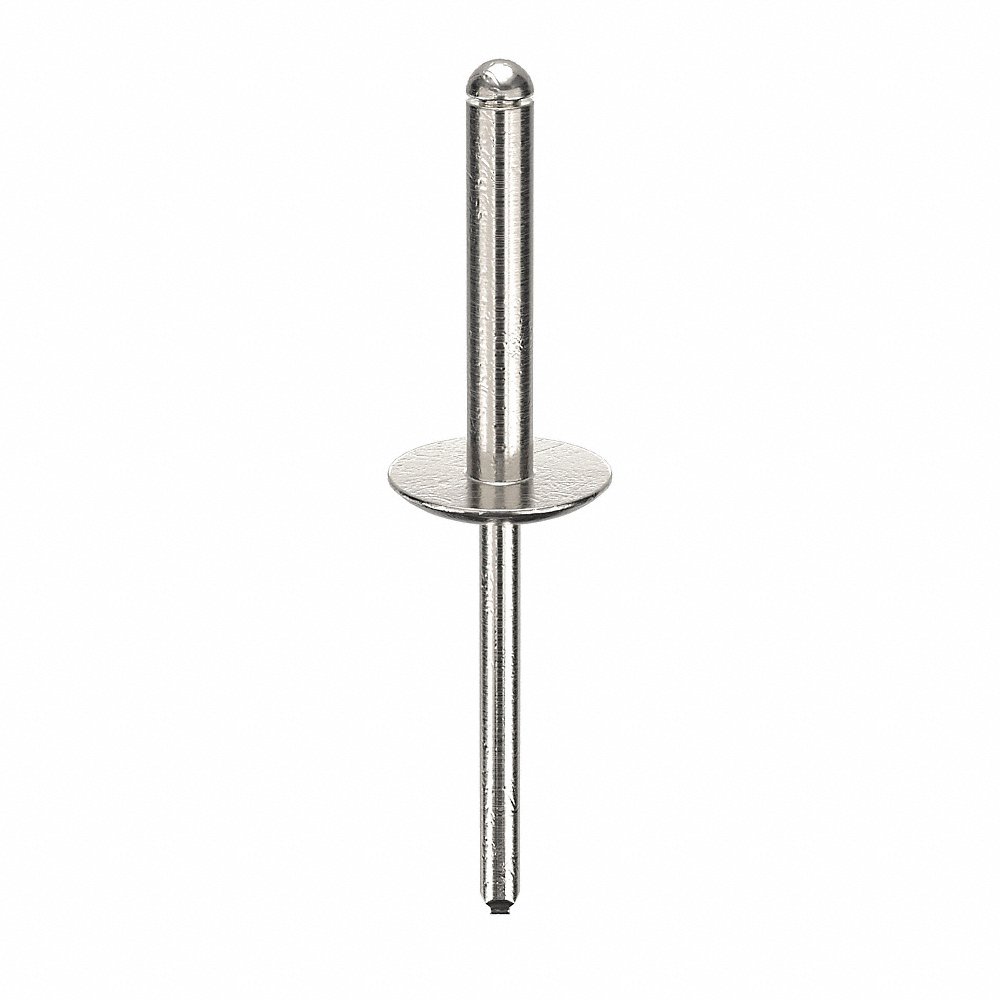

| A2 | U34126.018.6961 | 1.063" | 0.6" to 0.65" | Aluminum | Steel | - | 292 lbs. | 471 lbs. | #11 | 250 | €45.74 | |
| B2 | U34131.018.0614 | 1.075" | 0.6" to 0.65" | Steel | Steel | - | 540 lbs. | 680 lbs. | #11 | 250 | €48.38 | |
| C2 | U34122.018.0614 | 1.075" | 0.6" to 0.65" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €32.93 | |
| D2 | U33191.018.0614 | 1.075" | 0.6" to 0.65" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €82.97 | |

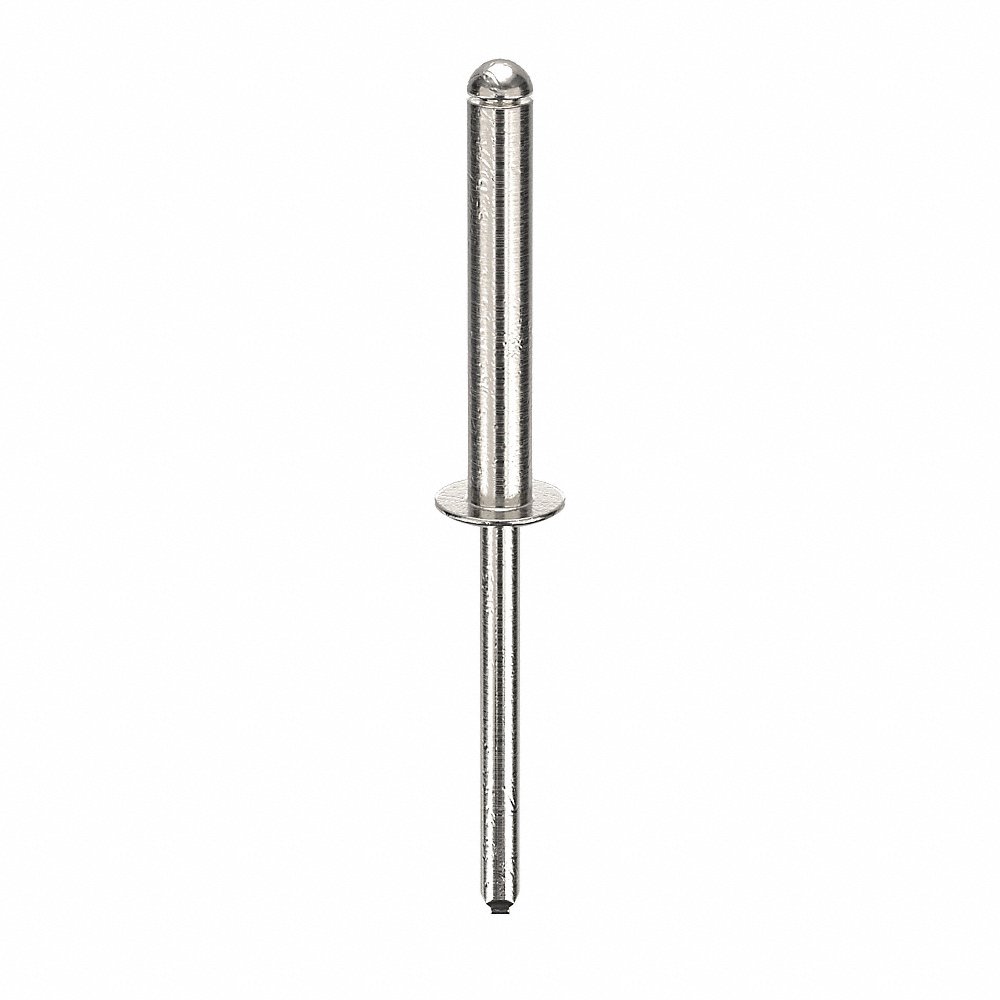

| E2 | AD616ABSLF200 | 1.175" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €157.96 | |
| F2 | AD616BSLF200 | 1.175" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €115.27 | |
| G2 | U34133.018.6264 | 1/2" | 0.6" to 0.65" | Steel | Steel | - | 583 lbs. | 695 lbs. | #11 | 250 | €44.38 | |
| H2 | AD610ABSLF200 | 4/5" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €59.89 | |
| I2 | SSD610SSBSLF203 | 4/5" | 5/8" | Stainless Steel | Stainless Steel | - | 1000 lbs. | 1375 lbs. | #10 | 100 | €107.71 |
