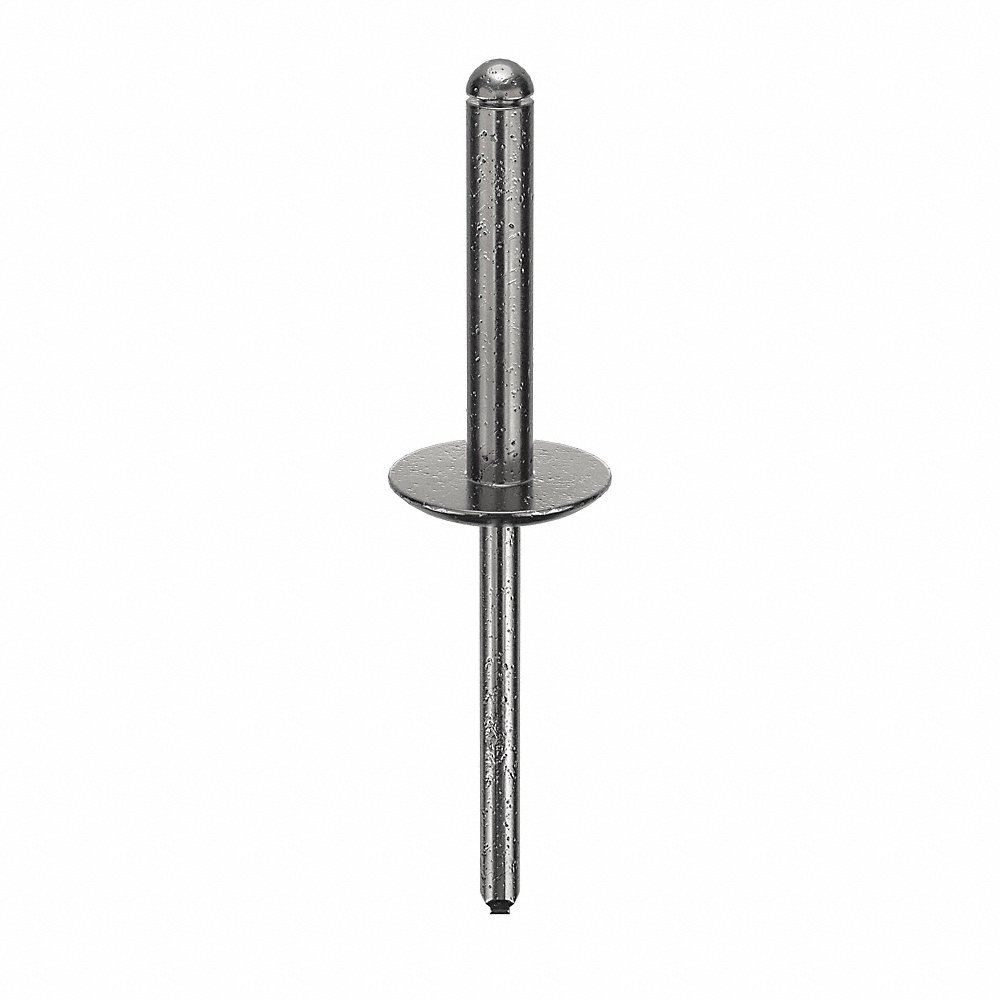

GRAINGER U34131.018.0614 Blind Rivet, 3/16 In Rivet Dia., Steel, 1.075 In Rivet Lg., 0.751 In To 0.875 In Grip Rng
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€47.88 /pkg. of 250
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Open End |
| Body Length | 1 5/64" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Steel |
| Color | Gray |
| Drill Size | #11 |
| Finish | Plain |
| Grip Range | 0.751" to 0.875" |
| Head Angle | 90° |
| Head Dia. | 0.6" to 0.65" |
| Head Diameter | 5/8" |
| Head Diameter Tolerance | -0.019" to +0.019" |
| Head Height | 0.092" |
| Head Style | Large Flanged |
| Head Type | Flanged |
| Hole Size | 0.192" to 0.196" |
| Ifi Grade | Grade IFI-114-30 |
| Mandrel Material | Steel |
| Maximum Hole Diameter | 0.196" |
| Maximum Material Thickness | 7/8" |
| Minimum Hole Diameter | 0.192" |
| Minimum Material Thickness | 3/4" |
| Overall Length | 2 27/64" |
| Product Type | Blind Rivet |
| Rivet Dia. | 3/16" |
| Rivet Length | 1.075" |
| Rivet Material | Steel |
| Rivet Number | 614 |
| Rivet Type | Open End |
| Shank Diameter | 0.188" |
| Shear Strength | 540 lbs. |
| Single Shear Strength | 540 lbs. |
| Standards | Ifi 114 |
| System Of Measurement | Imperial |
| Tensile Strength | 680 lbs. |
Shipping Info:
| Ship weight (kg) | 1.87 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308203000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD610ABSLF200 | 4/5" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €59.89 | |
 |
AD610BSLF200 | 4/5" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €65.44 | |
 |
AD612ABSLF200 | 0.925" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €97.75 | |
 |
AD612BSLF200 | 0.925" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €75.61 | |
 |
AD616ABSLF200 | 1.175" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €157.96 | |
 |
AD616BSLF200 | 1.175" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €115.27 | |
 |
AD62-64BSLF200 | 0.425" | 5/8" | Aluminum | Steel | Grade 5052 | 350 lbs. | 505 lbs. | #11 | 250 | €98.31 |
