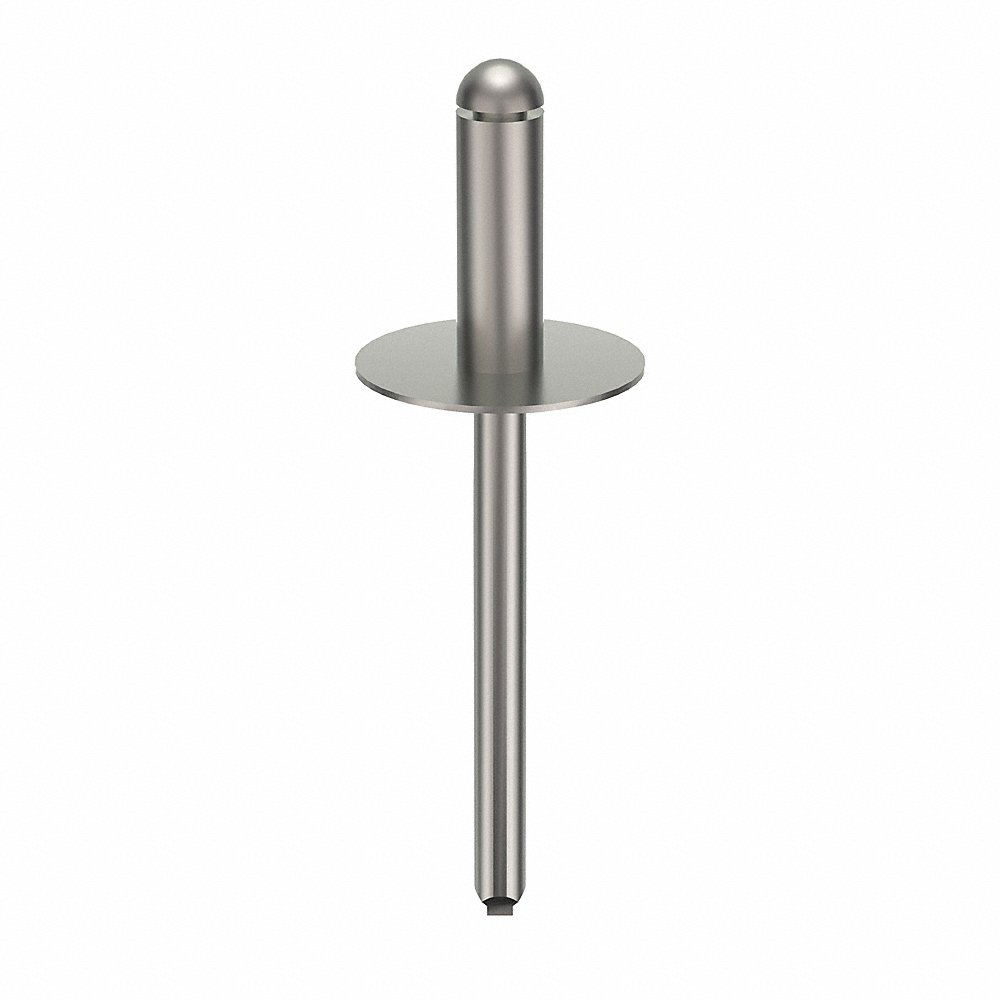

POP SSD66SSBSLF203 Blind Rivet, 3/16 In Rivet Dia., SS, 0.55 In Rivet Lg., 0.051 In Head Ht.
Item: AD3JAZModel: SSD66SSBSLF203Cross Ref: 3ZKT4
7 In Stock
Ships within 2 days via
10.00% off
€87.35 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Open End |
| Body Length | 35/64" |
| Body Material | Stainless Steel |
| Drill Size | #11 |
| Finish | Plain |
| Grip Range | 0.251" to 0.375" |
| Head Dia. | 5/8" |
| Head Height | 0.051" |
| Head Style | Large Flanged |
| Head Type | Flanged |
| Hole Size | 0.192" to 0.196" |
| Ifi Grade | Grade IFI-114-51 |
| Mandrel Material | Stainless Steel |
| Maximum Hole Diameter | 0.196" |
| Maximum Material Thickness | 3/8" |
| Minimum Hole Diameter | 0.192" |
| Minimum Material Thickness | 1/4" |
| Overall Length | 1 27/32" |
| Product Type | Blind Rivet |
| Rivet Dia. | 3/16" |
| Rivet Length | 0.55" |
| Rivet Material | Stainless Steel |
| Rivet Type | Open End |
| Shank Diameter | 0.183" |
| Shear Strength | 1000 lbs. |
| Single Shear Strength | 1000 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 1375 lbs. |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 9.4 |
| HS code | 8308206000 |
| Country of Origin | US |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD610ABSLF200 | 4/5" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €59.89 | |
 |
AD610BSLF200 | 4/5" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €65.44 | |
 |
AD612ABSLF200 | 0.925" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €97.75 | |
 |
AD612BSLF200 | 0.925" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €75.61 | |
 |
AD616ABSLF200 | 1.175" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €157.96 | |
 |
AD616BSLF200 | 1.175" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €115.27 | |
 |
AD62-64BSLF200 | 0.425" | 5/8" | Aluminum | Steel | Grade 5052 | 350 lbs. | 505 lbs. | #11 | 250 | €98.31 |
