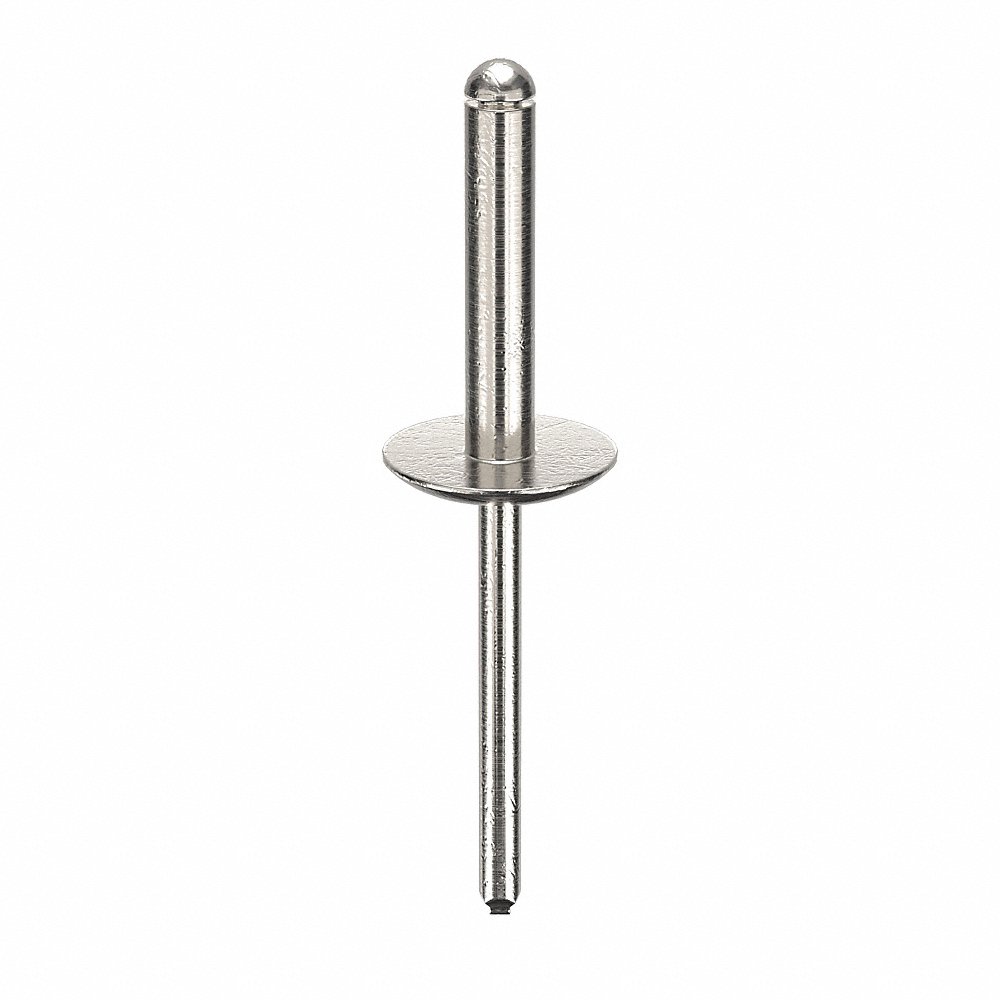

GRAINGER U34122.018.0612 Blind Rivet, 3/16 In Rivet Dia., Alu, 0.95 In Rivet Lg., 0.626 In to 0.75 In Grip Rng
Item: AG2WMYModel: U34122.018.0612Cross Ref: 32ML07
7 In Stock
Ships within 2 days via
5.00% off
€64.48 /pkg. of 250
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Open End |
| Body Length | 61/64" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Aluminum |
| Color | Gray |
| Drill Size | #11 |
| Finish | Plain |
| Grade | Grade 5056 |
| Grip Range | 0.626" to 0.75" |
| Head Angle | 90° |
| Head Dia. | 0.6" to 0.65" , 5/8" |
| Head Dia. Tolerance | -0.019" to +0.019" |
| Head Height | 0.092" |
| Head Style | Large Flanged |
| Head Type | Flanged |
| Hole Size | 0.192" to 0.196" |
| Ifi Grade | Grade IFI-114-19 |
| Mandrel Material | Steel |
| Max. Hole Dia. | 0.196" |
| Max. Material Thickness | 3/4" |
| Min. Hole Dia. | 0.192" |
| Min. Material Thickness | 5/8" |
| Overall Length | 2 19/64" |
| Product Type | Blind Rivet |
| Rivet Dia. | 3/16" |
| Rivet Length | 0.95" |
| Rivet Material | Aluminum |
| Rivet Number | 612 |
| Rivet Type | Open End |
| Shank Dia. | 0.188" |
| Shear Strength | 380 lbs. |
| Single Shear Strength | 380 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 500 lbs. |
Shipping Info:
| Ship weight (kg) | 1.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308206000 |
Product Details:
- 32ML07 is a suggested replacement of 5RUC1
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD610ABSLF200 | 4/5" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €48.91 | |
 |
AD610BSLF200 | 4/5" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €52.15 | |
 |
AD612ABSLF200 | 0.925" | 5/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €79.83 | |
 |
AD612BSLF200 | 0.925" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €61.75 | |
 |
AD616ABSLF200 | 1.175" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €129.02 | |
 |
AD616BSLF200 | 1.175" | 5/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €94.13 | |
 |
AD62-64BSLF200 | 0.425" | 5/8" | Aluminum | Steel | Grade 5052 | 350 lbs. | 505 lbs. | #11 | 250 | €80.29 |
