MKT FASTENING Grade 304 Standard Wedge Anchors
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1| Style | Model | Thread Size | Anchor Length | Anchor Dia. | Min. Embedment | Max. Work Thickness | Ultimate Tension In 4000 Psi Concrete | Ultimate Shear | Ultimate Tension | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2711200 | 1"-8 | 12" | 1" | 4 1/2" | 3" | 24375 lbs. | 28023 lbs. | 24375 lbs. | 5 | €518.02 | |
| B | 2719000 | 1"-8 | 9" | 1" | 4 1/2" | 4 1/2" | 15829 lbs. | 28023 lbs. | 15829 lbs. | 5 | €435.30 | |
| C | 2716000 | 1"-8 | 6" | 1" | 4 1/2" | 1 1/2" | 15829 lbs. | 28023 lbs. | 15829 lbs. | 5 | €304.14 | |
| D | 2712700B | 1/2"-13 | 7" | - | 2 1/4" | 2 1/2" | 5772 lbs. | 6828 lbs. | 5772 lbs. | 150 | €2,207.79 | |
| E | 2712512 | 1/2"-13 | 5 1/2" | 1/2" | 2 1/4" | 1" | 5772 lbs. | 6828 lbs. | 5772 lbs. | 10 | €117.65 | |
| F | 2712414B | 1/2"-13 | 4 1/4" | 1/2" | 2 1/4" | 2" | 5068 lbs. | 6828 lbs. | 5068 lbs. | 200 | €1,723.53 | |
| G | 2712700 | 1/2"-13 | 7" | 1/2" | 2 1/4" | 2 1/2" | 5772 lbs. | 6828 lbs. | 5772 lbs. | 10 | €242.26 | |
| H | 2712234 | 1/2"-13 | 2 3/4" | 1/2" | 2 1/4" | 1/2" | 5068 lbs. | 6828 lbs. | 5068 lbs. | 10 | €70.09 | |
| I | 2712334 | 1/2"-13 | 3 3/4" | 1/2" | 2 1/4" | 1 1/2" | 5068 lbs. | 6828 lbs. | 5068 lbs. | 10 | €88.51 | |
| J | 2712414 | 1/2"-13 | 4 1/4" | 1/2" | 2 1/4" | 2" | 5068 lbs. | 6828 lbs. | 5068 lbs. | 10 | €93.30 | |
| K | 2714214 | 1/4"-20 | 2 1/4" | 1/4" | 1 1/8" | 1 1/8" | 1015 lbs. | 1472 lbs. | 1173 lbs. | 20 | €50.32 | |
| L | 2714134 | 1/4"-20 | 1 3/4" | 1/4" | 1 1/8" | 5/8" | 1015 lbs. | 1472 lbs. | 1173 lbs. | 20 | €43.67 | |
| M | 2714314 | 1/4"-20 | 3 1/4" | 1/4" | 1 1/8" | 1" | 2711 lbs. | 1472 lbs. | 2711 lbs. | 20 | €56.54 | |
| N | 2734812 | 3/4"-10 | 8 1/2" | - | 3 3/8" | 1 3/4" | 16201 lbs. | 15126 lbs. | 16201 lbs. | 5 | €279.97 | |
| O | 2734100 | 3/4"-10 | 10" | 3/4" | 3 3/8" | 3 1/4" | 16201 lbs. | 15126 lbs. | 16201 lbs. | 4 | €242.89 | |
| P | 2734414 | 3/4"-10 | 4 1/4" | 3/4" | 3 3/8" | 7/8" | 11975 lbs. | 15126 lbs. | 11975 lbs. | 5 | €111.50 | |
| Q | 2734434 | 3/4"-10 | 4 3/4" | 3/4" | 3 3/8" | 1 3/8" | 11975 lbs. | 15126 lbs. | 11975 lbs. | 5 | €123.94 | |
| R | 2734512 | 3/4"-10 | 5 1/2" | 3/4" | 3 3/8" | 2 1/8" | 11975 lbs. | 15126 lbs. | 11975 lbs. | 5 | €150.67 | |
| S | 2734614 | 3/4"-10 | 6 1/4" | 3/4" | 3 3/8" | 2 7/8" | 11975 lbs. | 15126 lbs. | 11975 lbs. | 5 | €163.08 | |
| T | 2734700 | 3/4"-10 | 7" | 3/4" | 3 3/8" | 1/4" | 16201 lbs. | 15126 lbs. | 16201 lbs. | 5 | €242.45 | |
| U | 273412T | 3/4"-10 | 12" | 3/4" | 3 3/8" | 5 1/4" | 16201 lbs. | 15126 lbs. | 16201 lbs. | 4 | €298.49 | |
| V | 2738334B | 3/8"-16 | 3 3/4" | 3/8" | 1 5/8" | 2 1/8" | 5203 lbs. | 3151 lbs. | 3556 lbs. | 400 | €1,779.12 | |
| W | 2738214 | 3/8"-16 | 2 1/4" | 3/8" | 1 5/8" | 5/8" | 2367 lbs. | 3151 lbs. | 2289 lbs. | 20 | €80.84 | |
| X | 2738234 | 3/8"-16 | 2 3/4" | 3/8" | 1 5/8" | 1 1/8" | 2367 lbs. | 3151 lbs. | 2289 lbs. | 20 | €84.87 | |
| Y | 2738300 | 3/8"-16 | 3" | 3/8" | 1 5/8" | 1 3/8" | 2367 lbs. | 3151 lbs. | 2289 lbs. | 20 | €102.47 | |
| Z | 2738500 | 3/8"-16 | 5" | 3/8" | 1 5/8" | 3 3/8" | 5203 lbs. | 3151 lbs. | 3556 lbs. | 20 | €136.41 | |
| A1 | 2738334 | 3/8"-16 | 3 3/4" | 3/8" | 1 5/8" | 2 1/8" | 5203 lbs. | 3151 lbs. | 3556 lbs. | 20 | €109.39 | |
| B1 | 2758312 | 5/8"-11 | 3 1/2" | 5/8" | 2 3/4" | 3/4" | 5556 lbs. | 9659 lbs. | 5556 lbs. | 5 | €81.68 | |
| C1 | 2758700 | 5/8"-11 | 7" | 5/8" | 2 3/4" | 1 3/8" | 9294 lbs. | 9659 lbs. | 9294 lbs. | 5 | €165.16 | |
| D1 | 2758600 | 5/8"-11 | 6" | 5/8" | 2 3/4" | 3/8" | 9294 lbs. | 9659 lbs. | 9294 lbs. | 5 | €95.53 | |
| E1 | 2758500 | 5/8"-11 | 5" | 5/8" | 2 3/4" | 2 1/4" | 5556 lbs. | 9659 lbs. | 5556 lbs. | 5 | €84.59 | |
| F1 | 2758412 | 5/8"-11 | 4 1/2" | 5/8" | 2 3/4" | 1 3/4" | 5556 lbs. | 9659 lbs. | 5556 lbs. | 5 | €93.71 | |
| G1 | 2758812 | 5/8"-11 | 8 1/2" | 5/8" | 2 3/4" | 2 3/8" | 9294 lbs. | 9659 lbs. | 9294 lbs. | 5 | €180.91 | |

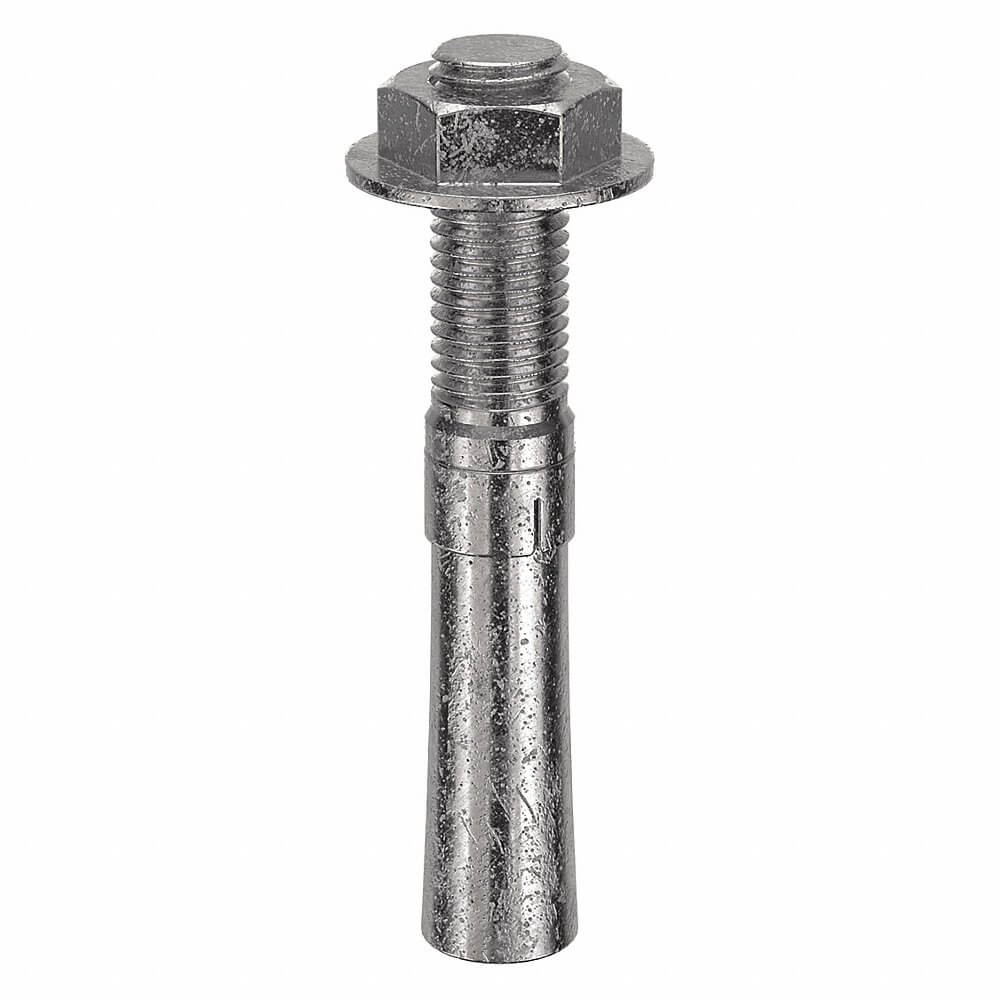

| H1 | 2778600 | 7/8"-9 | - | 7/8" | 4" | 2" | 13902 lbs. | 21574 lbs. | 13902 lbs. | 4 | €212.49 | |
| I1 | 2778800 | 7/8"-9 | 8" | 7/8" | 4" | 4" | 13902 lbs. | 21574 lbs. | 13902 lbs. | 4 | €268.00 | |
| J1 | 2778100 | 7/8"-9 | 10" | 7/8" | 4" | 2" | 20288 lbs. | 21574 lbs. | 20288 lbs. | 4 | €328.55 |
