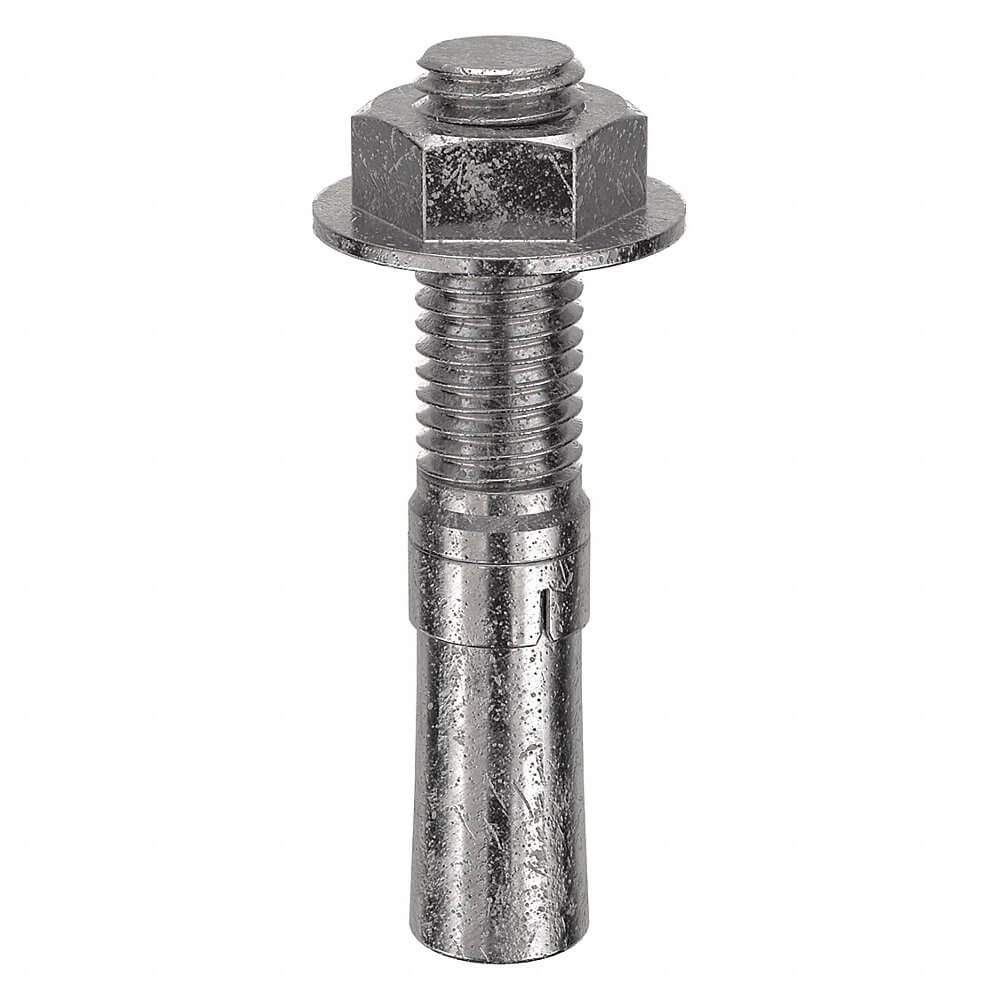

MKT FASTENING 2758312 Wedge Anchor, 5/8 In - 11 Thread Size, 3 1/2 In Anchor Lg., 1 5/8 In Thread Lg., Gr. 304
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€77.60 /pkg. of 5
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 5/8" |
| Anchor Diameter | 5/8" |
| Anchor Length | 3 1/2" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Plain |
| Grade | 304 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Fm Approved, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Ul Listed |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Work Thickness | 3/4" |
| Maximum Installation Torque | 75 lbs.-ft. |
| Maximum Material Thickness | 1/8" |
| Maximum Ultimate Shear Strength | 9659 lbs. |
| Maximum Ultimate Tension Strength | 5556 lbs. |
| Min. Embedment | 2 3/4" |
| Minimum Installation Depth | 2 3/4" |
| Minimum Installation Torque | 40 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 3 1/2" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 1 5/8" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 5556 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 9659 lbs. |
| Ultimate Tension | 5556 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 5486 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 5556 lbs. |
| Washer Outside Diameter | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 10.67 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Anchor Length | Anchor Dia. | Thread Length | Min. Embedment | Max. Work Thickness | Ultimate Tension In 4000 Psi Concrete | Ultimate Shear | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2714134 | 1/4"-20 | 1 3/4" | 1/4" | 7/8" | 1 1/8" | 5/8" | 1015 lbs. | 1472 lbs. | 20 | €43.67 | |
 |
2714214 | 1/4"-20 | 2 1/4" | 1/4" | 1 3/8" | 1 1/8" | 1 1/8" | 1015 lbs. | 1472 lbs. | 20 | €50.32 | |
 |
2714314 | 1/4"-20 | 3 1/4" | 1/4" | 2 1/4" | 1 1/8" | 1" | 2711 lbs. | 1472 lbs. | 20 | €56.54 | |
 |
2738214 | 3/8"-16 | 2 1/4" | 3/8" | 1 3/16" | 1 5/8" | 5/8" | 2367 lbs. | 3151 lbs. | 20 | €80.84 | |
 |
2738234 | 3/8"-16 | 2 3/4" | 3/8" | 1 5/8" | 1 5/8" | 1 1/8" | 2367 lbs. | 3151 lbs. | 20 | €84.87 | |
 |
2738300 | 3/8"-16 | 3" | 3/8" | 1 7/8" | 1 5/8" | 1 3/8" | 2367 lbs. | 3151 lbs. | 20 | €102.47 | |
 |
2738334 | 3/8"-16 | 3 3/4" | 3/8" | 2 5/8" | 1 5/8" | 2 1/8" | 5203 lbs. | 3151 lbs. | 20 | €109.39 |
