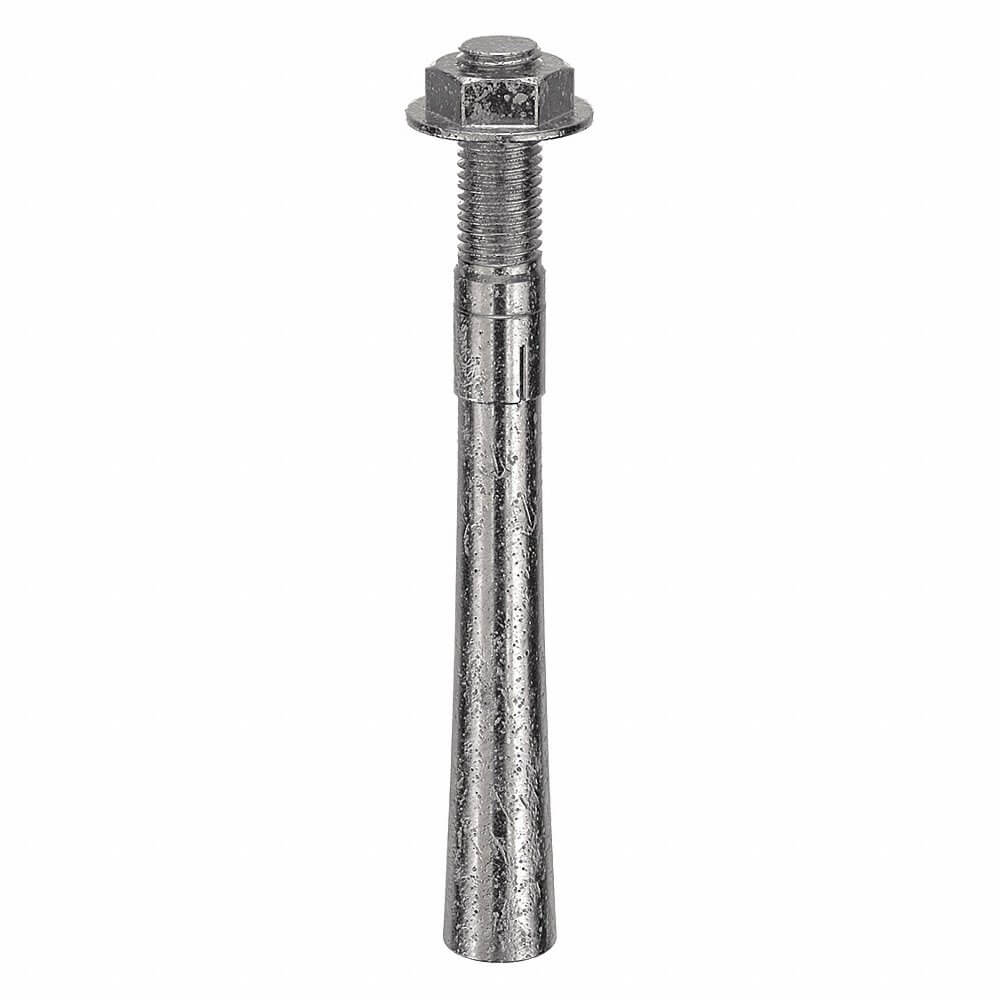

MKT FASTENING 2778100 Wedge Anchor, 7/8 In - 9 Thread Size, 10 In Anchor Lg., 2 1/4 In Thread Lg., Gr. 304
Item: AB6KNUModel: 2778100Cross Ref: 21U972
7 In Stock
Ships within 2 days via
€240.49 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 7/8" |
| Anchor Length | 10" |
| Compatible Material | Concrete |
| Display Qty | 4 |
| Drill Bit Size | 7/8" |
| Finish | Plain |
| Grade | 304 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Installation Torque | 225 lbs.-ft. |
| Max. Material Thickness | 5 1/8" |
| Max. Ultimate Shear Strength | 21574 lbs. |
| Max. Ultimate Tension Strength | 20288 lbs. |
| Max. Work Thickness | 2" |
| Min. Embedment | 4" |
| Min. Installation Depth | 4" |
| Min. Installation Torque | 125 lbs.-ft. |
| Min. Material Thickness | 6" |
| Nut Width | 1.3125" |
| Overall Length | 10" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 2 1/4" |
| Thread Size | 7/8"-9 |
| Ultimate Pullout (lb.) | 20288 |
| Ultimate Shear | 21574 lbs. |
| Ultimate Shear Strength 4000 Psi Concrete | 21574 lbs. |
| Ultimate Tension | 20288 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 14378 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 20288 lbs. |
| Washer Outside Dia. | 1.75" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 13.34 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Anchor Length | Anchor Dia. | Min. Embedment | Max. Work Thickness | Ultimate Shear | Ultimate Tension | Min. Installation Depth | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2714134 | 1/4"-20 | 1 3/4" | 1/4" | 1 1/8" | 5/8" | 1472 lbs. | 1173 lbs. | - | 20 | €34.87 | |
 |
2714214 | 1/4"-20 | 2 1/4" | 1/4" | 1 1/8" | 1 1/8" | 1472 lbs. | 1173 lbs. | 1 1/8" | 20 | €38.22 | |
 |
2714314 | 1/4"-20 | 3 1/4" | 1/4" | 1 1/8" | 1" | 1472 lbs. | 2711 lbs. | - | 20 | €44.92 | |
 |
2738214 | 3/8"-16 | 2 1/4" | 3/8" | 1 5/8" | 5/8" | 3151 lbs. | 2289 lbs. | 1 5/8" | 20 | €63.78 | |
 |
2738234 | 3/8"-16 | 2 3/4" | 3/8" | 1 5/8" | 1 1/8" | 3151 lbs. | 2289 lbs. | 1 5/8" | 20 | €66.88 | |
 |
2738300 | 3/8"-16 | 3" | 3/8" | 1 5/8" | 1 3/8" | 3151 lbs. | 2289 lbs. | 1 5/8" | 20 | €76.77 | |
 |
2738334 | 3/8"-16 | 3 3/4" | 3/8" | 1 5/8" | 2 1/8" | 3151 lbs. | 3556 lbs. | 1 5/8" | 20 | €85.77 |
