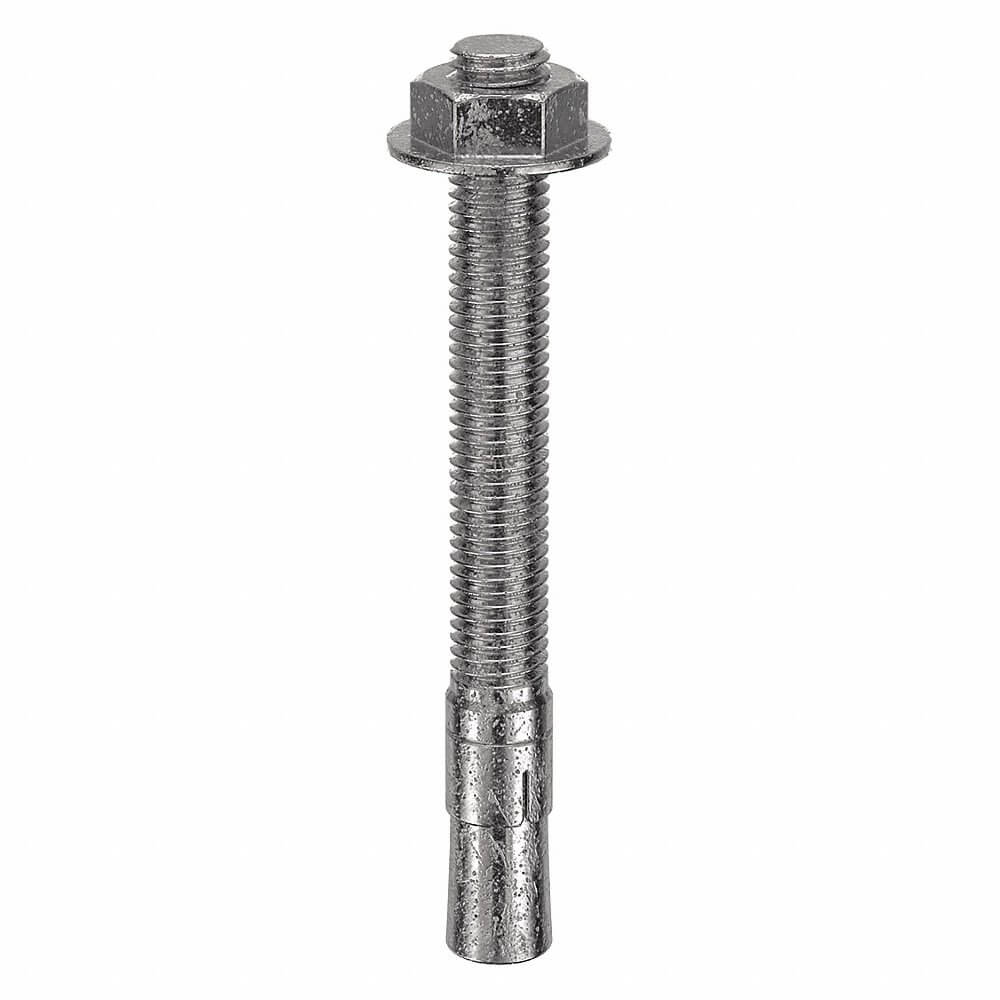

MKT FASTENING 2758600 Wedge Anchor, 5/8 In - 11 Thread Size, 6 In Anchor Lg., 4 1/8 In Thread Lg., Gr. 304, 3/8 In Max. Work Thk.
Item: AB6KNEModel: 2758600Cross Ref: 21U959
7 In Stock
Ships within 2 days via
€66.86 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 5/8" |
| Anchor Diameter | 5/8" |
| Anchor Length | 6" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Plain |
| Grade | 304 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Fm Approved, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Ul Listed |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Work Thickness | 3/8" |
| Maximum Installation Torque | 75 lbs.-ft. |
| Maximum Material Thickness | 2 5/8" |
| Maximum Ultimate Shear Strength | 9659 lbs. |
| Maximum Ultimate Tension Strength | 9294 lbs. |
| Min. Embedment | 2 3/4" |
| Minimum Installation Depth | 2 3/4" |
| Minimum Installation Torque | 40 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 6" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 4 1/8" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 9294 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 9659 lbs. |
| Ultimate Tension | 9294 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 6957 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 9294 lbs. |
| Washer Outside Diameter | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.19 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 13.46 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Anchor Length | Anchor Dia. | Min. Embedment | Max. Work Thickness | Ultimate Tension In 4000 Psi Concrete | Ultimate Shear | Ultimate Tension | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2714134 | 1/4"-20 | 1 3/4" | 1/4" | 1 1/8" | 5/8" | 1015 lbs. | 1472 lbs. | 1173 lbs. | 20 | €30.57 | |
 |
2714214 | 1/4"-20 | 2 1/4" | 1/4" | 1 1/8" | 1 1/8" | 1015 lbs. | 1472 lbs. | 1173 lbs. | 20 | €35.22 | |
 |
2714314 | 1/4"-20 | 3 1/4" | 1/4" | 1 1/8" | 1" | 2711 lbs. | 1472 lbs. | 2711 lbs. | 20 | €39.58 | |
 |
2738214 | 3/8"-16 | 2 1/4" | 3/8" | 1 5/8" | 5/8" | 2367 lbs. | 3151 lbs. | 2289 lbs. | 20 | €56.59 | |
 |
2738234 | 3/8"-16 | 2 3/4" | 3/8" | 1 5/8" | 1 1/8" | 2367 lbs. | 3151 lbs. | 2289 lbs. | 20 | €59.41 | |
 |
2738300 | 3/8"-16 | 3" | 3/8" | 1 5/8" | 1 3/8" | 2367 lbs. | 3151 lbs. | 2289 lbs. | 20 | €71.74 | |
 |
2738334 | 3/8"-16 | 3 3/4" | 3/8" | 1 5/8" | 2 1/8" | 5203 lbs. | 3151 lbs. | 3556 lbs. | 20 | €76.57 |
