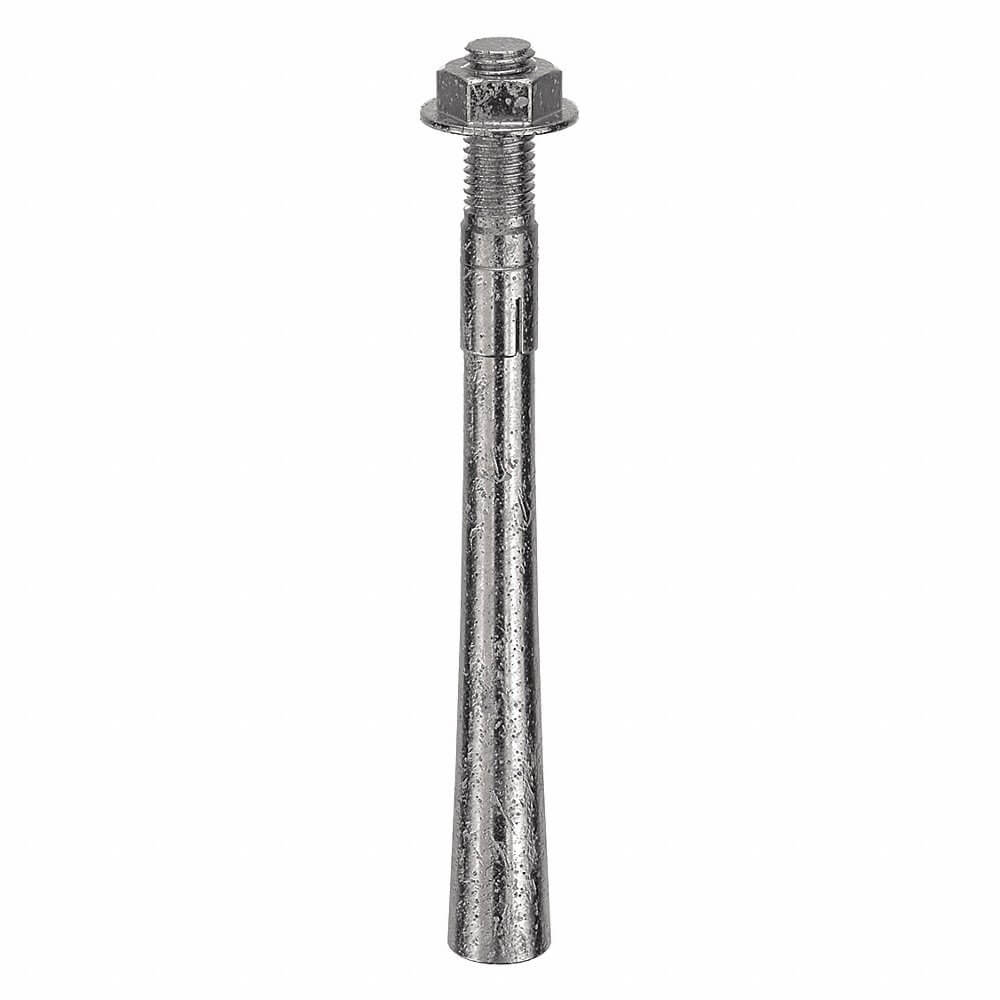

MKT FASTENING 2758812 Wedge Anchor, 5/8 In - 11 Thread Size, 8 1/2 In Anchor Lg., 1 1/2 In Thread Lg., Gr. 304
Item: AB6KNGModel: 2758812Cross Ref: 21U961
7 In Stock
Ships within 2 days via
10.00% off
€162.83 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 5/8" |
| Anchor Diameter | 5/8" |
| Anchor Length | 8 1/2" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Plain |
| Grade | 304 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Dot Metro Dade Nca No: 10-0928.01, Fm Approved, Gsa Specification Ff-S-325C, Group Ii, Type 4, Class 1, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Ul Listed |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Work Thickness | 2 3/8" |
| Maximum Installation Torque | 75 lbs.-ft. |
| Maximum Material Thickness | 5 1/8" |
| Maximum Ultimate Shear Strength | 9659 lbs. |
| Maximum Ultimate Tension Strength | 9294 lbs. |
| Min. Embedment | 2 3/4" |
| Minimum Installation Depth | 2 3/4" |
| Minimum Installation Torque | 40 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 8 1/2" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 1 1/2" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 9294 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 9659 lbs. |
| Ultimate Tension | 9294 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 6957 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 9294 lbs. |
| Washer Outside Diameter | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.78 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 13.21 |
| HS code | 7316000000 |
| Country of Origin | US |
