LEESON General Purpose Motors, Single Phase, Totally Enclosed, Four in One, C Face Footed
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O| Style | Model | Voltage | Nameplate Rpm | Frequency | Full Load Amps | Motor Type | Service Factor | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 056C17F5320 | 115/208-230V | 1725 RPM | 50/60 Hz | 6.6/3.1-3.3A | Capacitor Start | 1.15 | 1/3 hp | Face/Base | €673.78 | |
| B | 056C17F5321 | 115/208-230V | 1725 RPM | 50/60 Hz | 8.8/4.2-4.4A | Capacitor Start | 1.15 | 1/2 hp | Face/Base | €551.92 | |
| C | 056C11F5302 | 115/208-230V | 1140 RPM | 60 Hz | 6.8/3.1-3.4A | Capacitor Start | 1.15 | 1/4 hp | Face/Base | €619.81 | |
| D | 056B17F5305 | 115/208-230V AC | 1770 RPM | 50/60 Hz | 15.2/7.6-8.2A | Capacitor Start/Run | 1.15 | - | Face/Base | €810.57 | |
| E | 056B34F5326 | 115/208-230V AC | 3450 RPM | 60 Hz | 14.2/7.7-7.1A | Capacitor Start/Run | 1.15 | 1 1/2 hp | Face/Base | €703.78 | |
| F | 056C17F5322 | 115/208-230V AC | 1725 RPM | 50/60 Hz | 11/5.4-5.5A | Capacitor Start | 1.15 | 3/4 hp | Face/Base | €930.01 | |
| G | 056C17F5323 | 115/208-230V AC | 1725 RPM | 50/60 Hz | 13.4/6.7-6.8A | Capacitor Start | 1.15 | 1 hp | - | €705.63 | |
| H | 056C34F5302 | 115/208-230V AC | 3450 RPM | 60 Hz | 10.6/5.3A | Capacitor Start | 1.15 | 3/4 hp | Face, Base | €496.35 | |
| I | 056C11F5303 | 115/208-230V AC | 1140 RPM | 60 Hz | 7.8/3.6-3.9A | Capacitor Start | 1.15 | 1/3 hp | - | €692.05 | |
| J | 056B34F5327 | 115/208-230V AC | 3450 RPM | 60 Hz | 16.6/8.3-9.4A | Capacitor Start/Run | 1.15 | 2 hp | Face/Base | €846.38 | |
| K | 056B11F5303 | 115/208-230V AC | 1140 RPM | 50/60 Hz | 9.6/4.8-4.7A | Capacitor Start/Run | 1.15 | 1/2 hp | Face, Base | €841.44 | |

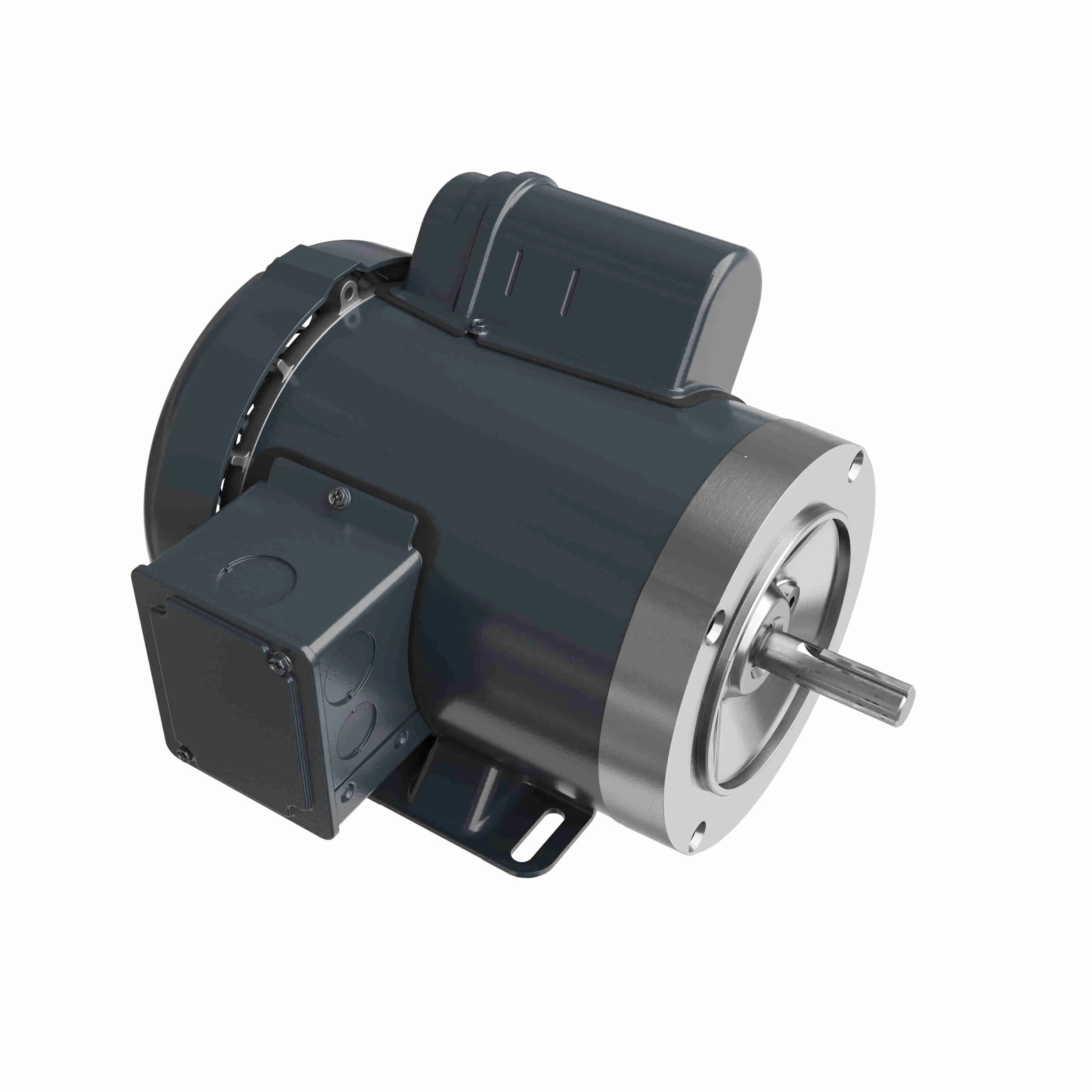

| L | 056C34F5301 | 115/208-230V AC | 3450 RPM | 60 Hz | 8.4/4-4.2A | Capacitor Start | 1.15 | 1/2 hp | - | €411.15 | |
| M | 056B17F5306 | 115/208-230V AC | 1725 RPM | 50/60 Hz | 20/10-10.8A | Capacitor Start/Run | 1.0 | 2 hp | Face/Base | €1,018.01 | |
| N | 056C34F5303 | 115/208-230V AC | 3450 RPM | 60 Hz | 11.2/5.6-5.7A | Capacitor Start | 1.15 | 1 hp | Face, Base | €559.32 | |
| O | 056B34F5328 | 208-230V AC | 3450 RPM | 60 Hz | 11.8-13.1A | Capacitor Start/Run | 1.15 | 3 hp | Face/Base | €1,130.98 |
