EATON E50 Series NEMA Heavy Duty Plug-In Limit Switches


Eaton E50 Series NEMA heavy-duty plug-in limit switches control and monitor the movement of machinery and equipment. These switches can be installed quickly and easily using a plug-in mounting system & their modular design makes them simple to replace components as needed.

Filter
EATON E50DS3Y2A
EATON E50RAMB
EATON E50RBC
EATON E50AR1S12D
EATON E50SAE
EATON E50RAP5F
EATON E50RB20G
EATON E50RASH
EATON E50SGI
EATON E50SANJ
EATON E50SNK
EATON E50SALL
EATON E50SBLM
EATON E50SBN
EATON E50SBNO
EATON E50ALS1P
EATON E50BS39Y1Q
EATON E50NN19R
EATON E50AR16PCS
EATON E50AR19Y2T
EATON E50AR1P5U
EATON E50SAL6PV
EATON E50SAL6PCW
EATON E50BR1SX
EATON E50TD1Y
EATON E50DN2Z
EATON E50GG1A1
EATON E50NN1SY100EZB1
EATON E50ANR1C1
EATON E50ALR16PCY1D1
StyleModelHeightMax. AmpsMax. Operating Temp.Min. Operating Temp.Ip RatingContact RatingContact ConfigurationSwitch TypePrice
A
E50DS3Y2		---------
RFQ
A
E50BNS2		--------€756.62
A
E50DN19		--------€273.44
A
E50GG1P5		--------€855.25
A
E50ALH1		--------€698.12
A
E50AT3Y2		--------€573.84
B
E50RAM		--------€135.79
C
E50RB		--------€95.02
A
E50ARY17		--------€837.33
A
E50RY5		--------€361.54
A
E50RY17		---------
RFQ
A
E50RBM		--------€130.57
A
E50ANR16PC		-10A201°F10°FIP67, IP69K10A At 240V AC, 1A At 125V DC1 NC, 1 NOSide Rotary€1,179.94
D
E50AR1S12		0.114"1A200°F10°FIP6710A At 240V AC, 1A At 250V DC1 NC, 1 NO-€775.00
A
E50BR120		1 1/2"10A201°F10°FIP6710A At 240V AC, 1A At 250V DC2 NO, 2 NCSide Rotary€691.17
E
E50SA		1 3/4"10A250°F-40°FIP6710A At 12V AC, 1A At 125V DC1 NC, 1 NO-€116.80
A
E50RAP5-W		1 3/4"-250°F-40°FIP67---€297.86
A
E50DS39Y1		1.05"-201°F-40°FIP67--Side push roller€519.81
A
E50DN2Y4		1.05"-250°F14°FIP67--Neutral position€234.08
F
E50RAP5		1.06"-250°F-40°FIP67---€440.38
G
E50RB20		1.06"-250°F-40°FIP67---€141.41
H
E50RAS		1.06"-200°F10°FIP67--Pre-wired cable€195.46
H
E50RAS20		1.06"-200°F10°FIP67--Pre-wired cable-
RFQ
A
E50BR19		1.7"10A174°F-40°FIP6710A At 240V AC, 1A At 250V DC2 NO, 2 NCSide Rotary€748.60
I
E50SG		1.73"-201°F14°FIP675A At 240V1 NC, 1 NO-€473.61
J
E50SAN		1.73"10A250°F-40°FIP6710A At 12V AC, 1A At 125V DC1 NC, 1 NO-€474.32
K
E50SN		1.73"1A201°F14°FIP6710A At 240V AC, 1A At 250V DC1 NC, 1 NO-€331.95
L
E50SAL		1.73"10A250°F-40°FIP6710A At 12V AC, 1A At 125V DC1 NC, 1 NO-€283.39
M
E50SBL		1.73"10A250°F-40°FIP6710A At 12V AC, 1A At 125V DC2 NO, 2 NC-€587.85
N
E50SB		1.73"10A250°F-40°FIP6710A At 12V AC, 1A At 125V DC2 NO, 2 NC-€332.91
O
E50SBN		1.73"10A250°F-40°FIP6710A At 12V AC, 1A At 125V DC2 NO, 2 NC-€181.06
P
E50ALS1		2 1/4"1A201°F14°FIP6710A At 12V AC, 1A At 125V DC1 NC, 1 NO-€625.00
Q

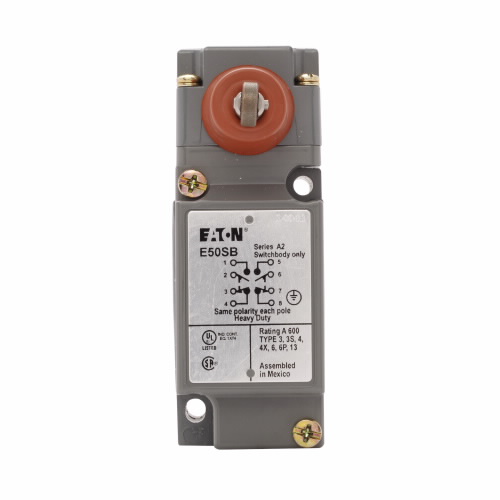

E50BS39Y1		2 14/25"1A250°F-40°FIP6710A At 240V AC, 1A At 250V DC2 NO, 2 NC-€718.28
A
E50RBS12		2 23/25"-221°F-40°FIP67---€531.77
A
E50RB34		2 23/25"-250°F-40°FIP67---€168.17
A
E50RA20S12		2 23/25"-221°F-40°FIP67---€303.37
A
E50RAA5		2 23/25"-250°F-40°FIP67---€358.54
A
E50RA20S		2 23/25"-221°F-40°FIP67---€195.46
G
E50RBS		2 23/25"-221°F-40°FIP67---€626.78
A
E50RBS20		2 23/25"-221°F-40°FIP67---€736.49
A
E50RBS30		2 23/25"-221°F-40°FIP67---€1,129.42
A
E50ALT3		2"10A250°F14°FIP6710A At 240V AC, 1A At 125V DC1 NC, 1 NOTop push roller€646.93
R
E50NN19		2"10A201°F-40°FIP6710A At 240V AC, 1A At 250V DC2 NO, 2 NCNeutral position€573.10
A
E50BR16PY2		2"-------€651.62
H
E50RAS12		2"-221°F-40°FIP67---€394.72
S
E50AR16PC		2.41"10A200°F10°FIP67, IP69K10A At 240V AC, 1A At 250V DC1 NC, 1 NO-€1,000.55
T
E50AR19Y2		2.46"1A175°F-40°FIP6710A At 240V AC, 1A At 250V DC1 NC, 1 NO-€693.37
U
E50AR1P5		2.46"1A200°F10°FIP6710A At 240V AC, 1A At 250V DC1 NC, 1 NO-€832.25
V
E50SAL6P		2.46"10A175°F-31°FIP67, IP69K10A At 240V AC, 1A At 250V DC1 NC, 1 NO-€810.68
W
E50SAL6PC		2.46"10A250°F-40°FIP67, IP69K10A At 240V AC, 1A At 250V DC1 NC, 1 NO-€818.25
V
E50SB6P		2.46"10A175°F-31°FIP67, IP69K10A At 240V AC, 1A At 250V DC2 NO, 2 NC-€875.79
W
E50SA6PC		2.46"10A250°F-40°FIP67, IP69K10A At 240V AC, 1A At 250V DC1 NC, 1 NO-€696.46
V
E50SA6P		2.46"10A250°F-40°FIP67, IP69K10A At 240V AC, 1A At 250V DC1 NC, 1 NO-€641.42
X
E50BR1S		2.46"1A200°F10°FIP6710A At 240V AC, 1A At 250V DC2 NO, 2 NC-€877.46
Y
E50TD1		2.46"10A201°F14°FIP6710A At 12V AC, 1A At 125V DC1 NC, 1 NOConvertible Two-step CW, CCW-
RFQ
Z
E50DN2		2.46"-201°F14°FIP67--Neutral position 15 AA travel€218.63
A1
E50GG1		2.46"5A201°F14°FIP675A At 250V1 NC, 1 NOGravity return-
RFQ
B1
E50NN1SY100EZ		2.46"10A201°F14°FIP6710A At 12V AC, 1A At 125V DC2 NO, 2 NCNeutral position€808.69
W
E50SB6PC		2.46"10A250°F-40°FIP67, IP69K10A At 240V AC, 1A At 250V DC2 NO, 2 NC-€1,238.48
C1
E50ANR1		2.46"1A200°F10°FIP6710A At 12V AC, 1A At 125V DC1 NC, 1 NO-€622.22
D1
E50ALR16PCY1		2.46"10A200°F10°FIP67, IP69K10A At 240V AC, 1A At 250V DC1 NC, 1 NO-€865.15

Working Mechanism

  • Eaton E50 Series NEMA heavy-duty plug-in limit switches consist of a mechanical actuator and an electrical contact. When the actuator comes into contact with an object, it triggers the electrical contact to signal to a controlling device, such as a programmable logic controller (PLC) or a motor starter.

Frequently Asked Questions

How to install Eaton E50 series NEMA heavy-duty plug-in limit switches?

Insert the switch into the mounting base and secure them in place using the locking clip.

What are the travel ratings of these limit switches?

Standard 5 and 90 degrees pre-travel and total travel, respectively.

Which gaskets are used in these limit switches?

Chemical-resistant Viton gaskets.

What is the difference between a limit switch and a proximity switch?

  • A limit switch uses a mechanical actuator to trigger an electrical signal, while a proximity switch uses a magnetic field to detect the presence or absence of a target object.
  • A limit switch is used where precise positioning or detection is required, while proximity switches is suitable for object detection in harsh environments.
