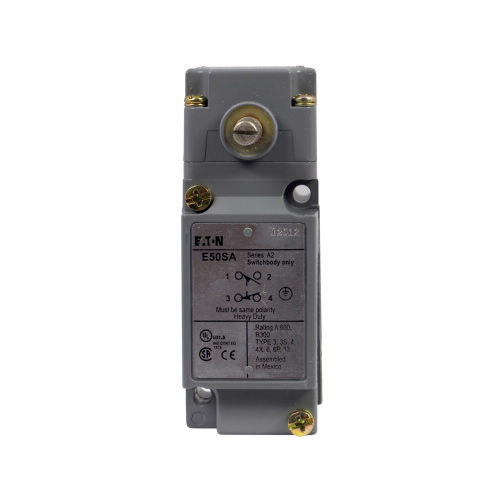

EATON E50AR19Y2 Heavy Duty Plug-In Limit Switch, 600 VAC, 250 VDC, 10/1A, 1NC-1NO Contact, 1P
Get it by Tuesday, Feb 17
€693.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Accessories | E50KL33 |
| Actuator Type | Side Rotary |
| Connection | Screw Terminal |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 240V AC, 1A At 250V DC |
| Enclosure Material | Die Cast Zinc |
| Height | 2.46" |
| Ip Rating | IP67 |
| Length | 4.22" |
| Max. Ac Amps | 10A Continuous |
| Max. Dc Amps | 1A |
| Max. Operating Temp. | 175°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Series | E50 heavy duty Series |
| Type | Assembly |
| Warranty | 1 yr. |
| Width | 1.54" |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 6.25 |
| Ship length (cm) | 10.72 |
| Ship width (cm) | 3.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Contact Form | Ac Contact Rating | Height | Cable Length | Type | Dc Contact Rating | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50AR19 | IP67 | - | - | 3" | - | Assembly | - | - | €558.47 | |
 |
E50SAL6P | IP67, IP69K | 1NO/1NC | 10A @ 240V | 2.46" | 96 ft. | - | 1A @ 250V | - | €810.68 | |
|
E50SA6P | IP67, IP69K | 1NO/1NC | 10A @ 240V | 2.46" | 96 ft. | - | 1A @ 250V | - | €641.42 | |
 |
E50ANL16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | €903.17 | |
 |
E50AR16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | €614.81 | |
|
E50AW16P12 | IP67, IP69K | - | - | 5.38" | 144 ft. | - | - | - | €844.26 | |
|
E50AW26P12 | IP67, IP69K | - | - | 5.38" | - | - | - | - | - | RFQ
|
