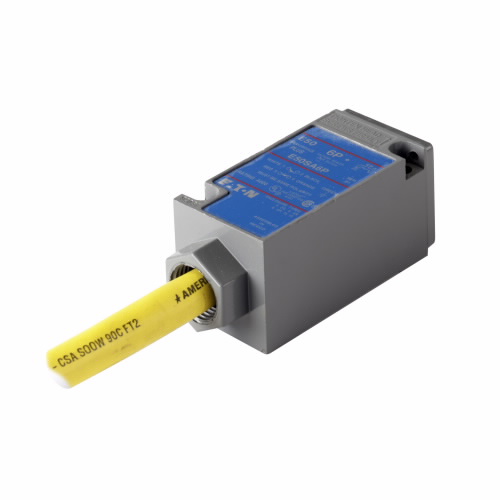

EATON E50SA6P Limit Switch Body/1NC, 10A, 600 VAC, E50 Limit Switch, Pre-Wired Cable
Item: BJ3ABHModel: E50SA6PCross Ref: 49C039
7 In Stock
Ships within 2 days via
10.00% off
€577.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Ac Contact Rating | 10A @ 240V |
| Body Configuration | Plug In |
| Body Style | EN50041 |
| Cable Length | 96 ft. |
| Cable Type | SOOW-A |
| Compatible With Series | E50 Series |
| Contact Configuration | 1 NC, 1 NO |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A At 240V AC, 1A At 250V DC |
| Dc Contact Rating | 1A @ 250V |
| Display Qty | 1 |
| Electrical Connection | 8 ft. Cable With 5 Wire Pigtail |
| Enclosure Material | Die Cast Zinc |
| Height | 2.46" |
| Indicating Light | No Indicating Light Included |
| Ip Rating | IP67, IP69K |
| Length | 3.63" |
| Manufacturer Warranty Length | 1 yr. |
| Material | Zinc |
| Max. Ac Amps | 10A |
| Max. Dc Amps | 1A |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -40°F |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Number Of Mounting Holes | 2 |
| Overall Depth | 3.63" |
| Overall Height | 2.46" |
| Overall Width | 1.54" |
| Series | E50 heavy duty factory sealed 6P+ Series |
| Warranty | 1 yr. |
| Width | 1.54" |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 6.25 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 3.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Contact Form | Ac Contact Rating | Height | Cable Length | Type | Dc Contact Rating | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50AR19 | IP67 | - | - | 3" | - | Assembly | - | - | €558.47 | |
|
E50SAL6P | IP67, IP69K | 1NO/1NC | 10A @ 240V | 2.46" | 96 ft. | - | 1A @ 250V | - | €810.68 | |
 |
E50ANL16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | €903.17 | |
 |
E50AR16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | €614.81 | |
|
E50AW16P12 | IP67, IP69K | - | - | 5.38" | 144 ft. | - | - | - | €844.26 | |
|
E50AW26P12 | IP67, IP69K | - | - | 5.38" | - | - | - | - | - | RFQ
|
|
E50BR16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | - | RFQ
|
