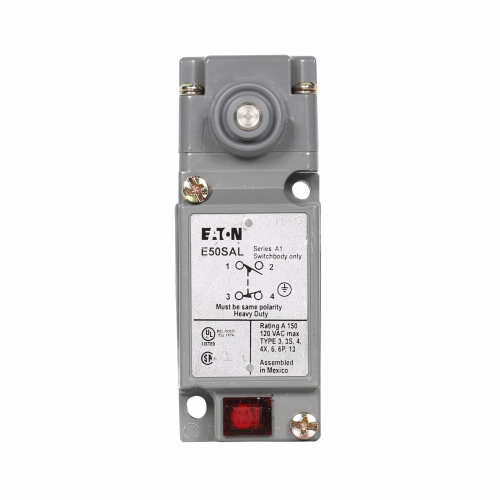

EATON E50ALS1 Plug-In Limit Switch, Assembled, Side Pushbutton Actuator, 1NO-1NC Contact, 1P
Get it by Tuesday, Dec 23
€625.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Actuator Type | Side Pushbutton |
| Connection | Screw Terminal |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 12V AC, 1A At 125V DC |
| Enclosure Material | Die Cast Zinc |
| Height | 2 1/4" |
| Ip Rating | IP67 |
| Led Indicator | LED Indicator |
| Length | 4.22" |
| Light Unit Voltage | 24-120V AC/DC |
| Max. Ac Amps | 10A Continuous |
| Max. Dc Amps | 1A |
| Max. Operating Temp. | 201°F |
| Min. Operating Temp. | 14°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Type | Assembly |
| Warranty | 1 yr. |
| Width | 1.54" |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 10.72 |
| Ship width (cm) | 3.91 |
| Country of Origin | US |
Product Variants
| Model | Ip Rating | Contact Form | Ac Contact Rating | Height | Cable Length | Type | Dc Contact Rating | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E50ALH1 | - | - | - | - | - | - | - | - | €698.12 | |
| E50AH1RFY1 | IP67 | - | - | 4.22" | - | - | - | - | €612.22 | |
| E50AL16P20 | IP67, IP69K | - | - | 4.67" | 240 ft. | - | - | - | €920.83 | |
| E50ALL16P | IP67, IP69K | - | - | 4.67" | 96 ft. | - | - | - | €872.25 | |
| E50ALH16P | IP67, IP69K | - | - | 4.67" | 96 ft. | - | - | - | €991.18 | |
| E50ALR16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | €890.91 | |
| E50ALM16P20 | IP67, IP69K | - | - | 4.67" | 240 ft. | - | - | - | €672.52 |
