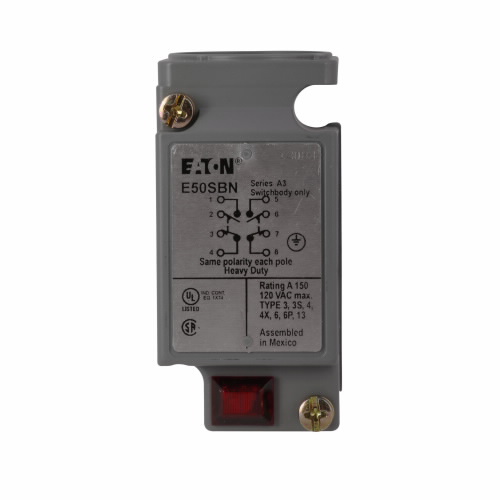

EATON E50SBN Limit Switch Body w/Neon Light, 2NO/2NC, 10A, 600 VAC, E50 Limit Switch
Item: BJ3ACQModel: E50SBNCross Ref: 49A978
7 In Stock
Ships within 2 days via
10.00% off
€493.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Ac Contact Rating | 10A @ 12V |
| Body Configuration | Plug In |
| Body Style | EN50041 |
| Compatible With Series | E50 Series |
| Contact Configuration | 2 NO, 2 NC |
| Contact Form | 2NO/2NC |
| Contact Rating | 10A At 12V AC, 1A At 125V DC |
| Dc Contact Rating | 1A @ 125V |
| Display Qty | 1 |
| Enclosure Material | Die Cast Zinc |
| Height | 1.73" |
| Indicating Light | Neon |
| Ip Rating | IP67 |
| Length | 3.14" |
| Light Unit Voltage | 120V AC |
| Manufacturer Warranty Length | 1 yr. |
| Material | Zinc |
| Max. Ac Amps | 10A |
| Max. Dc Amps | 1A |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -40°F |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Number Of Mounting Holes | 2 |
| Overall Depth | 3.14" |
| Overall Height | 1.73" |
| Overall Width | 1.54" |
| Warranty | 1 yr. |
| Width | 1.54" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.39 |
| Ship length (cm) | 7.98 |
| Ship width (cm) | 3.91 |
| Country of Origin | US |
Product Variants
| Model | Ip Rating | Contact Form | Ac Contact Rating | Height | Cable Length | Type | Dc Contact Rating | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E50ALH1 | - | - | - | - | - | - | - | - | €698.12 | |
| E50AH1RFY1 | IP67 | - | - | 4.22" | - | - | - | - | €612.22 | |
| E50AL16P20 | IP67, IP69K | - | - | 4.67" | 240 ft. | - | - | - | €920.83 | |
| E50ALL16P | IP67, IP69K | - | - | 4.67" | 96 ft. | - | - | - | €872.25 | |
| E50ALH16P | IP67, IP69K | - | - | 4.67" | 96 ft. | - | - | - | €991.18 | |
| E50ALR16P12 | IP67, IP69K | - | - | 4.67" | 144 ft. | - | - | - | €890.91 | |
| E50ALM16P20 | IP67, IP69K | - | - | 4.67" | 240 ft. | - | - | - | €672.52 |
