EATON CH Type Meter Breakers
Eaton CH-type meter breakers are used at service entrances that combine a single meter socket and load centre into a single enclosure. These meter breakers are suitable for mobile homes, rural service entrances and more.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | Height | Interrupt Rating | Feed Type | Bus Material | Box Size | Ground | Main Circuit Breaker | No. Of Circuits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CMBE32SUR200BTS | - | - | - | - | - | - | - | - | €12,198.25 | |

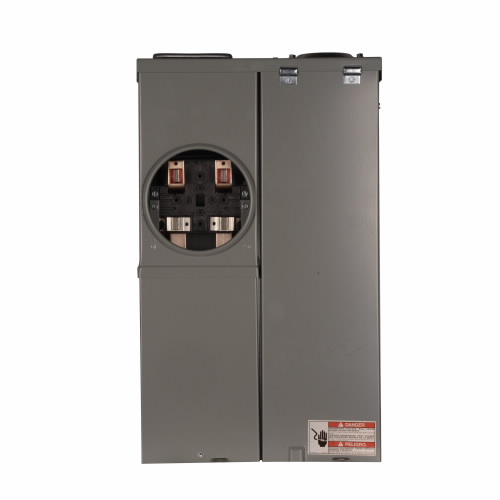

| B | CMBE24L125BTSC | 23 22/25" | 10 kAIC | Top/Bottom | Aluminum | A | #12 AWG to 1/0 AWG | - | 4 | €1,482.81 | |

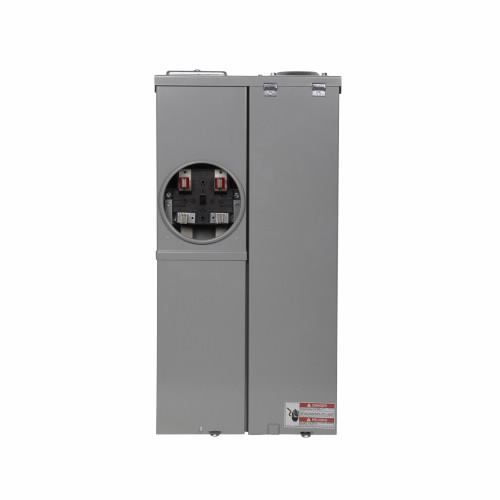

| C | CMBEB150BTS | 28.38" | 22 kAIC | Top/Bottom | Aluminum | - | #6 AWG to 250 kcmil | CSR2150N | - | €3,075.37 | |

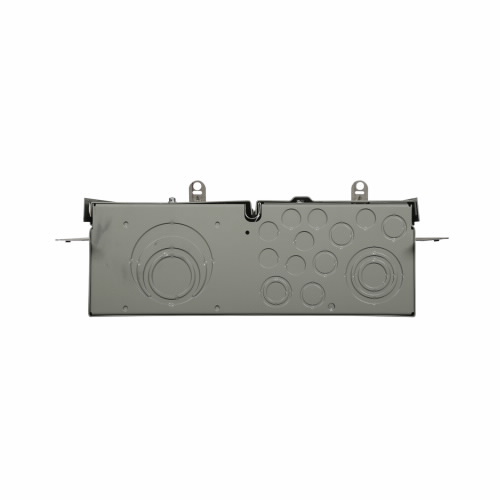

| D | CMBEB150BTF | 28.38" | 22 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | CSR2150N | - | €3,822.97 | |

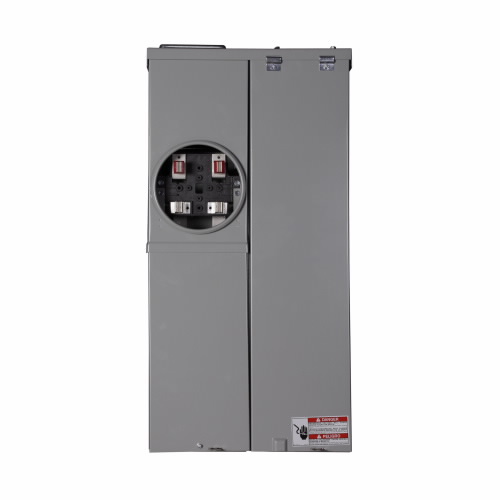

| E | CMBE24L200BTS | 28.38" | 10 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | - | 4 | €748.99 | |

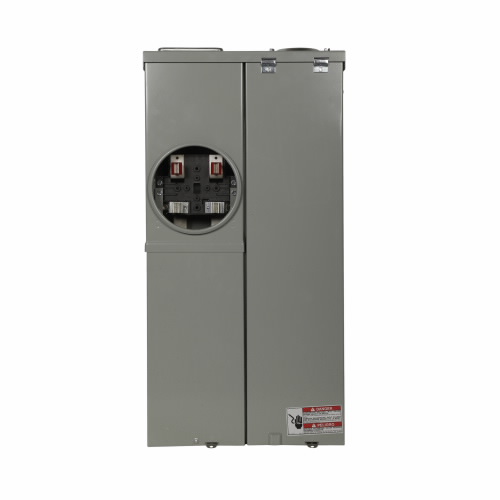

| F | CMBE88B150BTS | 28.38" | 22 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | CSR2150N | 8 | €3,075.37 | |
| G | CMBE88B200BTS | 28.38" | 22 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | CSR2200N | 8 | €2,611.40 | |

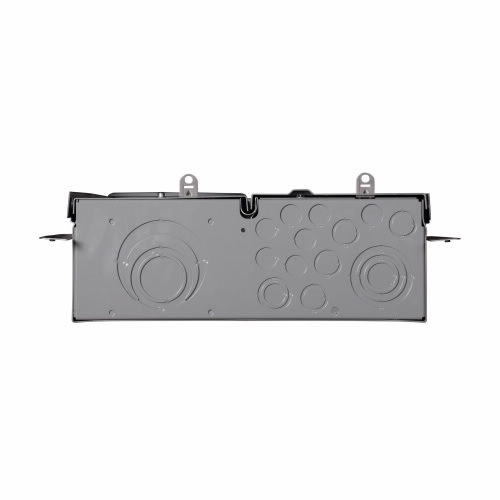

| H | CMBE88B150BTF | 28.38" | 22 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | CSR2150N | 8 | €4,357.18 | |

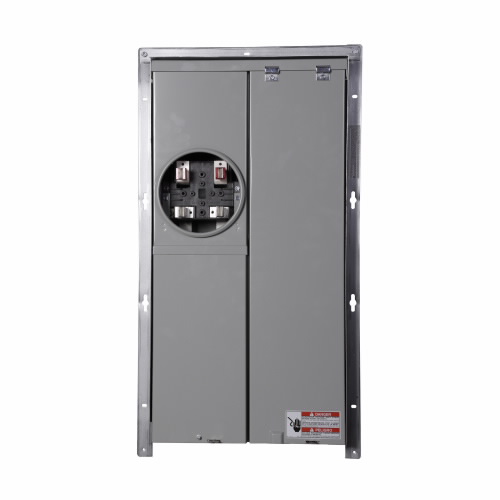

| I | CMBE88B200BTF | 28.38" | 10 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | CSR2200N | 8 | €2,611.40 | |

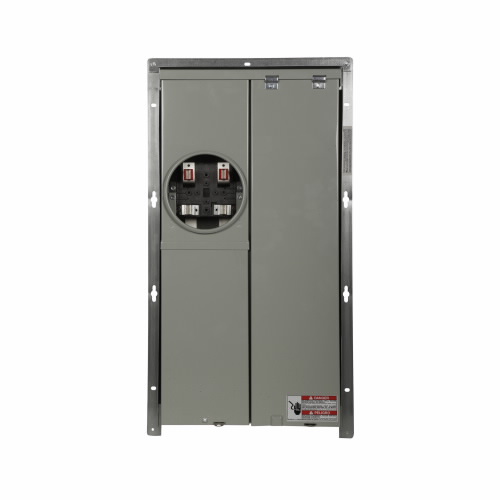

| J | CMBEB200BTF | 28.38" | 10 kAIC | Top/Bottom | Aluminum | A | #6 AWG to 250 kcmil | CSR2200N | - | €3,315.02 | |

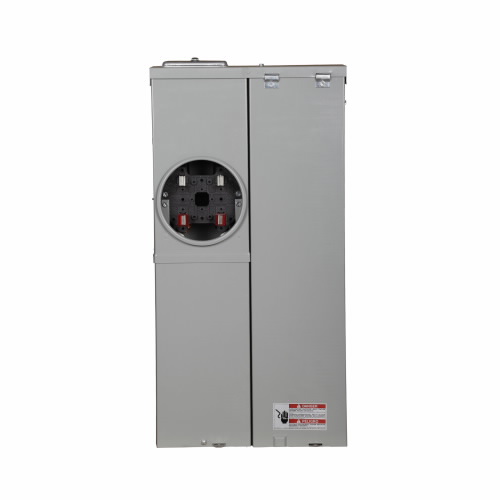

| K | CMBER88B200BTS | 28.38" | 10 kAIC | Top/Bottom | - | - | - | - | - | €4,068.43 | |
| A | CMBE4242B200TS | 34.38" | 10 kAIC | Overhead | Aluminum | D | #6 AWG to 250 kcmil | CSR2200N | 42 | €6,033.46 | |

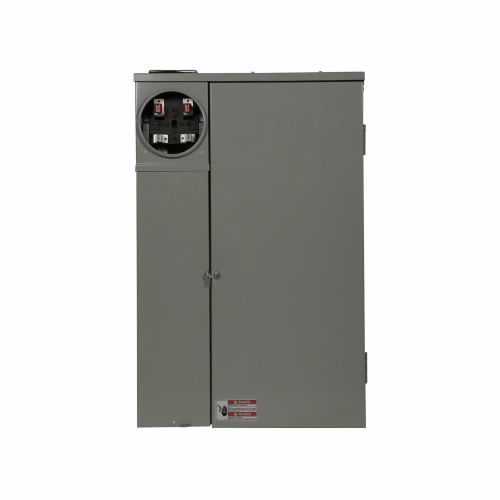

| L | CMBE4242B200BTS | 34.38" | 10 kAIC | Top/Bottom | Copper | D | #6 AWG to 250 kcmil | CSR2200N | 42 | €5,104.06 | |

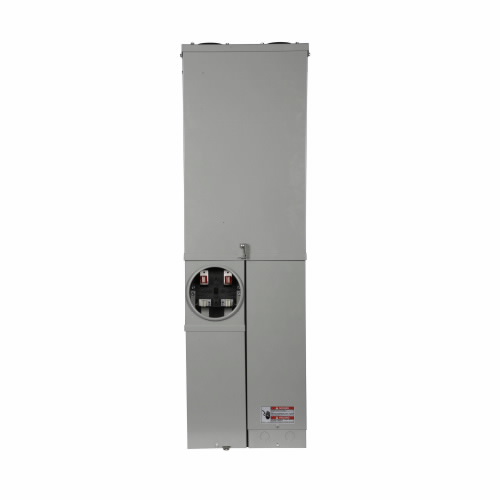

| M | CMBE3242B200BS | 46 22/25" | 10 kAIC | Bottom | Copper | B | - | CSR2200N | 42 | €4,610.13 | |
| A | CMBE3242B225BF | 46 22/25" | 10 kAIC | Bottom | Copper | B | #6 AWG to 250 kcmil | CSH2225N | 42 | €6,288.71 | |
| A | CMBE3242B225BS | 46 22/25" | 10 kAIC | Bottom | Aluminum | B | #6 AWG to 250 kcmil | CSR2225N | 42 | €6,288.71 | |
| A | CMBE3242B150BF | 46 22/25" | 22 kAIC | Bottom | Aluminum | B | #6 AWG to 250 kcmil | CSR2150N | 42 | €4,057.55 |
Features
- Eaton CH-type meter breakers have an interrupt rating of 10kIAC.
- Selected models have NEMA 3R-rated enclosures for protection against accidental contact.
- These single-phase meter breakers can handle up to 32 circuits at once.
Standards and Approvals
- EUSERC
- UL
Frequently Asked Questions
What is the bus material of these Eaton meter breakers?
Selected models have an aluminium bus.
What is the feed type of Eaton meter breakers?
Eaton meter breakers are available in top / bottom and overhead configurations.
What is the amperage rating of these meter breakers?
200
