ARCH CUTTING TOOLS Indexable Drills
Filter
A
B| Style | Model | Ansi Number | Inscribed Circle | Iso Number | Overall Length | Diameter | Drilling Depth (in.) | Depth X Dia. Ratio | Flute Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

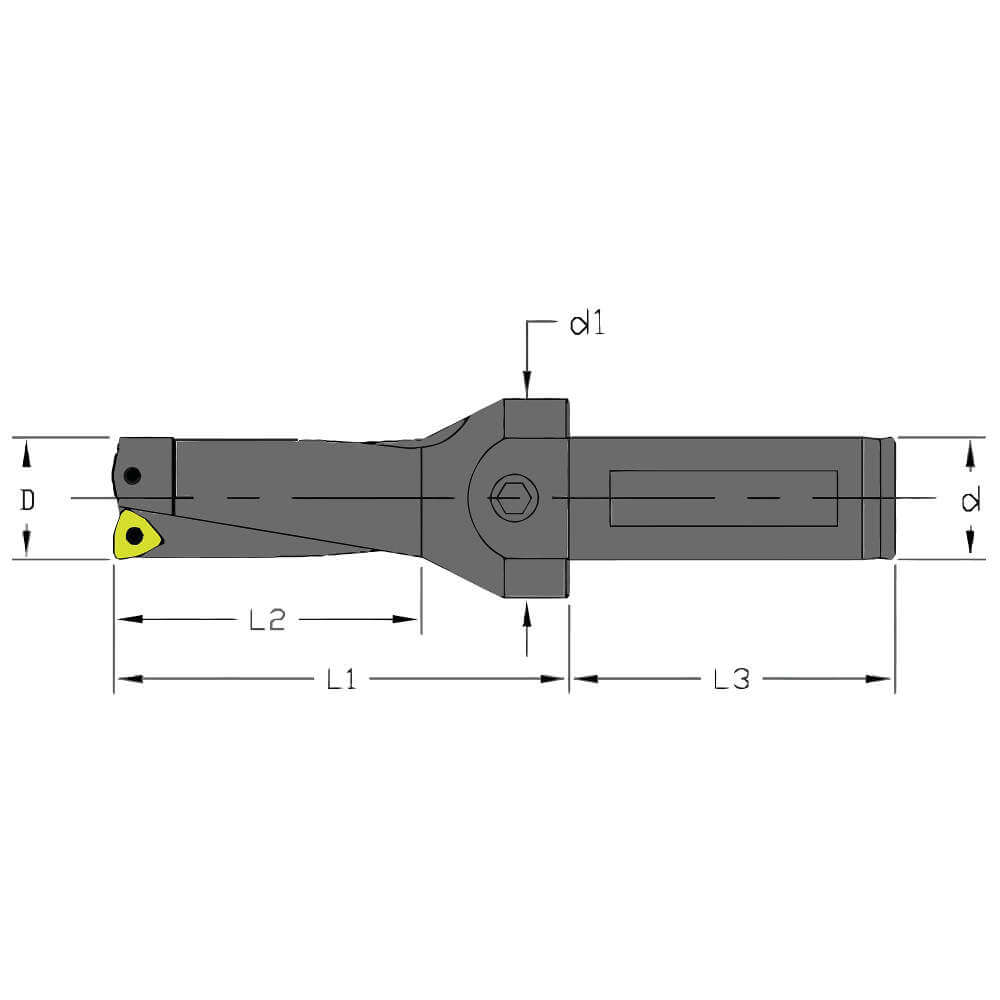

| A | UD-0437-2D-063 | UD-0437-2D-063 | 4" | UD-0437-2D-063 | 3.967" | 0.437" | 1 7/25" | 2.5xd | 1.28" | €278.38 | |
| A | UD-0437-2D-063-C | UD-0437-2D-063-C | 4" | UD-0437-2D-063-C | 3.967" | 0.437" | 1 7/25" | 2.5xd | 1.28" | €315.01 | |
| A | UD-0468-2D-063 | UD-0468-2D-063 | 4" | UD-0468-2D-063 | 3.967" | 0.468" | 1.31" | 2.5xd | 1.31" | €278.38 | |
| A | UD-0468-2D-063-C | UD-0468-2D-063-C | 4" | UD-0468-2D-063-C | 3.967" | 0.468" | 1.31" | 2.5xd | 1.31" | €315.01 | |
| A | UD-0500-2D-063 | UD-0500-2D-063 | 5" | UD-0500-2D-063 | 3.967" | 1/2" | 1.34" | 2.5xd | 1.34" | €278.38 | |
| A | UD-0500-2D-063-C | UD-0500-2D-063-C | 5" | UD-0500-2D-063-C | 3.967" | 1/2" | 1.34" | 2.5xd | 1.34" | €315.01 | |
| A | UD-0531-2D-063 | UD-0531-2D-063 | 5" | UD-0531-2D-063 | 3.967" | 0.531" | 1.37" | 2.5xd | 1.37" | €278.38 | |
| A | UD-0531-2D-063-C | UD-0531-2D-063-C | 5" | UD-0531-2D-063-C | 3.967" | 0.531" | 1.37" | 2.5xd | 1.37" | €315.01 | |
| A | UD-0562-2D-063 | UD-0562-2D-063 | 5" | UD-0562-2D-063 | 3.967" | 0.562" | 1 2/5" | 2.5xd | 1.4" | €266.58 | |
| A | UD-0562-2D-063-C | UD-0562-2D-063-C | 5" | UD-0562-2D-063-C | 3.967" | 0.562" | 1 2/5" | 2.5xd | 1.4" | €315.01 | |
| A | UD-0593-2D-063 | UD-0593-2D-063 | 5" | UD-0593-2D-063 | 3.967" | 0.593" | 1.43" | 2.5xd | 1.43" | €278.38 | |
| A | UD-0593-2D-063-C | UD-0593-2D-063-C | 5" | UD-0593-2D-063-C | 3.967" | 0.593" | 1.43" | 2.5xd | 1.43" | €295.31 | |
| A | UD-0625-2D-063 | UD-0625-2D-063 | 6" | UD-0625-2D-063 | 3.967" | 0.625" | 1 3/8" | 2xd | 1 3/8" | €278.38 | |
| A | UD-0625-2D-063-C | UD-0625-2D-063-C | 6" | UD-0625-2D-063-C | 3.967" | 0.625" | 1 3/8" | 2xd | 1 3/8" | €315.01 | |

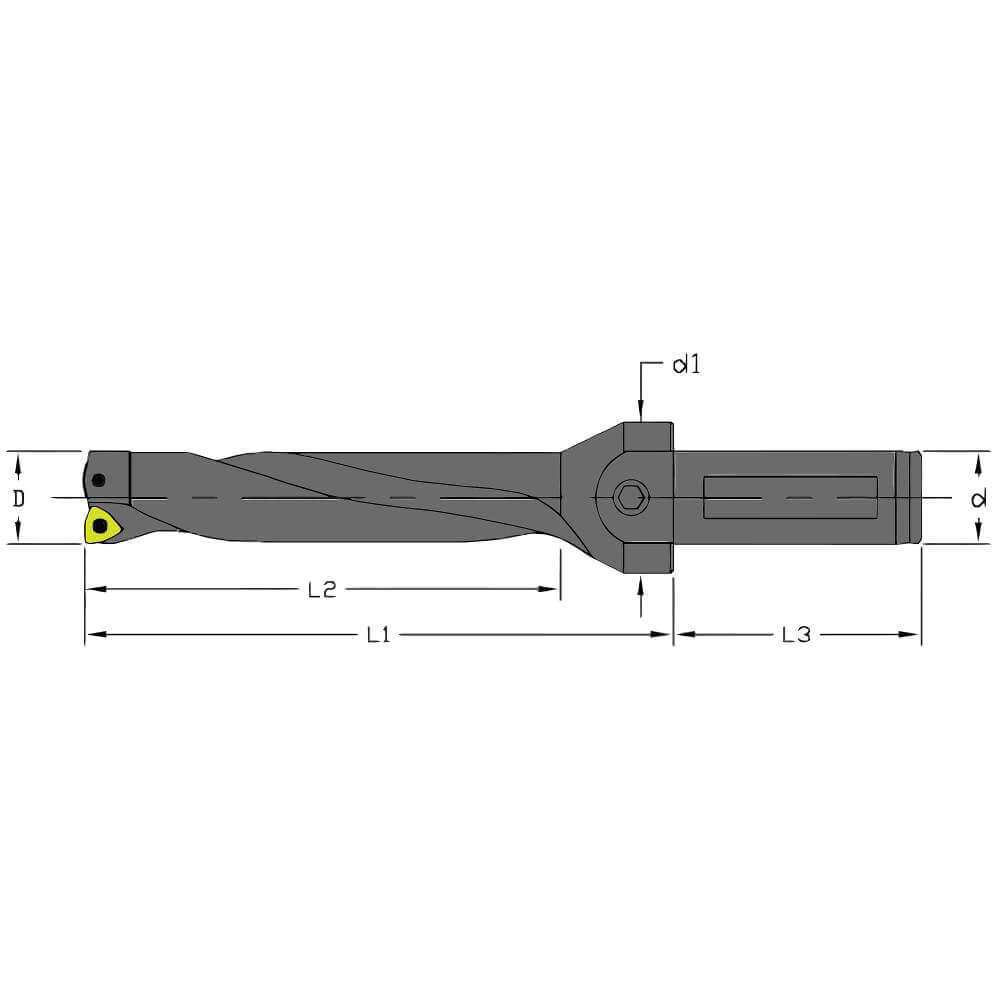

| B | UD-0625-4D-063 | UD-0625-4D-063 | 6" | UD-0625-4D-063 | 5.407" | 0.625" | 2.815" | 4Xd | 2.815" | €401.45 | |
| B | UD-0625-4D-063-C | UD-0625-4D-063-C | 6" | UD-0625-4D-063-C | 5.407" | 0.625" | 2.815" | 4Xd | 2.815" | €424.65 | |
| A | UD-0656-2D-063 | UD-0656-2D-063 | 6" | UD-0656-2D-063 | 3.967" | 0.656" | 1.406" | 2xd | 1.406" | €266.58 | |
| A | UD-0656-2D-063-C | UD-0656-2D-063-C | 6" | UD-0656-2D-063-C | 3.967" | 0.656" | 1.406" | 2xd | 1.406" | €295.31 | |
| B | UD-0656-4D-063 | UD-0656-4D-063 | 6" | UD-0656-4D-063 | 5.407" | 0.656" | 2.847" | 4Xd | 2.847" | €384.43 | |
| B | UD-0656-4D-063-C | UD-0656-4D-063-C | 6" | UD-0656-4D-063-C | 5.407" | 0.656" | 2.847" | 4Xd | 2.847" | €424.65 | |
| A | UD-0687-2D-063 | UD-0687-2D-063 | 6" | UD-0687-2D-063 | 3.967" | 0.687" | 1.437" | 2xd | 1.437" | €278.38 | |
| A | UD-0687-2D-063-C | UD-0687-2D-063-C | 6" | UD-0687-2D-063-C | 3.967" | 0.687" | 1.437" | 2xd | 1.437" | €295.31 | |
| B | UD-0687-4D-063 | UD-0687-4D-063 | 6" | - | 5.407" | 0.687" | 2.878" | - | - | €384.43 | |
| B | UD-0687-4D-063-C | UD-0687-4D-063-C | 6" | UD-0687-4D-063-C | 5.407" | 0.687" | 2.878" | 4Xd | 2.878" | €424.65 | |
| A | UD-0719-2D-063 | UD-0719-2D-063 | 7" | UD-0719-2D-063 | 3.967" | 0.719" | 1.467" | 2xd | 1.467" | €278.38 | |
| A | UD-0719-2D-063-C | UD-0719-2D-063-C | 7" | UD-0719-2D-063-C | 3.967" | 0.719" | 1.467" | 2xd | 1.467" | €315.01 | |
| B | UD-0719-4D-063 | UD-0719-4D-063 | 7" | UD-0719-4D-063 | 5.407" | 0.719" | 2.911" | 4Xd | 2.911" | €401.45 | |
| B | UD-0719-4D-063-C | UD-0719-4D-063-C | 7" | UD-0719-4D-063-C | 5.407" | 0.719" | 2.911" | 4Xd | 2.911" | €452.99 | |
| A | UD-0750-2D-075 | UD-0750-2D-075 | 7" | UD-0750-2D-075 | 4.81" | 3/4" | 1.748" | 2xd | 1.748" | €308.62 | |
| A | UD-0750-2D-075-C | UD-0750-2D-075-C | 7" | UD-0750-2D-075-C | 4.28" | 3/4" | 1.748" | 2xd | 1.748" | €370.65 | |
| B | UD-0750-4D-075 | UD-0750-4D-075 | 7" | UD-0750-4D-075 | 6.763" | 3/4" | 3.698" | 4Xd | 3.698" | €443.81 | |
| B | UD-0750-4D-075-C | UD-0750-4D-075-C | 7" | UD-0750-4D-075-C | 6.763" | 3/4" | 3.698" | 4Xd | 3.698" | €531.22 | |
| A | UD-0781-2D-075 | UD-0781-2D-075 | 7" | UD-0781-2D-075 | 4.28" | 0.781" | 1.78" | 2xd | 1.78" | €308.62 | |
| A | UD-0781-2D-075-C | UD-0781-2D-075-C | 7" | UD-0781-2D-075-C | 4.28" | 0.781" | 1.78" | 2xd | 1.78" | €370.65 | |
| B | UD-0781-4D-075 | UD-0781-4D-075 | 7" | UD-0781-4D-075 | 6.763" | 0.781" | 3.729" | 4Xd | 3.729" | €443.81 | |
| B | UD-0781-4D-075-C | UD-0781-4D-075-C | 7" | UD-0781-4D-075-C | 6.763" | 0.781" | 3.729" | 4Xd | 3.729" | €531.22 | |
| A | UD-0812-2D-075 | UD-0812-2D-075 | 8" | UD-0812-2D-075 | 4.28" | 0.812" | 1.811" | 2xd | 1.811" | €295.54 | |
| A | UD-0812-2D-075-C | UD-0812-2D-075-C | 8" | UD-0812-2D-075-C | 4.28" | 0.812" | 1.811" | 2xd | 1.811" | €347.45 | |
| B | UD-0812-4D-075 | UD-0812-4D-075 | 8" | UD-0812-4D-075 | 6.763" | 0.812" | 3.761" | 4Xd | 3.761" | €425.00 | |
| B | UD-0812-4D-075-C | UD-0812-4D-075-C | 8" | UD-0812-4D-075-C | 6.763" | 0.812" | 3.761" | 4Xd | 3.761" | €497.98 | |
| A | UD-0844-2D-075 | UD-0844-2D-075 | 8" | UD-0844-2D-075 | 4.28" | 0.844" | 1.85" | 2xd | 1.85" | €295.54 | |
| A | UD-0844-2D-075-C | UD-0844-2D-075-C | 8" | UD-0844-2D-075-C | 4.28" | 0.844" | 1.85" | 2xd | 1.85" | €347.45 | |
| B | UD-0844-4D-075 | UD-0844-4D-075 | 8" | - | 6.763" | 0.844" | 3.792" | - | - | €425.00 | |
| B | UD-0844-4D-075-C | UD-0844-4D-075-C | 8" | UD-0844-4D-075-C | 6.763" | 0.844" | 3.792" | 4Xd | 3.792" | €497.98 | |
| A | UD-0875-2D-075 | UD-0875-2D-075 | 8" | UD-0875-2D-075 | 4.28" | 0.875" | 1.874" | 2xd | 1.874" | €308.62 | |
| A | UD-0875-2D-075-C | UD-0875-2D-075-C | 8" | UD-0875-2D-075-C | 4.28" | 0.875" | 1.874" | 2xd | 1.874" | €370.65 | |
| B | UD-0875-4D-075 | UD-0875-4D-075 | 8" | UD-0875-4D-075 | 6.763" | 0.875" | 3.824" | 4Xd | 3.824" | €443.81 | |
| B | UD-0875-4D-075-C | UD-0875-4D-075-C | 8" | UD-0875-4D-075-C | 6.763" | 0.875" | 3.824" | 4Xd | 3.824" | €531.22 | |
| A | UD-0906-2D-075 | UD-0906-2D-075 | 9" | UD-0906-2D-075 | 4.28" | 0.906" | 1.91" | 2xd | 1.91" | €308.62 | |
| A | UD-0906-2D-075-C | UD-0906-2D-075-C | 9" | UD-0906-2D-075-C | 4.28" | 0.906" | 1.91" | 2xd | 1.91" | €370.65 | |
| B | UD-0906-4D-075 | UD-0906-4D-075 | 9" | UD-0906-4D-075 | 6.763" | 0.906" | 3.855" | 4Xd | 3.855" | €443.81 | |
| B | UD-0906-4D-075-C | UD-0906-4D-075-C | 9" | UD-0906-4D-075-C | 6.763" | 0.906" | 3.855" | 4Xd | 3.855" | €531.22 | |
| A | UD-0937-2D-075 | UD-0937-2D-075 | 9" | - | 4.81" | 0.937" | 1.935" | - | - | €308.62 | |
| A | UD-0937-2D-075-C | UD-0937-2D-075-C | 9" | - | 4.81" | 0.937" | 1.935" | - | - | €370.65 | |
| B | UD-0937-4D-075 | UD-0937-4D-075 | 9" | UD-0937-4D-075 | 6.763" | 0.937" | 3.885" | 4Xd | 3.885" | €443.81 | |
| B | UD-0937-4D-075-C | UD-0937-4D-075-C | 9" | UD-0937-4D-075-C | 6.763" | 0.937" | 3.885" | 4Xd | 3.885" | €531.22 | |
| A | UD-0968-2D-075 | UD-0968-2D-075 | 9" | UD-0968-2D-075 | 4.28" | 0.968" | 1.97" | 2xd | 1.97" | €308.62 | |
| A | UD-0968-2D-075-C | UD-0968-2D-075-C | 9" | - | 4.81" | 0.968" | 1.97" | - | - | €347.45 | |
| B | UD-0968-4D-075 | UD-0968-4D-075 | 9" | UD-0968-4D-075 | 6.763" | 0.968" | 3.918" | 4Xd | 3.918" | €425.00 | |
| B | UD-0968-4D-075-C | UD-0968-4D-075-C | 9" | UD-0968-4D-075-C | 6.763" | 0.968" | 3.918" | 4Xd | 3.918" | €497.98 | |
| A | UD-1000-2D-100 | UD-1000-2D-100 | 10" | UD-1000-2D-100 | 5.61" | 1" | 2.345" | 2xd | 2.345" | €324.53 |
