IDEAL Wire Connectors

Filter

IDEAL -

Wire Connector

Style	Model	Color	Max. Voltage	Height	Type	Connector Type	Max. Wire Combination	For Conductor Material	Overall Width	Price	Pkg. Qty.
A	30-3629	Black	600V	0.86"	High Temp	73B	Min. 1 #18 & 1 #20 - Max. 2 #14	Copper	11/25"	€24.56	100
B	30-3628	Black	300V AC	0.7"	High Temp	72B	Min. 2 #22 - Max. 3 #16	Copper	0.39"	€20.89	100
C	30-3627	Black	300V AC	0.58"	High Temp	71B	Min. 2 #22 (Stranded) - Max. 2 #16	Copper	0.33"	€21.22	100
D	30-454	Blue	600V	1 1/2"	Twist-On	454	Min. 3 #12 - Max. 1 #6 & 2 #8	Copper	1 1/5"	€28.97	25
E	30-072	Blue	300V AC	-	Twist-On	72B	Min. 2 #22 - Max. 3 #16	Copper	0.39"	€20.95	100
F	30-342	Gray	600V	1.3"	Twist-On	342	Min. 3 #14 - Max. 2 #8 & 2 #12	Copper	1"	€43.07	50
G	30-071	Gray	300V AC	0.58"	Twist-On	71B	Min. 2 #22 (Standard) - Max. 2 #16	-	-	€21.05	100
H	30-092	Green	600V	-	Greenie Grounding Connector	92	Min. 2 #14 - Max. 3 #12 & 1 #14	Copper	0.91"	€55.48	100
I	30-073J	Orange	600V	0.86"	Twist-On	73B	Min. 1 #18 & 1 #20 - Max. 2 #14	-	-	€63.35	300
J	30-073	Orange	600V	0.86"	Twist-On	73B	Min. 1 #18 & 1 #20 - Max. 2 #14	Copper	11/25"	€24.39	100
K	30-165	Purple	600V	1.69"	Twister Aluminum To Copper	65	Min. 2 #18 - Max. 4 #10	Aluminum, Copper	0.81"	€209.51	25
L	30-452	Red	600V	1.23"	Twist-On	452	Min. 2 #18 - Max. 4 #10	Copper	23/25"	€47.89	100
M	30-076	Red	600V	1.06"	Twist-On	76B	Min. 2 #14 & Max. 4 #12	Copper	0.59"	€40.86	100
N	30-076J	Red	600V	1.06"	Twist-On	76B	Min. 2 #14 & Max. 4 #12	Copper	0.59"	€56.29	150
O	30-452J	Red	600V	1.23"	Twist-On	452	Min. 2 #18 - Max. 4 #10	Copper	23/25"	€113.36	300
P	30-244J	Red, Tan	600V	-	Contoured Wing	344	Min. 2 #18 - Max. 4 #10	Copper	0.94"	€94.57	250
Q	30-241J	Tan	600V	1 3/25"	Twist-On	341	Min. 3 #22 - Max. 3 #10	-	-	€55.43	150
R	30-451	Yellow	600V	1.06"	Twist-On	451	Min. 2 #18 - Max. 3 #12	Copper	0.69"	€34.78	100
S	30-074J	Yellow	600V	0.95"	Twist-On	74B	Min. 2 #18 - Max. 4 #14 & 1 #18	Copper	0.55"	€39.83	175
T	30-451J	Yellow	600V	1.01"	Twist-On	451	Min. 2 #18 - Max. 3 #12	Copper	0.69"	€65.65	225
U	30-074	Yellow	600V	0.95"	Twist-On	74B	Min. 2 #18 - Max. 4 #14 & 1 #18	Copper	0.55"	€26.92	100

IDEAL -

Wire Connector Crimp

Style	Model	Min. Wire Size	Max. Wire Combination	Min. Wire Combination	Max. Wire Size	Color	Insulation Material	Max. Voltage	Contact Material	Price	Pkg. Qty.
A	30-248G	-	(1) 12 AWG With (4) 14 AWG	(4) 16 AWG	-	Natural	Nylon	600V	-	€51.44	100
B	30-147	-	(1) 16 AWG With (1) 12 AWG	(1) 22 AWG With (1) 18 AWG	-	Natural	Nylon	600V	Steel	€236.65	1000
A	30-247G	-	(1) 16 AWG With (1) 12 AWG	(1) 22 AWG With (1) 18 AWG	-	Natural	Nylon	600V	-	€23.37	100
C	30-148	16 AWG	(1) 12 AWG With (4) 14 AWG	(4) 16 AWG	12 AWG	Natural	Nylon	600V	Steel	€784.07	1000
B	30-146	22 AWG	(5) 18 AWG	(2) 22 AWG	18 AWG	Natural	Nylon	600V	Steel	€274.85	1000

IDEAL -

In-line Connectors 2-port

Style	Model	Color	Height	Insulation Material	Max. Voltage	Min. Wire Size	Max. Wire Size	Strip Length	Contact Finish	Price	Pkg. Qty.
A	30-1042	Orange	0.41"	Polycarbonate	600V	20 AWG	12 AWG	1/2"	Tin	€41.95	100
A	30-1042J	Orange	0.41"	Polycarbonate	600V	20 AWG	12 AWG	1/2"	Tin	€135.07	300
A	30-1642	Orange	0.41"	Polycarbonate	600V	20 AWG	12 AWG	1/2"	Tin	€837.83	2500

IDEAL -

Grounding Tail With Fork Green

Style	Model	Color	Material	Sub Category	Accessory Type	Application	Included	For Product Type	Price	Pkg. Qty.
A	30-3184	Green	Copper	Grounding Accessories	-	-	-	-	€62.57	25
B	30-3385	Green	Copper	Grounding Accessories	Grounding Pigtail	Grounding Application	#10 Fork, #10 Ring	Fastening Ground Conductor	€132.14	50

IDEAL -

Grounding Tail 2-wire Green

Style	Model	Color	Material	Sub Category	Accessory Type	Application	Included	For Product Type	Price	Pkg. Qty.
A	30-3287	Green	Copper	Grounding Accessories	Grounding Pigtail	Grounding Application	#10 Fork, #10 Ring	Fastening Ground Conductor	€103.79	25
B	30-3288	Green	Copper	Grounding Accessories	-	-	-	-	€125.23	25

IDEAL -

Set Screw Mechanical Connector

Style	Model	Max. Voltage	Stud Size	Overall Width	Max. Operating Temp.	Material	Connector Type	Type	No. Of Conductors	Price	Pkg. Qty.
A	30-1222G	-	9/64"	1/2"	-	Brass	Set Screw	Set Screw	1	€14.13	10
B	30-1293G	-	0.188"	-	-	Brass	Set Screw	Set Screw	-	€17.91	10
C	30-210	300V	1/8"	0.81"	150°F	Brass	Set Screw	Set Screw	1	€193.80	100
D	30-222	600V	1/4"	17/25"	302°F	Brass	Set Screw	Set Screw	1	€346.53	100
E	30-1294G	600V	17/64"	0.69"	302°F	Brass	Set Screw	-	1	€21.74	10
D	30-211	600V	3/16"	0.81"	150°F	Brass	Set Screw	Set Screw	1	€288.42	100

IDEAL -

Push-In Connector

Style	Model	Color	Min. Wire Size	Height	Connector Type	For Conductor Material	Overall Width	Overall Height	Amps	Price	Pkg. Qty.

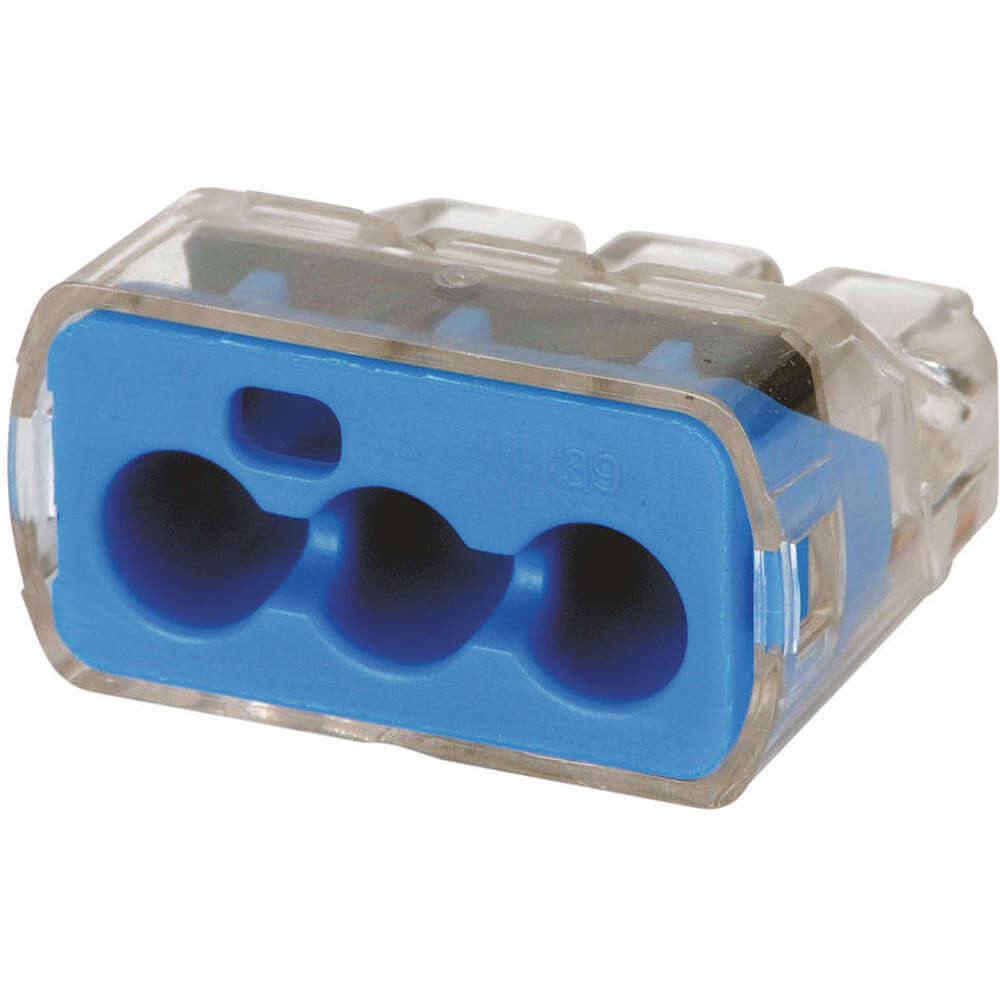

A	30-1039	Blue	12 AWG, 14 AWG	0.45"	3 Port	Copper, Tin Plated Copper	0.86"	0.45"	30A	€30.40	50
A	30-1039J	Blue	12 AWG, 14 AWG	-	3 Port	Copper, Tin Plated Copper	0.86"	0.45"	30A	€107.57	150
B	30-1033J	Orange	20 AWG, 16 AWG, 18 AWG	0.38"	3 Port	Tin Plated Copper	0.69"	0.38"	20A	€55.68	250
B	30-1033	Orange	20 AWG, 16 AWG, 18 AWG	0.38"	3 Port	Copper, Tin Plated Copper	0.69"	0.38"	20A	€22.58	100
B	30-1633	Orange	20 AWG, 16 AWG, 18 AWG	0.38"	3 Port	Copper, Tin Plated Copper	0.69"	0.38"	20A	€906.74	5000
C	30-1032J	Red	20 AWG, 16 AWG, 18 AWG	0.38"	2 Port	Tin Plated Copper	13/25"	0.38"	20A	€55.43	300
C	30-1032	Red	20 AWG, 16 AWG, 18 AWG	0.38"	2 Port	-	-	-	-	€19.28	100
C	30-1632	Red	20 AWG, 16 AWG, 18 AWG	0.38"	2 Port	Copper, Tin Plated Copper	13/25"	0.38"	20A	€832.56	5000
D	30-1034J	Yellow	20 AWG, 16 AWG, 18 AWG	0.38"	4 Port	Copper, Tin Plated Copper	0.82"	0.38"	20A	€52.94	200
D	30-1034	Yellow	20 AWG, 16 AWG, 18 AWG	0.38"	4 Port	Copper, Tin Plated Copper	0.82"	0.38"	20A	€24.45	100
D	30-1634	Yellow	20 AWG, 16 AWG, 18 AWG	0.38"	4 Port	Copper, Tin Plated Copper	0.82"	0.38"	20A	€1,028.03	5000

IDEAL -

Grounding Tails

Style	Model	Color	Material	Sub Category	Accessory Type	Application	For Product Type	Price	Pkg. Qty.
A	30-3399	Green	Copper	Grounding Accessories	Grounding Pigtail	Grounding Application	Fastening Ground Conductor	€142.85	100

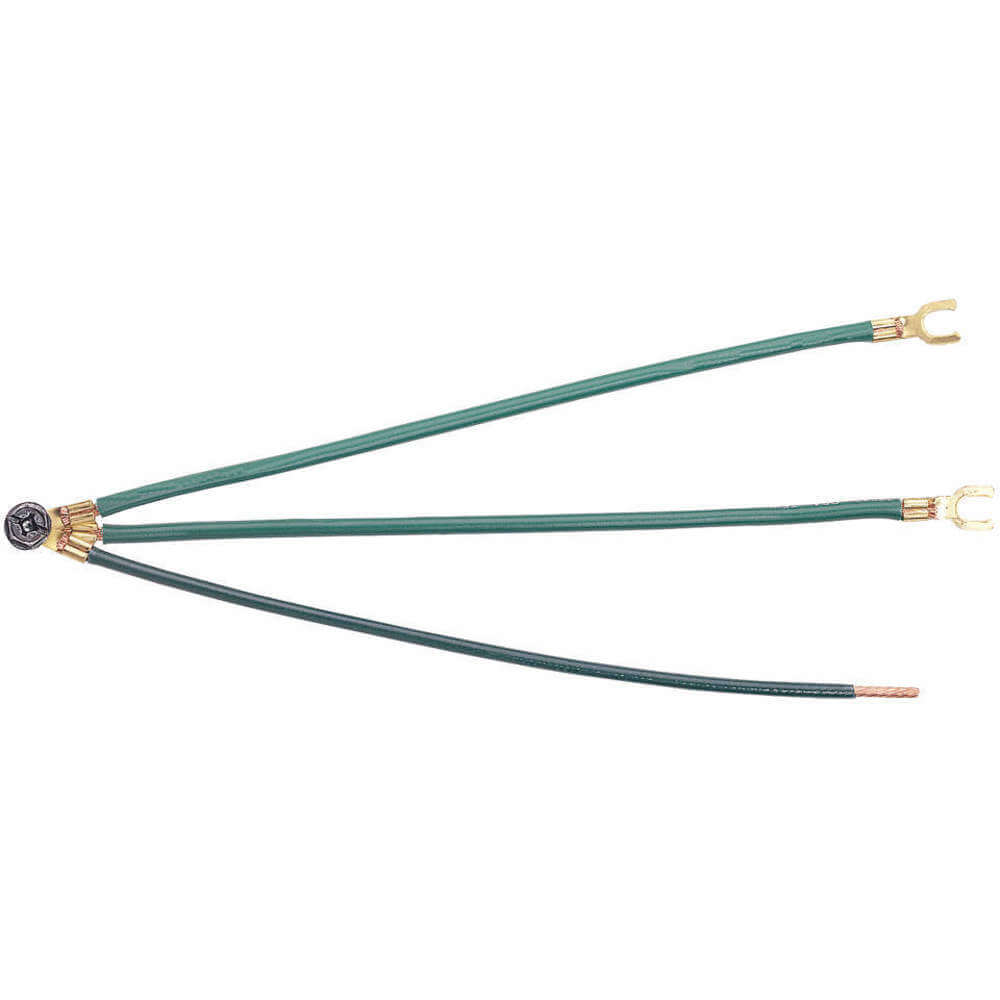

B	30-3289	Green	Copper	Grounding Accessories	Grounding Pigtail	Grounding Application	Fastening Ground Conductor	€156.52	25

IDEAL -

Insulation Displacement Wire Connectors

Style	Model	Color	No. Of Ports	Max. Insulation Dia.	Connector Type	Wire	Fill Material	Wire Type	Flame Retardant	Price	Pkg. Qty.
A	86-925	Red	3	0.066"	UR Splice	26 AWG to 19 AWG	Gel	Telecommunications	No	€63.27	100
B	85-925	Red	3	0.066"	UR Splice	26 AWG to 19 AWG	Gel	Telecommunications	No	€18.94	25
C	85-950	Yellow	2	0.06"	UY Splice	26 AWG to 22 AWG	Gel	Telecommunications	No	€21.38	25

IDEAL -

Lever Wire Connectors

Style	Model	No. Of Ports	Connector Type	Strip Length	Color	Height	Contact Material	Max. Voltage	For Conductor Material	Price	Pkg. Qty.

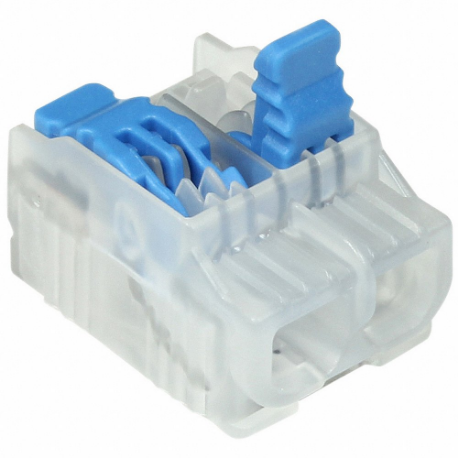

A	30-10L22	2	2 Port	7/16"	Blue	0.41"	Copper	600V	Copper	€94.68	150
A	30-50L22J	2	Port	0.438"	Blue	0.41"	Copper	600V	Copper	€300.50	500

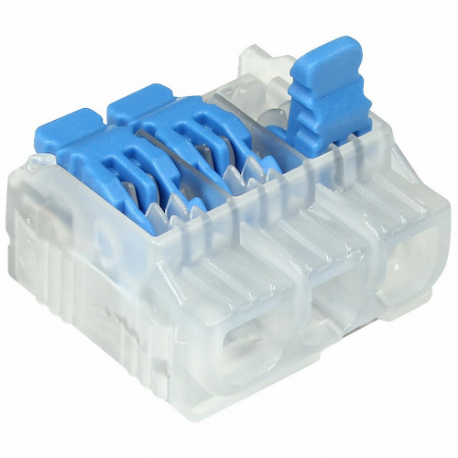

B	30-10L23	3	3 Port	-	Blue	0.41"	Copper	600V	Copper	€81.52	100
B	30-35L23J	3	3 Port	7/16"	Blue	0.41"	Copper	600V	Copper	€266.18	350

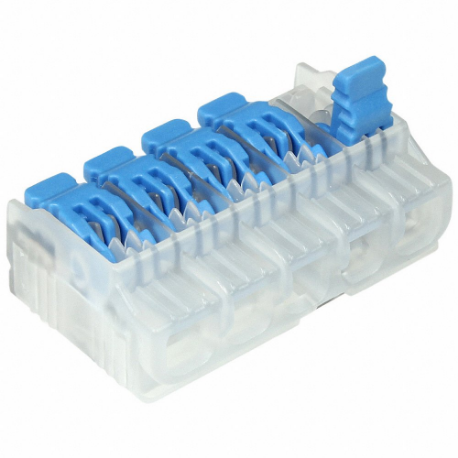

C	30-10L25	5	5 Port	7/16"	Blue	0.41"	Copper	600V	Copper	€94.68	75
C	30-20L25J	5	5 Port	7/16"	Blue	0.41"	Copper	600V	Copper	€250.90	200

IDEAL -

Push In Wire Connectors

Style	Model	Color	No. Of Ports	Connector Type	Contact Material	Max. Voltage	Strip Length	Contact Finish	For Conductor Material	Price	Pkg. Qty.
A	30-088J	Blue	6	6 Port	Copper	600V	1/2"	Tin	Copper	€81.27	100
B	30-087J	Gray	5	5 Port	Copper	600V	1/2"	Tin	Copper	-	150	RFQ

IDEAL -

Twist On Wire Connectors

Style	Model	Color	Height	Overall Width	Overall Height	Max. Wire Combination	Min. Wire Combination	Contact Material	Max. Voltage	Price	Pkg. Qty.
A	30-343	Blue, Orange	1.05"	14/25"	1.05"	4	(2) 22 AWG	Steel	600V	€33.90	100
A	30-643J	Blue, Orange	1.05"	14/25"	1.05"	4	(2) 22 AWG	Steel	600V	€131.01	500
B	30-641J	Tan	1.14"	18/25"	1.14"	4	(2) 18 AWG	Steel	600V	€205.29	500

IDEAL -

Underground Twist-On Wire Connectors

Style	Model	Color	Insulation Material	Max. Voltage	Wire Connector Style	Max. Wire Combination	Height	Contact Material	Min. Wire Size	Price	Pkg. Qty.
A	30-1160	Gray	Thermoplastic Polyester	600V	Standard	(1) 10 AWG With (2) 12 AWG	1.69"	Steel	20 AWG	€111.35	25
B	30-6064	Gray, Blue	PBT	600V	Wing	(3) 10 AWG	1.69"	Steel	20 AWG	€59.36	10

IDEAL -

Pigtail Connector

Style	Model	Color	Type	Material	Sub Category	Accessory Type	Application	For Product Type	Price	Pkg. Qty.
A	30-3471	Black	Pigtail With #10 Fork	Copper	Installation Accessories	Non Grounding Pigtail	Grounding Device Applications	Grounding Devices	€41.81	25
A	30-3480	Green	Pigtail With #10 Fork	Copper	Installation Accessories	Grounding Pigtail	Grounding Device Applications	Grounding Devices	€40.07	25
B	30-3392	Green	Captive Screw	Steel	Grounding Accessories	Grounding Pigtail	Fastening Ground Conductor	Fastening Ground Conductor	€64.14	50
C	30-3470	White	Pigtail With #10 Fork	Copper	Installation Accessories	Non Grounding Pigtail	Grounding Device Applications	Grounding Devices	€36.39	25

IDEAL -

Connector

Style	Model	Color	Height	Max. Voltage	Min. Wire Size	Max. Wire Size	Overall Width	Overall Height	Min. Single Wire Size	Price	Pkg. Qty.
A	30-1163P	Gray, Blue	1.59"	600V	16 AWG	6 AWG	1.06"	1.59"	16 AWG	€50.10	15
A	30-1263J	Gray, Blue	1.59"	600V	16 AWG	6 AWG	1.06"	1.59"	16 AWG	€137.98	50
B	30-1161P	Gray, Orange	0.91"	600V	22 AWG	14 AWG	0.66"	0.91"	22 AWG	€45.05	25
C	30-1261J	Gray, Orange	0.91"	600V	22 AWG	14 AWG	0.66"	0.91"	22 AWG	€226.35	150
D	30-1162P	Gray, Red	1.34"	600V	18 AWG	8 AWG	0.94"	1.34"	18 AWG	€56.43	20
E	30-1262J	Gray, Red	1.34"	600V AC	18 AWG	8 AWG	-	-	-	€189.58	100

IDEAL -

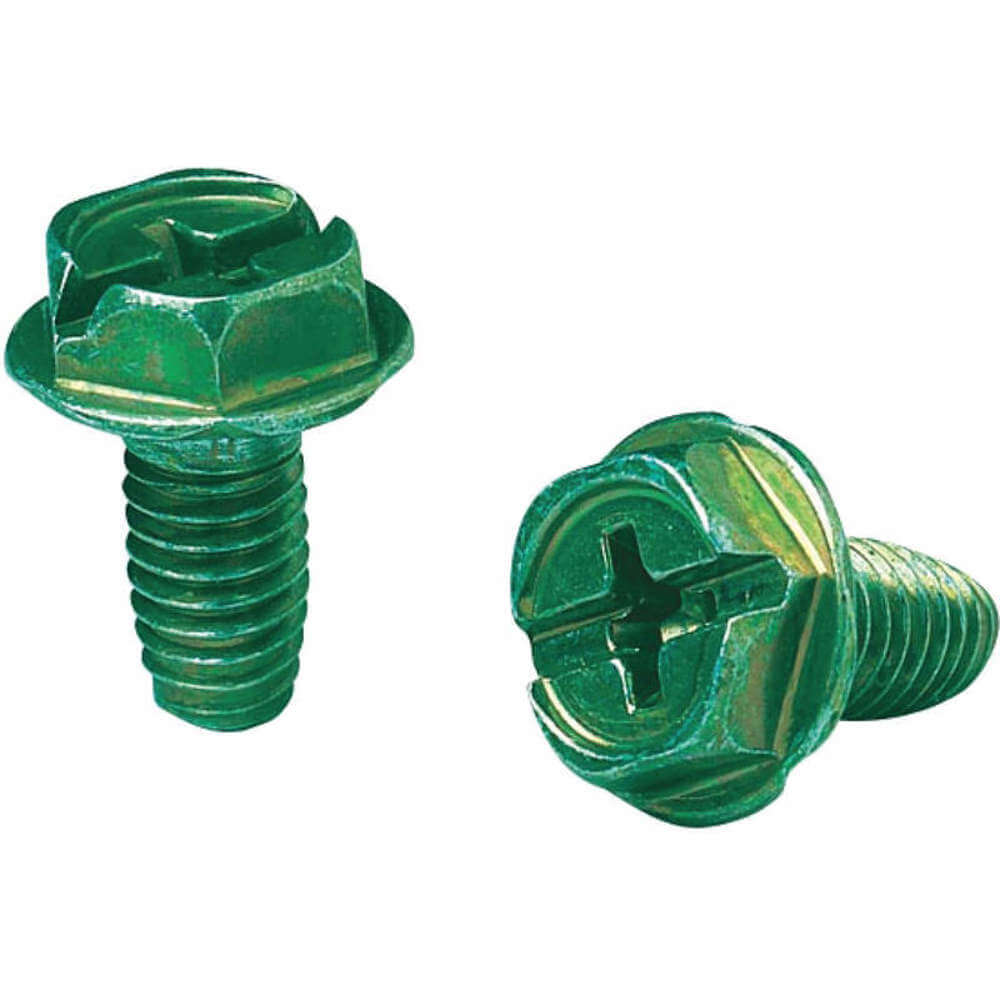

Ground Screw 10-32 Green

Model	Item	Price (ex. VAT)	Pkg. Qty.
30-3594G	AA2HEA	€26.67
100

IDEAL -

Wire Connector Socket Tool

Model	Item	Price (ex. VAT)	Pkg. Qty.
30-902	AD7LCU	€18.52
1

IDEAL -

Set Screw Holder

Model	Item	Price (ex. VAT)	Pkg. Qty.
K-2422	AF2WUD	€20.69
1
