IDEAL Connector
Filter
A
B
C
D
E| Style | Model | Max. Wire Combination | Min. Wire Combination | Overall Height | Overall Width | Strip Length | Max. Operating Temp. | Contact Material | For Conductor Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 30-1262J | - | - | - | - | - | - | - | - | 100 | €189.58 | |

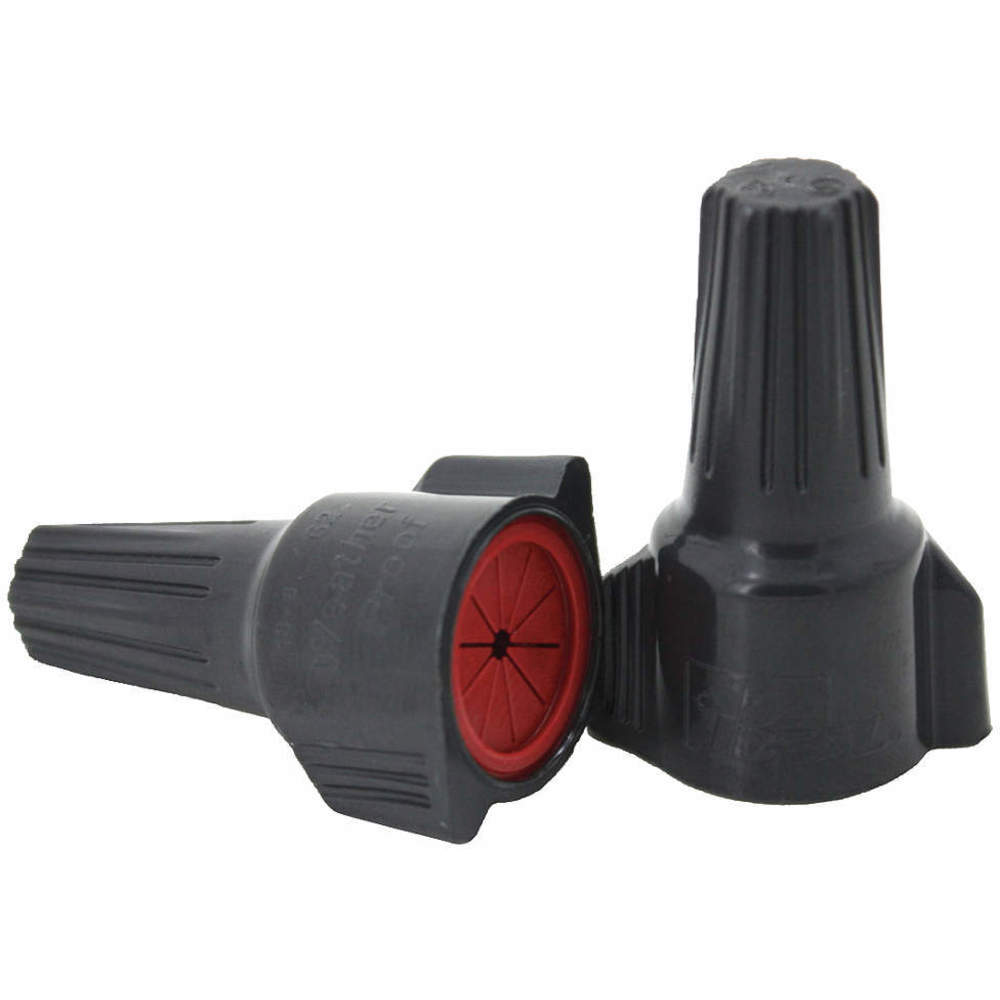

| B | 30-1162P | (2) 10 AWG With (1) 14 AWG | (3) 18 AWG | 1.34" | 0.94" | 1/2" | 221°F | Steel | Copper | 20 | €56.43 | |

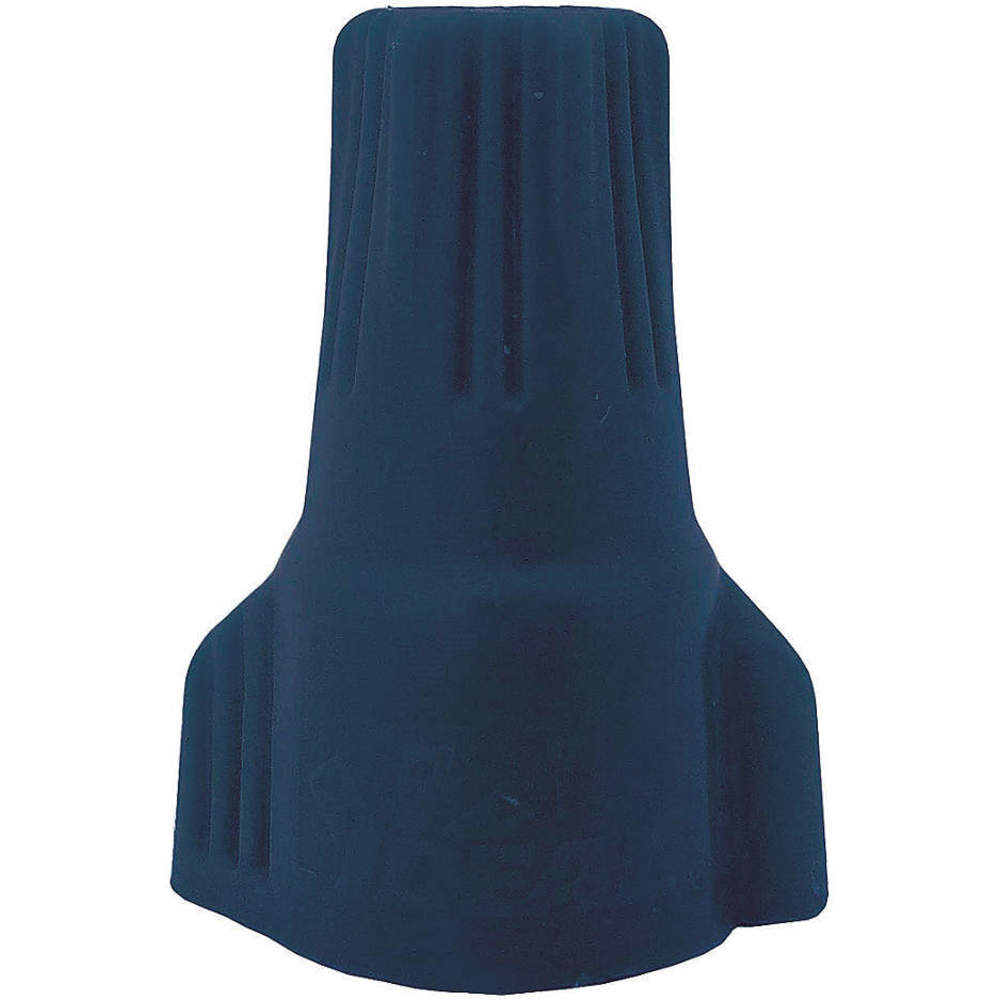

| C | 30-1261J | (2) 14 AWG | (2) 20 AWG | 0.91" | 0.66" | - | 221°F | Steel | Copper | 150 | €226.35 | |

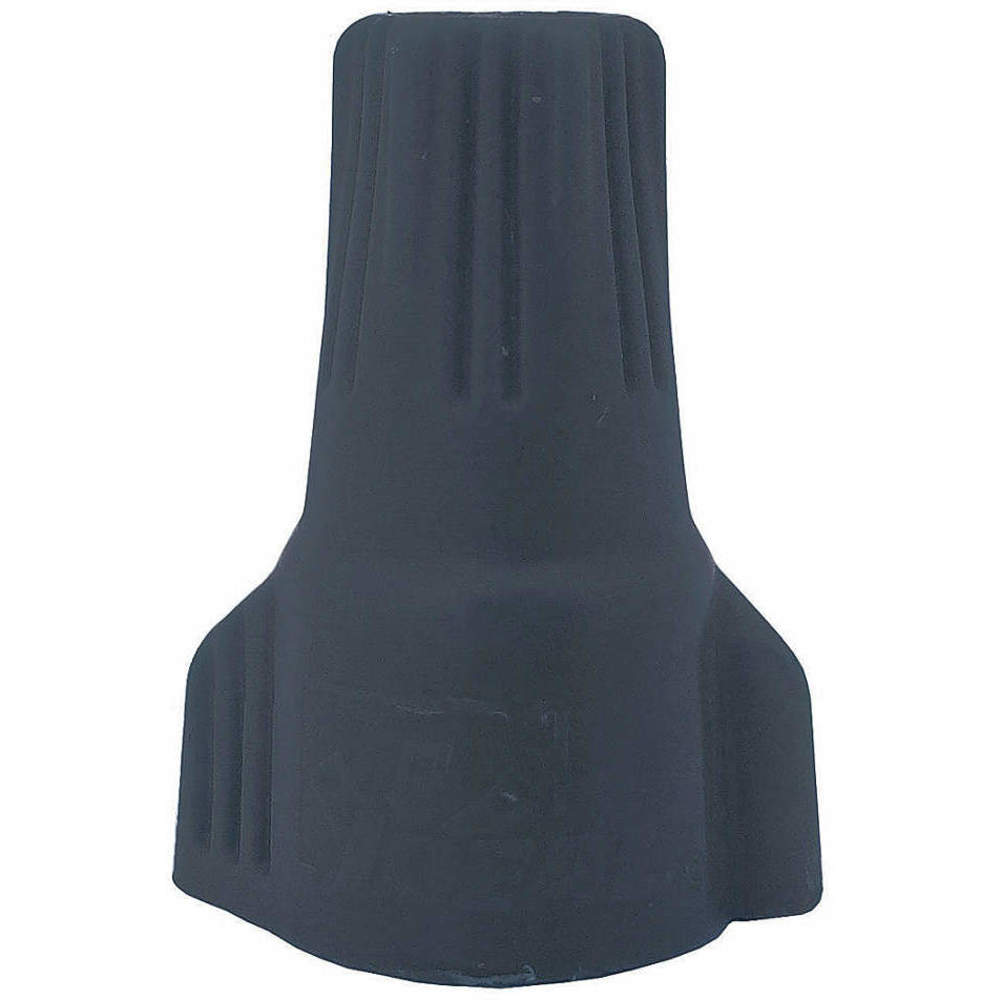

| D | 30-1161P | (2) 14 AWG | (2) 20 AWG | 0.91" | 0.66" | 3/8" | 221°F | Steel | Copper | 25 | €45.05 | |

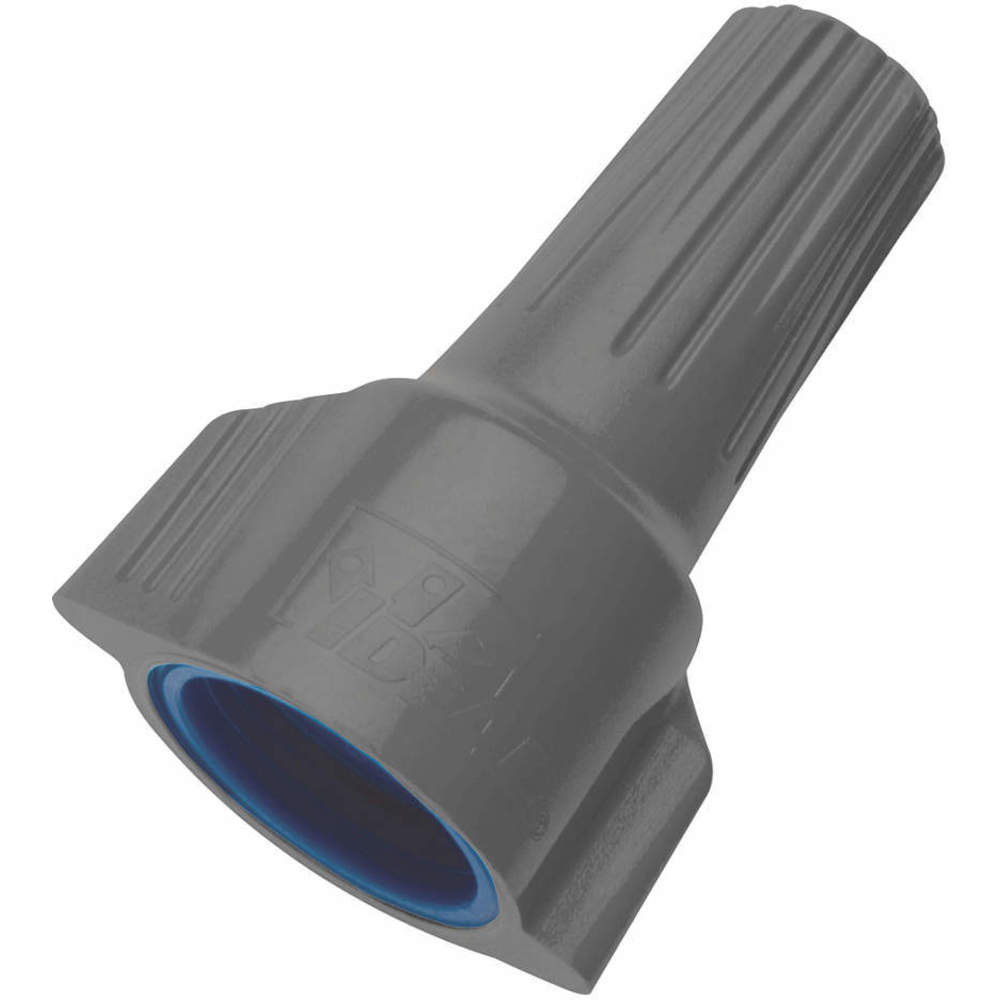

| E | 30-1163P | (5) 10 AWG | (3) 14 AWG | 1.59" | 1.06" | 5/8" | 221°F | Steel | Copper | 15 | €50.10 | |
| E | 30-1263J | (5) 10 AWG | (3) 14 AWG | 1.59" | 1.06" | - | 221°F | Steel | Copper | 50 | €137.98 |
